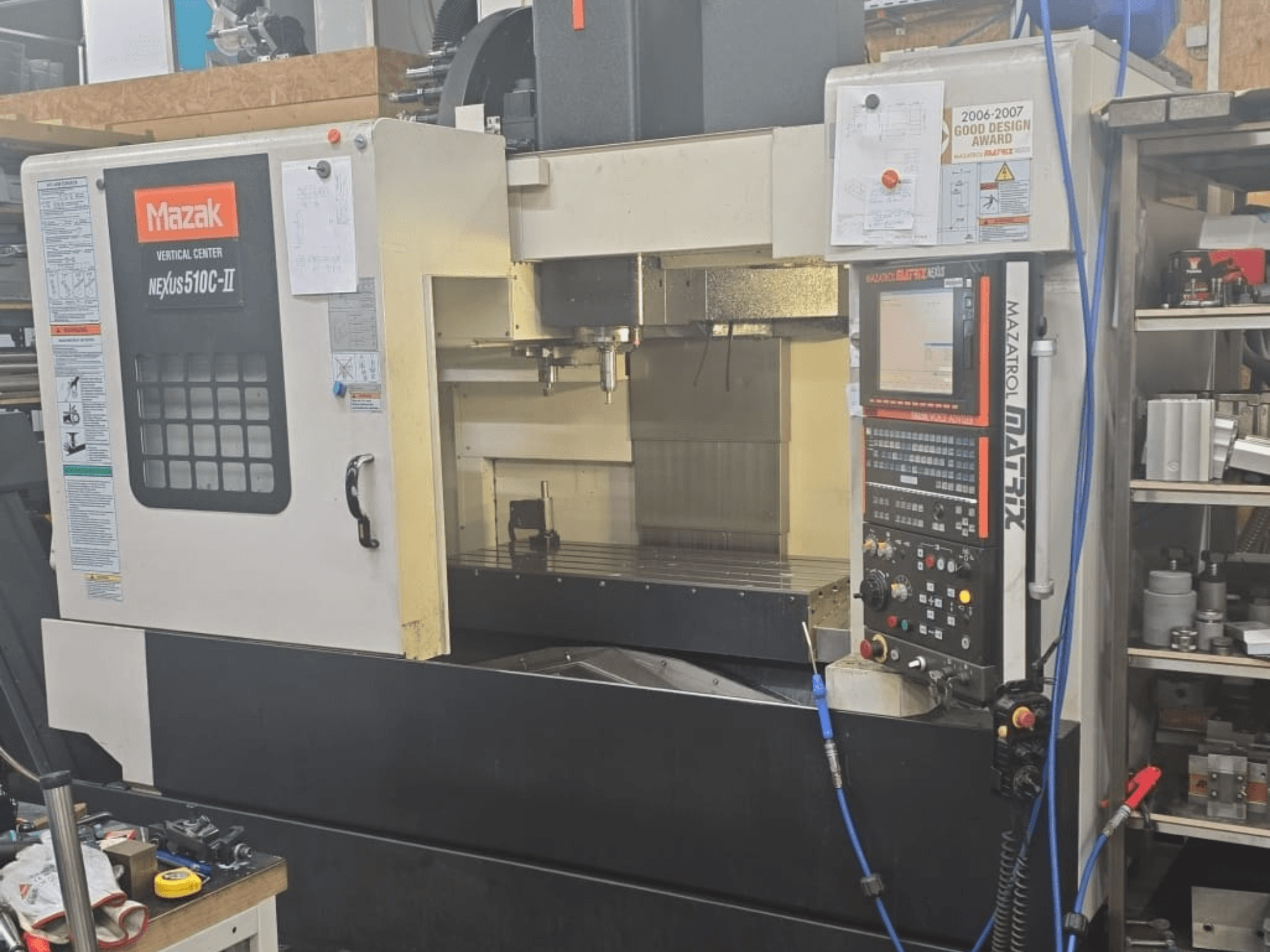

Mazak - VERTICAL CENTER NEXUS 510C-II DE-MIL-MAZ-2008-00005

- Total Operating Time: 17,659 hours (Recorded on 2026/02/19)

- Automatic Cutting Time: 6,129 hours

- Automatic Machining Time: 5,877 hours

- Operating Time / Power On Time: 26,902 hours

- Feed Rate Override Display: 50%

- Feed Speed Display: 150 mm/min

- Electrical Drives/Servo System: Mitsubishi Electric MDS series (400V system)

- Additional System Interfaces: Renishaw Machine Interface MI12 (integrated inside electrical cabinet for probe system)

- Safety Module: Mazak Safety Relay Module (QS-VMI100R-10)

- Installed Options (Software/NC Options Enabled):

* EIA / EIA 3D Comp. / EIA Herical Tap Cycle / EIA Pattern Cycle

* High Smoothing Control

* Spiral

* Rotation

* Geometric

* Scaling

* Ext-Data I/O

* Inverse Time

* Auto TLM

* Polar Coordinates Input

* Comparison Stop

* G54.1

* Sync. Mill Tapping / Sync. Main Sp. Tapping

* Inch/MM Convert

* G00 Slope Const.

* Scale Feed Back

* Variable 600 Sets

* IC Card Running

* Tilted Working Plane

* Re-Thread

* Pitch Error Comp.

* Tap Retraction

- Coolant/Hydraulic Accessories: External tank base with dual motor-pump units and filtration assembly (including a manual visual indicator pressure/bypass filter)

- Extraction/Exhaust Accessories: Fitted with a flexible corrugated overhead extraction duct (mist/smoke extractor hose connection)

- The machine is equipped with an IKZ and a 30-round magazine
