Mazak - VCS 530CHU-MIL-MAZ-2014-00002

Table

• Size (X): 1300 mm

• Size (Y): 550 mm

• T-slots: 5 pcs; width 18 mm; pitch 100 mm

Travels and distances

• Distance spindle nose to table: 150–660 mm

• Distance spindle to column: 586 mm

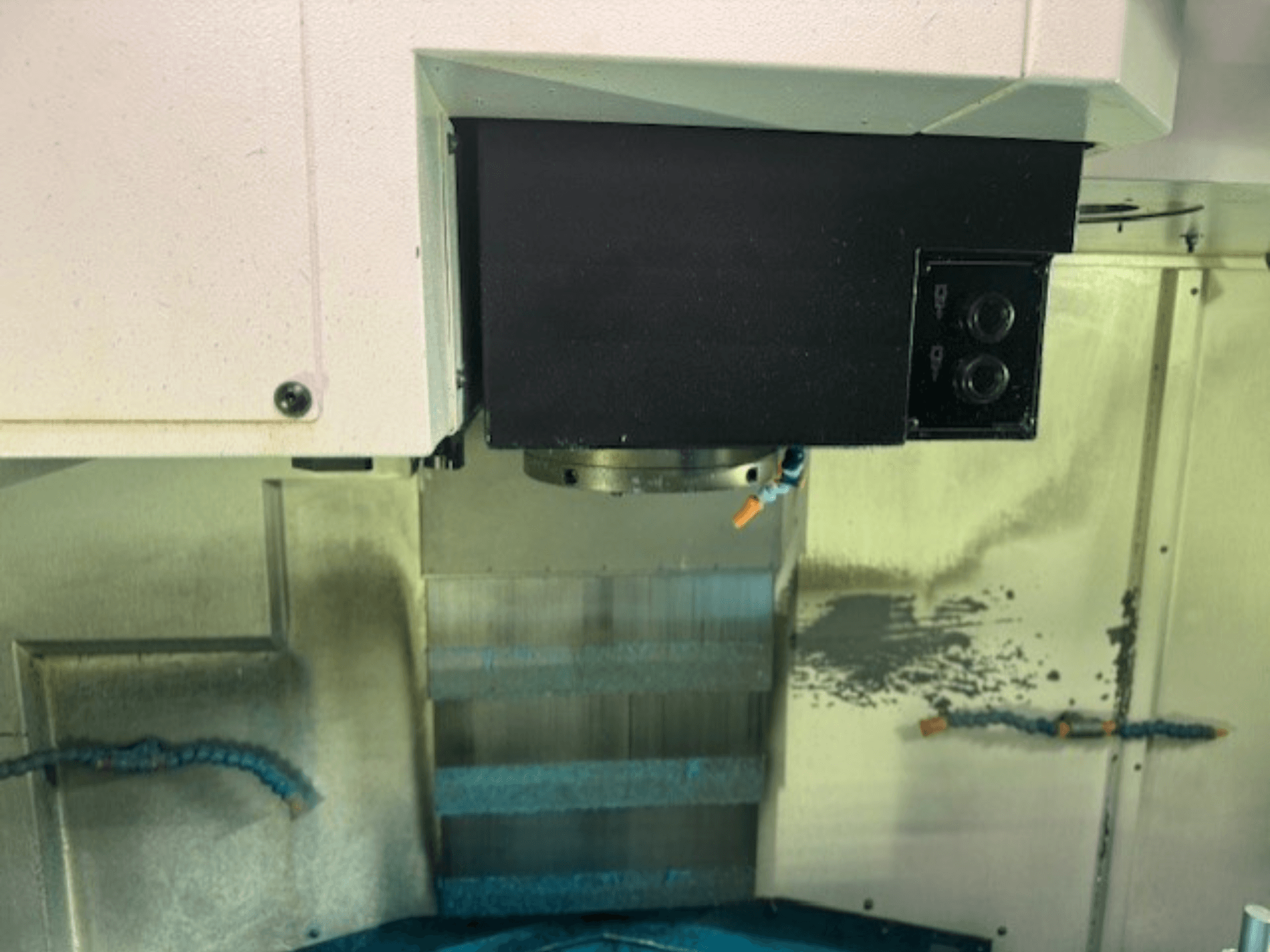

Spindle

• Taper: 7/24 taper No.40

• Motor power: 18.5 kW (5 min), 15 kW (10 min), 7.5 kW (continuous)

• Max torque: 95.5 Nm

Feed rates

• Rapid traverse (X/Y/Z): 42 m/min

• Rapid acceleration/deceleration: 0.6 G

• Max cutting feed (X/Y/Z): 8 m/min

Accuracy

• Positioning accuracy (X/Y/Z): 0.012 mm

• Repeatability (X/Y/Z): 0.008 mm

Tool magazine

• Capacity: 30 tools

• Tool interface: ISO 40

• Max tool diameter: 80 mm (125 mm with adjacent pockets empty)

• Max tool weight: 8 kg (combined 120 kg)

• Max tool length: 350 mm

• Tool change time (tool-to-tool): 2.8 s

Machine dimensions

• Width: 2950 mm

Utilities

• Power supply: 3-phase AC 400 V ±10%, 50–60 Hz

• Total/continuous power requirement: 29.96 kVA

• Compressed air: 5–9 bar; 200 l/min

• Coolant tank capacity: 250 liters
