Mazak - INTEGREX i-400 SGB-MIL-MAZ-2018-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Mazak INTEGREX i-400 S For Sale | gindumac.com

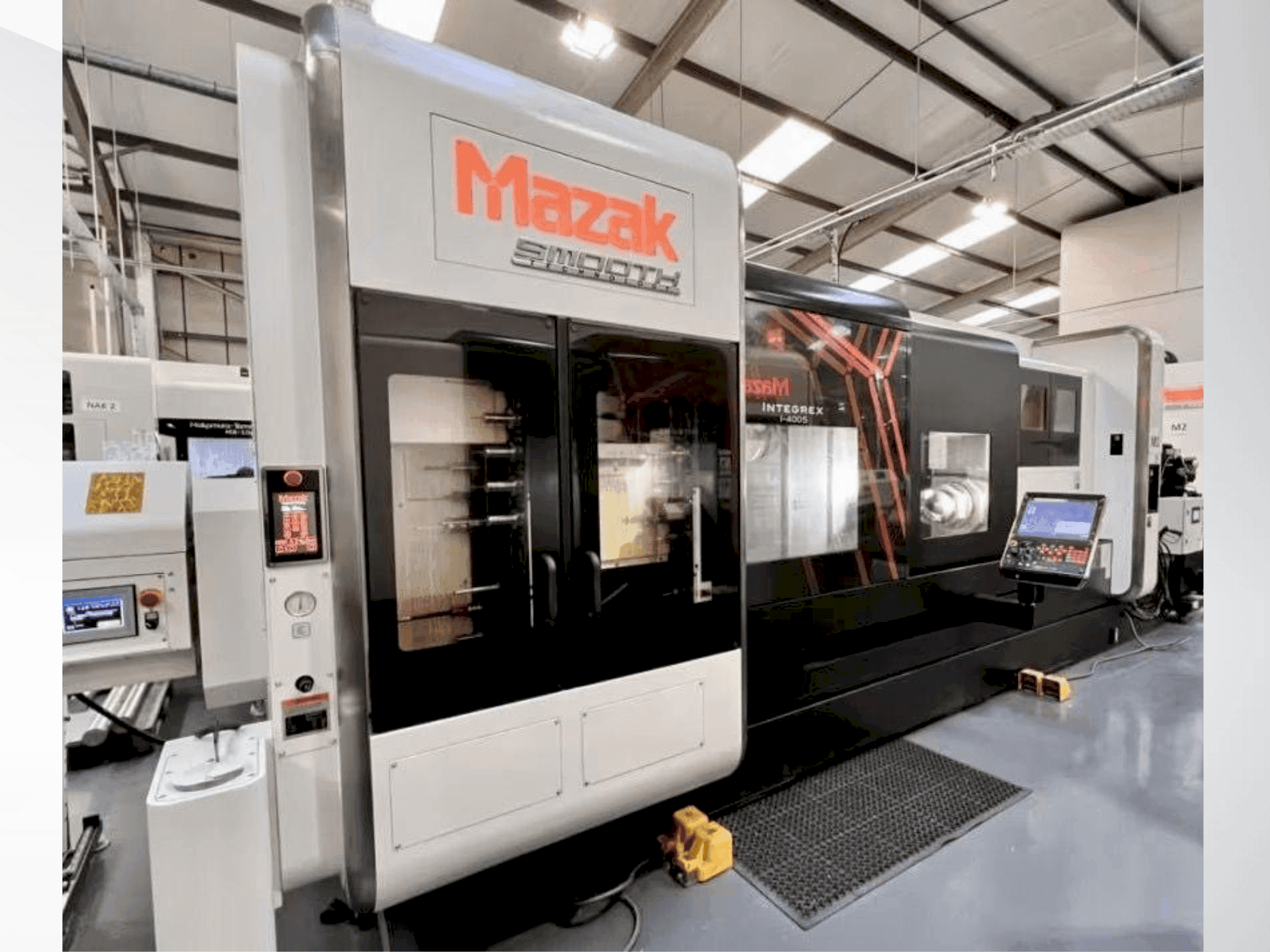

This 5-axis Mazak INTEGREX i-400 S was manufactured in 2018 and features advanced Mazatrol SMOOTH X Control and a full 5-axis capability. It offers a maximum machining diameter of ø658 mm and a length of 2,497 mm. Equipped with a 12" main spindle chuck and a rapid traverse rate up to 50 m/min on the X-axis. Ideal for complex and precise machining tasks. For more information about this universal machining center, please reach out to us.
Overview
- brand: Mazak
- year: 2018
- MODEL: INTEGREX i-400 S
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- control unit brand: MAZATROL
Technical Information - Mazak INTEGREX i-400 S
Control Unit
- Control Brand: MAZATROL
- Control Model: Mazatrol SMOOTH X
Movement
- B-axis Max: 210°
- B-axis Min: -30°
- Number of Axes: 5
- X-axis Travel: 615 mm
- Y-axis Travel: 260 mm
- Z-axis Travel: 2563 mm
Technical Specification
- Max. Tool Weight: 12 kg
- Max. Workpiece Diameter: 658 mm
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Hydrafeed MSV110 Barfeed
- Milling Spindle Type: Spindle turret with ATC
Machine Benefits
Qualitative Machine Benefits
- Turning tool shank height: 25 mm
- Boring bar shank diameter: 40 mm
- Tool storage capacity: 72 tools
- Precision control with mazatrol smooth x, high torque milling spindle for robust operations
- No tooling included
Technical Machine Benefits
- Max. Bar work capacity: ø102 mm
- Main spindle chuck size: 12"
- Main spindle nose: a2-8
- Main spindle bore: 112 mm
- Bearing id: 150 mm
- Second spindle hydraulic chuck: 10" through-hole chuck b-210a0815x
- Second spindle nose: a2-8
- Second spindle bore: 91 mm
- Bearing id: 130 mm
- Max. Milling spindle torque: 120 n:m
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
