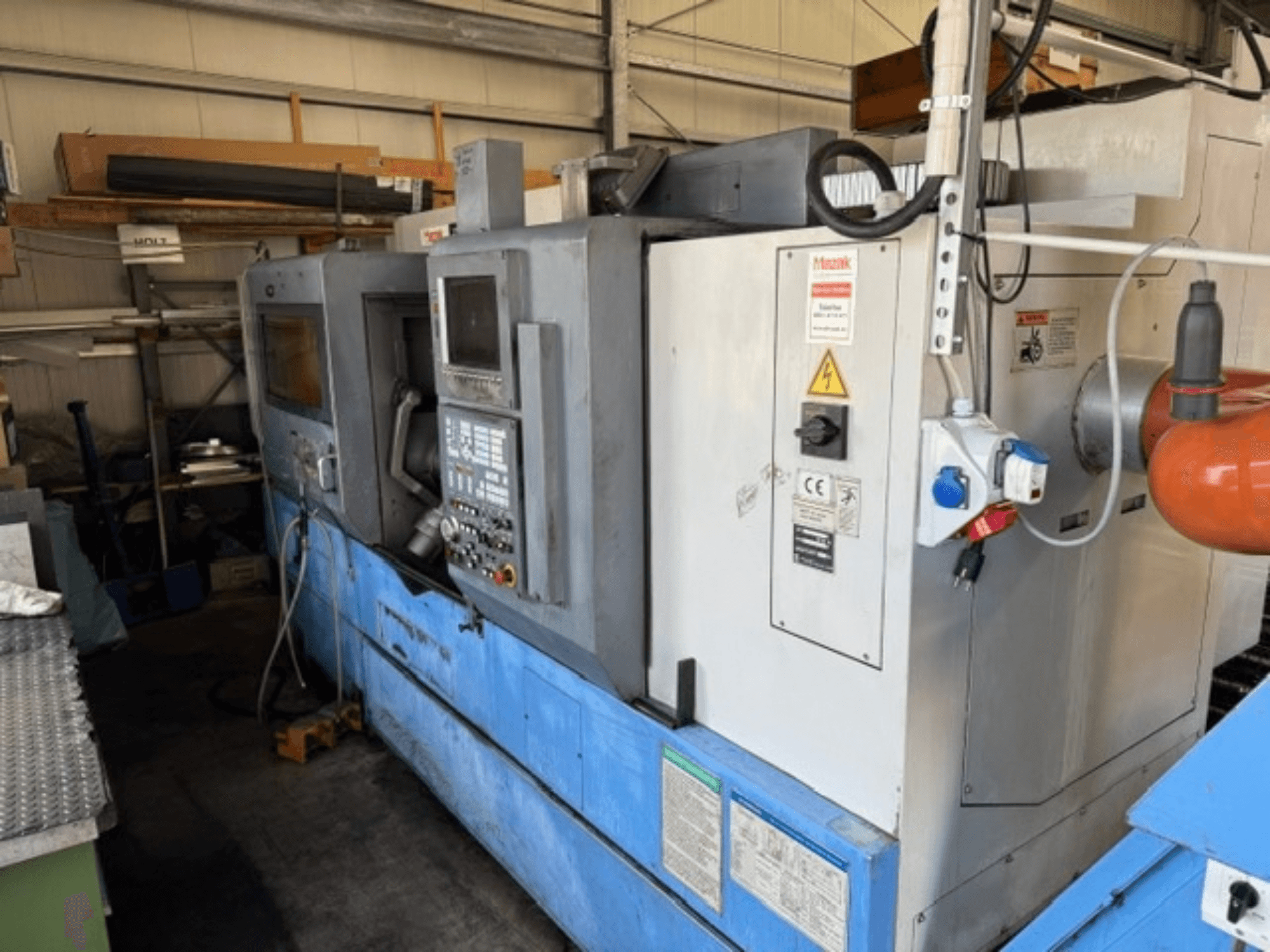

Mazak - SQT-30M * 1000DE-TUR-MAZ-1998-00001

- Working Hours: 116,213 hours

- Max. Swing Diameter: 560 mm

- Max. Swing Over Carriage: 500 mm

- Max. Turning Diameter: 410 mm

- Standard Turning Diameter: 336 mm

- Max. Turning Length: 989 mm

- Max. Bar Capacity (Diameter): 77 mm

- Main Spindle Speed Range: 35 - 3,300 rpm

- Main Spindle Motor Power: 26 kW / 22 kW (30 min / 100% continuous)

- Max. Spindle Torque: 637 Nm

- Spindle Nose: A2-8"

- Spindle Through-Hole: 88 mm

- Chuck Diameter: 304 mm

- C-Axis Indexing: 0° - 360° / 0.001°

- Turret Positions: 12

- Turning Tool Shank Size: 25 x 25 x 150 mm

- Boring Bar Shank Diameter Range: 8 / 10 / 12 / 16 / 25 / 32 / 40 / 50 mm

- Turret Indexing Time: approx. 2.2 s

- Driven Tools Motor Power: 7.5 kW

- Driven Tools Max. Torque: 96 Nm

- Driven Tools Speed Range: 90 - 1,500 rpm

- Driven Tools Drilling Capacity: 23 mm

- Driven Tools Tapping Capacity: M16 (H-type holder) / M12 (V-type holder)

- Driven Tools End Milling Capacity: 25 mm

- X-Axis Travel: 245 mm

- Z-Axis Travel: 1,035 mm

- X-Axis Rapid Traverse: 18 m/min

- Z-Axis Rapid Traverse: 24 m/min

- C-Axis Rapid Traverse: 100 rpm

- X/Z-Axis Feed Rate: 0 - 5,000 mm/min

- C-Axis Feed Rate: 1° - 2,000°/min

- Tailstock Quill Stroke: 130 mm

- Tailstock Quill Diameter: 100 mm

- Tailstock Taper: MK 4

- Tailstock Travel: 880 mm

- Coolant Tank Capacity: 250 l

- Coolant Pump Flow Rate: approx. 20 l/min

- Coolant Pump Pressure: 5 bar

- Power Capacity: 52 kVA

- Operating Voltage: 400 V / 50 Hz

- Pneumatic Pressure: 5 bar, 100 l/min

- Required Floor Space: approx. 7.7 m²

- Machine Weight: approx. 9,500 kg

- Additional Equipment & Accessories: Tool Eye (tool presetter), 3-jaw hydraulic chuck 304 mm with soft/hard jaws, chip/coolant guard enclosure, work light, synchronized tapping, driven tool holders (CAT40 3x vertical, 3x horizontal), boring bar holders, set of adjusting tools, foundation equipment
