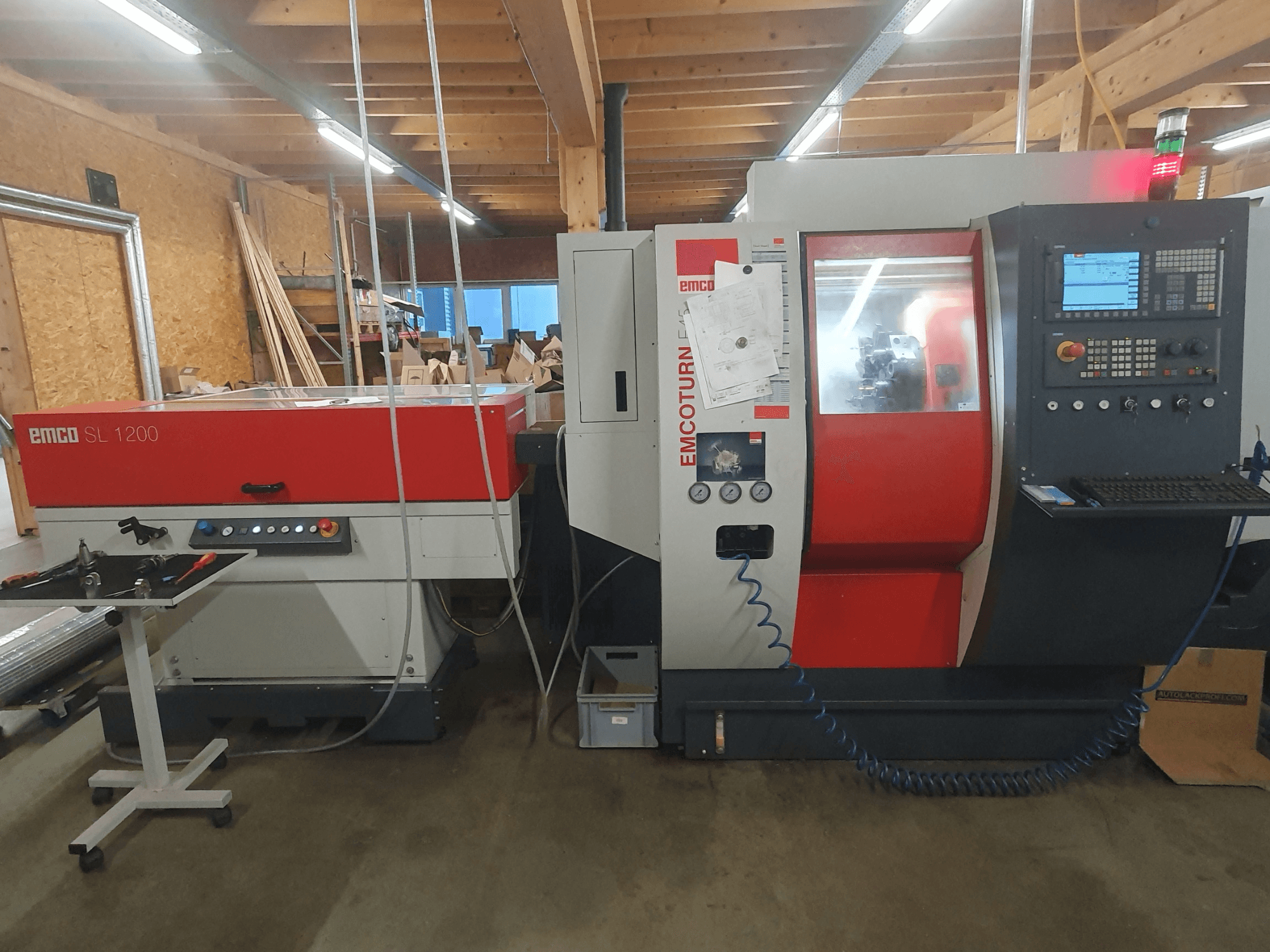

EMCO - E45AT-TUR-EMC-2019-00001

• Connection: KK5 (DIN 55026)

• Bar capacity: 45 mm

• Drive power: 13 kW

• Speed range: 0–6300 rpm

• C-axis on main spindle

Tool turret

• 12-position VDI30 axial

• Directional logic for up to 6 driven tools

• Driven tools: max. 4 kW / max. 16 Nm

• Driven tools speed: 0–5000 rpm

Tailstock

• Programmable, hydraulically actuated

• Max. clamping force: 6000 N

• Morse taper: MK4

• Hollow clamping cylinder incl. draw tube

Control & software

• SINUMERIK 828D OPERATE

• SHOPTURN dialog programming

• USB interface

• Network / Ethernet

• 10.4" TFT color monitor

• 3D simulation

Media & machine features

• Machine light

• Coolant system incl. pump (3.5 bar)

• Hydraulic unit

• Chip conveyor interface

• CE certificate

• Documentation

Tool measurement (E45)

• Measuring arm fixed in the work area

• Tool measurement on the turret

• Short setup times / precise measurement / cost-efficient

Workpiece clamping

• 3-jaw chuck KK5

• Max. speed: 6300 rpm

• Diameter: 20 mm

• Soft + hard jaws

Other (machine-related)

• Water gun

• Air to spindle

• Oil/coolant separator

• Automatic coolant monitoring

• Electronic handwheel

• Tool change guard

• Hydraulic connections

• Pneumatic connections

• Machine packaging: pallet + roll-up cover

Additional equipment

Bar feeder / magazine (SL1200 – as referenced)

• Bar length: 850–1200 mm

• Bar diameter: Ø 8–95 mm

• Max. feed rate: 60 m/min

• Bar change: approx. 3 s

• Magazine change: approx. 15 s

• Material support area: 550 × 1210 mm

• Material capacity: 10 × Ø 55 mm

• Operating side: right

• Power supply: 240 V DC/DC

• Air supply: 6 bar

• Dimensions: 1700 × 1250 × 1090–1380 mm

• Weight: approx. 500 kg

• Safety device: CE

• High-speed function

• Documentation

Spindle extension (for bar feeder use)

• E45 / MT45 / HT45 → DM45

• For 45 mm spindle

• Short bars up to 1100 mm

• With reducing sleeves (3 pieces)

• Required for use with SL1200

Chip conveyor

• Hinged belt conveyor

• Discharge height: 1200 mm

High-pressure coolant unit

• 14 bar / 50 Hz

• Additional high-pressure pump

• For tools with internal coolant

• Interface & software

Robot interface

• PROFI-NET interface

• 24 V signals

• Safety release

• Automatic/manual operation switching

Additional components

• PC keyboard USB (QWERTY)

• Machine status LED: Green (Automatic), Red (Alarm), White (Material handling)

Installation & mounting hardware

• 4× vibration absorbers

• 4× mounting brackets

• 4× heavy-duty anchors

Parts collection device

• Pneumatically operated

• Max. part length: 120 mm

• Max. diameter: 45 mm (51 mm)

• Max. weight: 2 kg

• Collection box / conveyor belt
