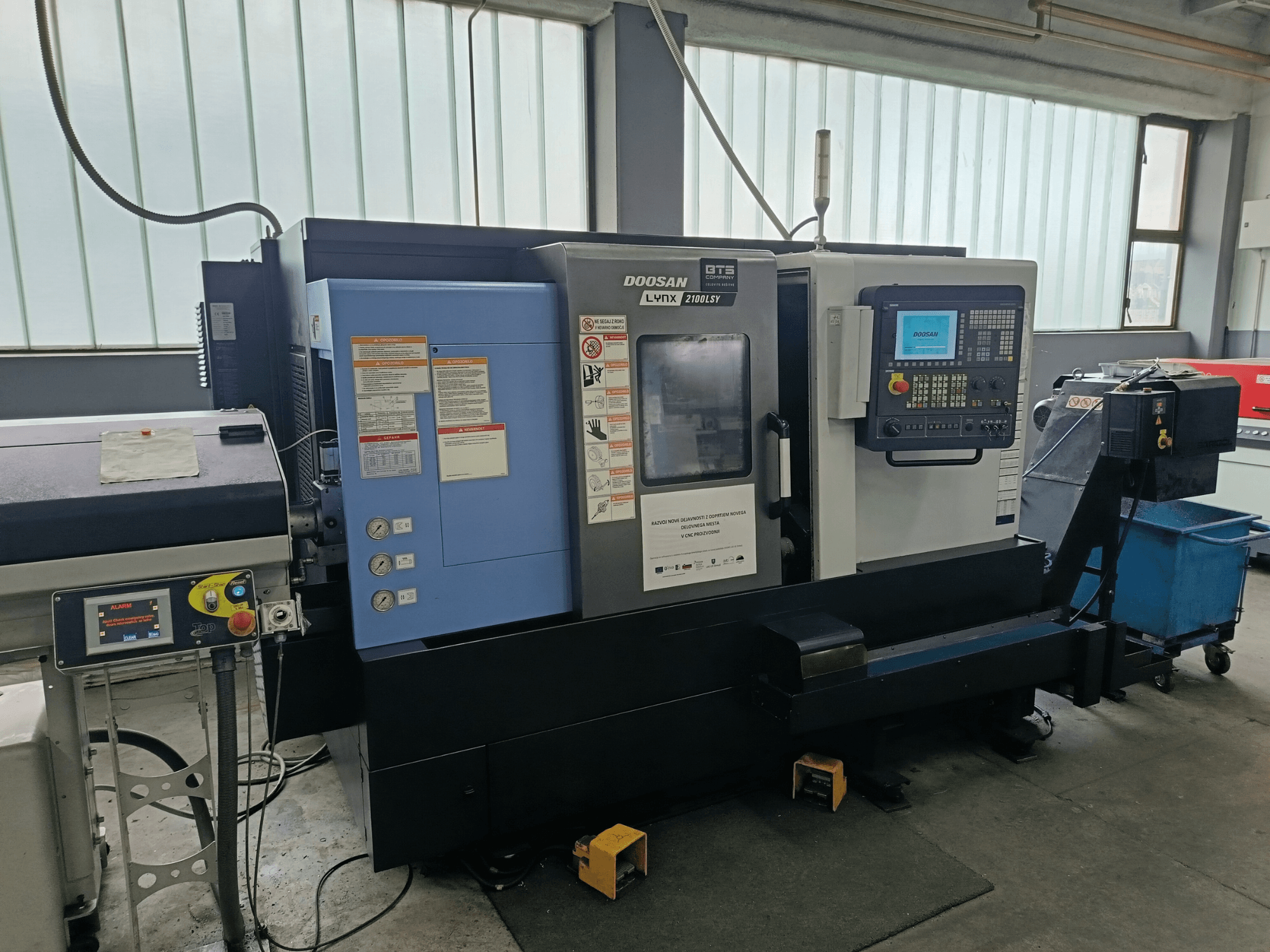

DOOSAN - LYNX 2100 LSYSI-TUR-DOO-2019-00001

• Main features:

  • Main spindle + sub-spindle

  • Y-axis for multi-tasking operations

  • 12-station turret (24 indexing positions)

  • Live tooling (driven tools)

  • Tool interface: BMT45

• Workholding/Capacity (on machine):

  • Hydraulic 3-jaw chuck: 170 mm

• Key advantages:

  • Y-axis + sub-spindle → full machining capability

  • Live tooling → turning and milling in one setup

  • Bar feeder → ideal for serial production

  • Automated part handling → increased productivity

Additional equipment

• Bar feeder: Top Automazioni Fusion 350 (Ø20–50 mm, up to 3200 mm length)

• Additional 3-jaw chuck: 135 mm

• Collet system, capacity 5–65 mm

• Chip conveyor (belt type, side discharge)

• Parts catcher for sub-spindle

• Oil skimmer

• High-pressure coolant system (5–7 bar, 20 µm filtration)

• Automatic tool measurement

• Spindle and axis load monitoring system

• 3-color signal light

• Parts handling arm (for sub-spindle unloading)

• Tooling package:

  • 2x straight driven tool holders

  • 2x angular driven tool holders

  • 1x extended angular holder

  • 1x set of turning tool holders
