Mazak CV5-500

Photo Gallery

Mazak - CV5-500SK-MIL-MAZ-2021-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

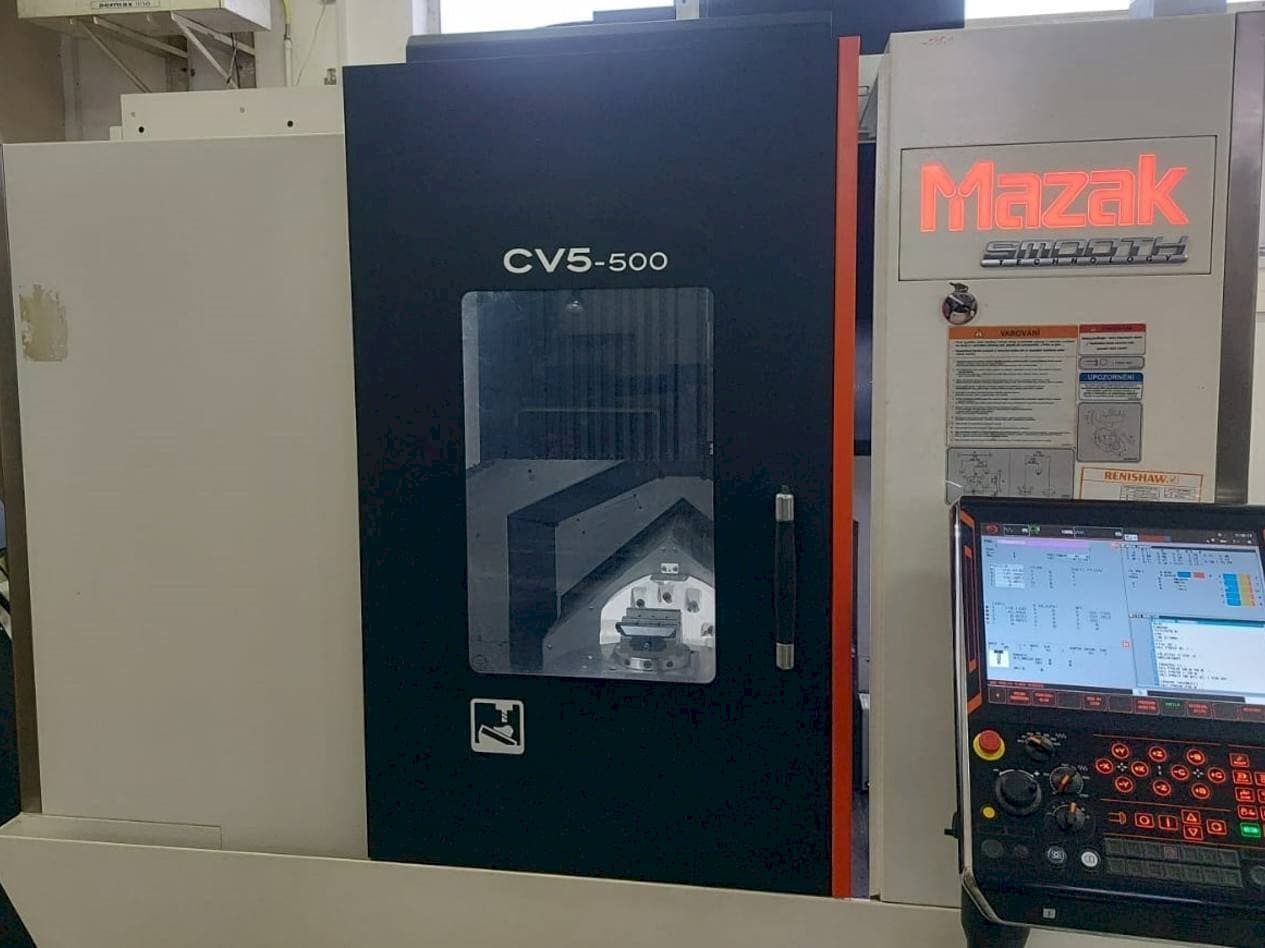

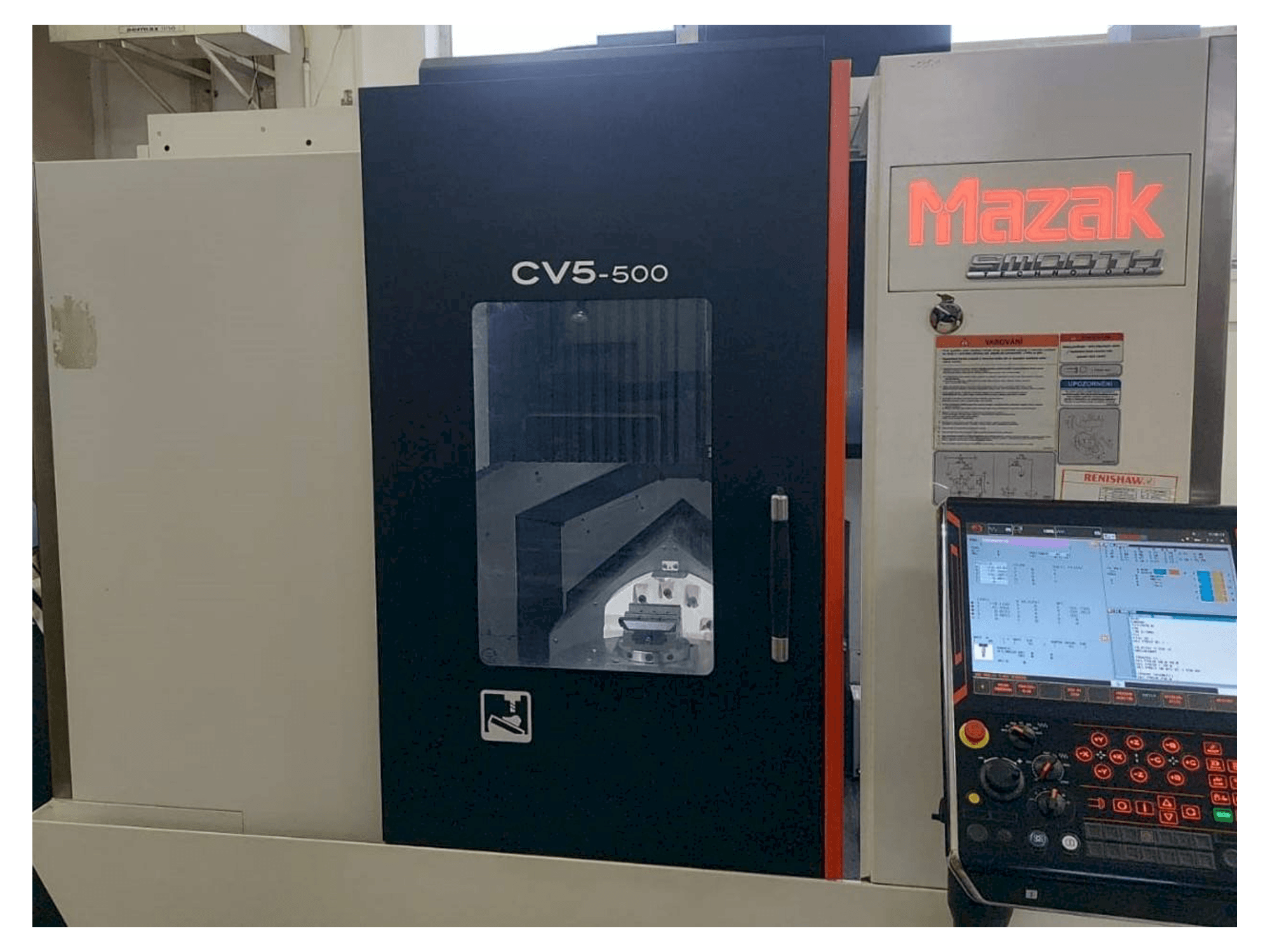

Mazak CV5-500 Vertical Machining center

Show in original language

This Mazak CV5-500 Vertical Machining Center was manufactured in the year 2021 in Japan and has 5261 production hours, of which 3015 are spindle hours. It is equipped with a Mazak SmoothX control unit and has 5 axis. The machine has a spindle speed of 12000 rpm, is in good condition and well maintained.

Overview

brand: Mazak
year: 2021
MODEL: CV5-500
production hours: 5261
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak CV5-500

General Data

Measurements width: 2300 mm
Measurements depth: 2984 mm
Measurements height: 2933 mm
Machine weight: 6780 kg

Control Unit

Model: SmoothX
CNC language customizable: Yes
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 730 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 470 mm

Workpiece

Workpiece drm: 500 mm
Workpiece weight: 200 kg

Table

Outer length: 500 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 80/125 mm
Max tool length: 300 mm
Type of tool holder: SK40

Media

Power consumption: 52.05 kVa
Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition!

Technical Machine Benefits

Maximum workpiece diameter 500 mm
Maximum workpiece height: 320 mm
B-axis (table tilt) travel amount/indexing 0. 0001° 220° (±110°)
C-axis (table rotation) travel amount/indexing 0. 0001° 360°
Rapid traverse rate (x/y/z): 36 m/min.
Rapid traverse rate (b/c): 30 min-1
Distance spindle nose to table center (table vertical) max 565 mm
Main output (ac inverter motor) 10% ed rating 18,5 kw
Renishaw tool and workpiece probes (measurement pack 2)
High-pressure cooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
