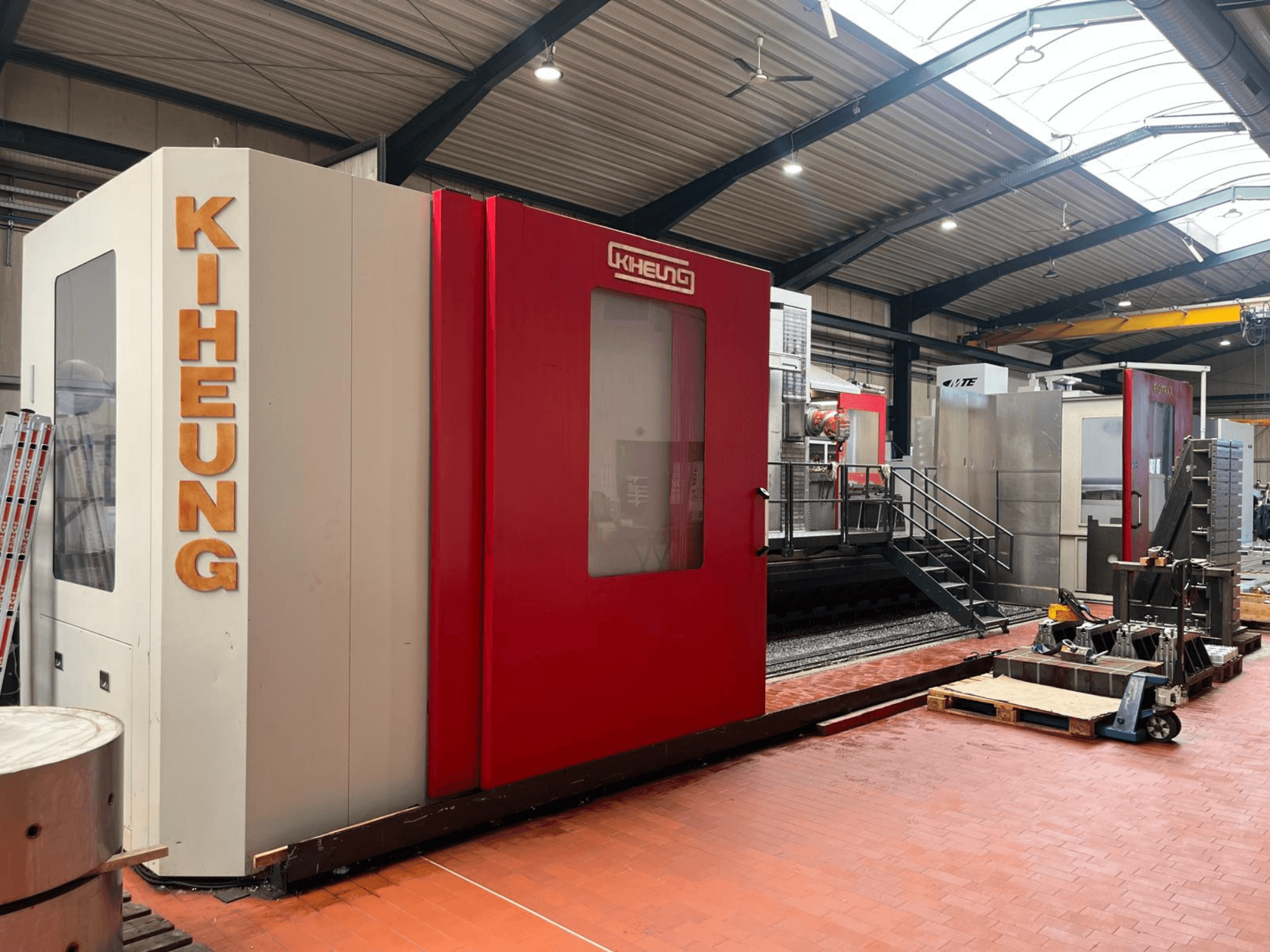

This 5-axis KIHEUNG RIGITRAX X 8000 was manufactured in 2011. It features an impressive X-axis travel of 8000 mm, Y-axis travel of 1350 mm, and Z-axis travel of 2000 mm. The machine is equipped with a powerful 28 kW spindle motor and a 40-fold tool changer for efficient operations. If you are looking to get high-quality milling capabilities, consider the KIHEUNG RIGITRAX X 8000 bed type milling machine we have for sale. Contact us for further details.
Overview
- brand: KIHEUNG
- year: 2011
- MODEL: RIGITRAX X 8000
- application type: Milling
- Location: Germany
- machine type: Bed Type Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - KIHEUNG RIGITRAX X 8000
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530 BF 150 LCD with smartTNC, Mousepad, and DXF-Converter
Dimensions
- Machine Weight: 45000 kg
- Table Length: 9950 mm
- Table Width: 1150 mm
Movement
- Number of Axes: 5
- X-axis Travel: 8000 mm
- Y-axis Travel: 1350 mm
- Z-axis Travel: 2000 mm
Technical Specification
- Spindle Power: 28 kW
- Spindle Speed: 4000 RPM
Additional Information
- Main Computer: MC 422 C with Software option 1 & 2
- Table Length: 9950 mm
- Table Width: 1150 mm
- T-Slots Surface: 9 x 22 / 10 x 22 nr. x mm
- T-Slots Distance: 125 mm
- T-Slots Front Surface: 2 x 22 mm
- Max. Table Load: 3500 kg/qm
- Feed Rate (all 3 axes): 10000 mm/min
- Rapid Traverse (X, Y, Z axes): 16000 mm/min
- Feed Power X-Axis: 70 Nm
- Feed Power Y-Axis: 27 Nm
- Feed Power Z-Axis: 50 Nm
- Spindle Taper: ISO 50, DIN 69871
- Spindle Speed Range (2 Steps):
- 1st Step: 0 - 1000 U/min
- 2nd Step: 1001 - 4000 U/min
- Main Spindle Motor Power (100% / 60%): 28 / 38 kW (SIEMENS Main Spindle Motor)
- Axis Drives: AC-Drives SIEMENS
- Coolant Tank Volume: 500 l (without through-spindle cooling) / 1500 l (with through-spindle cooling - 2 pumps)
- Linear Measuring System: HEIDENHAIN scales with DA 300 compressed air system
- Spindle Gearbox: ZF reduction gear, 2-speed (1-1000 / 1001-4000 rpm), cooled
- Milling Head: Universal Automatic Milling Head A 4 Plus, "HURON" system, cooled, bi-rotational 2.5° x 2.5°, programmable and automatic positioning in 2.5° of the 45° and 90° planes (5-axis simultaneous / indexing preparation)
- Tool Changer: 40-fold vertical/horizontal chain-type system, driven via servomotor, HEIDENHAIN encoder monitoring
- Through-Spindle Coolant (CTS / IKZ): 16 bar high-performance cooling system with paper filter (DEUBLIN rotary union, 16 bar for spindle, 8 bar for 6 coolant nozzles at spindle nose)
- Coolant Tanks: 2 tanks (1200 l clean tank and 500 l pre-tank) with paper band filter system (500 mm paper width, 10 micron filtration fineness)
- Chip Conveyor: Wide hinged belt conveyor X 8000 rear-side, elevated discharge
- Measuring Preparations: Prepared for TS 220 workpiece touch probe and TT 140 tool touch probe
- Additional Features: Hydraulic counter-weight balance in Z-axis, spindle orientation for rigid tapping, PLC prepared for 4th axis, automatic taper blow-out unit (A2 + A4 head), automatic central lubrication, electronic portable handwheel HEIDENHAIN HR-410, Ethernet interface, automatic Power-Off
- Machine Enclosure: Partial machine enclosure with 2 front doors for X 4000 or 4 front doors for X 6000 - X 8000
- Paint Finish: Light grey RAL 7035, Carmine red RAL 3002
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
