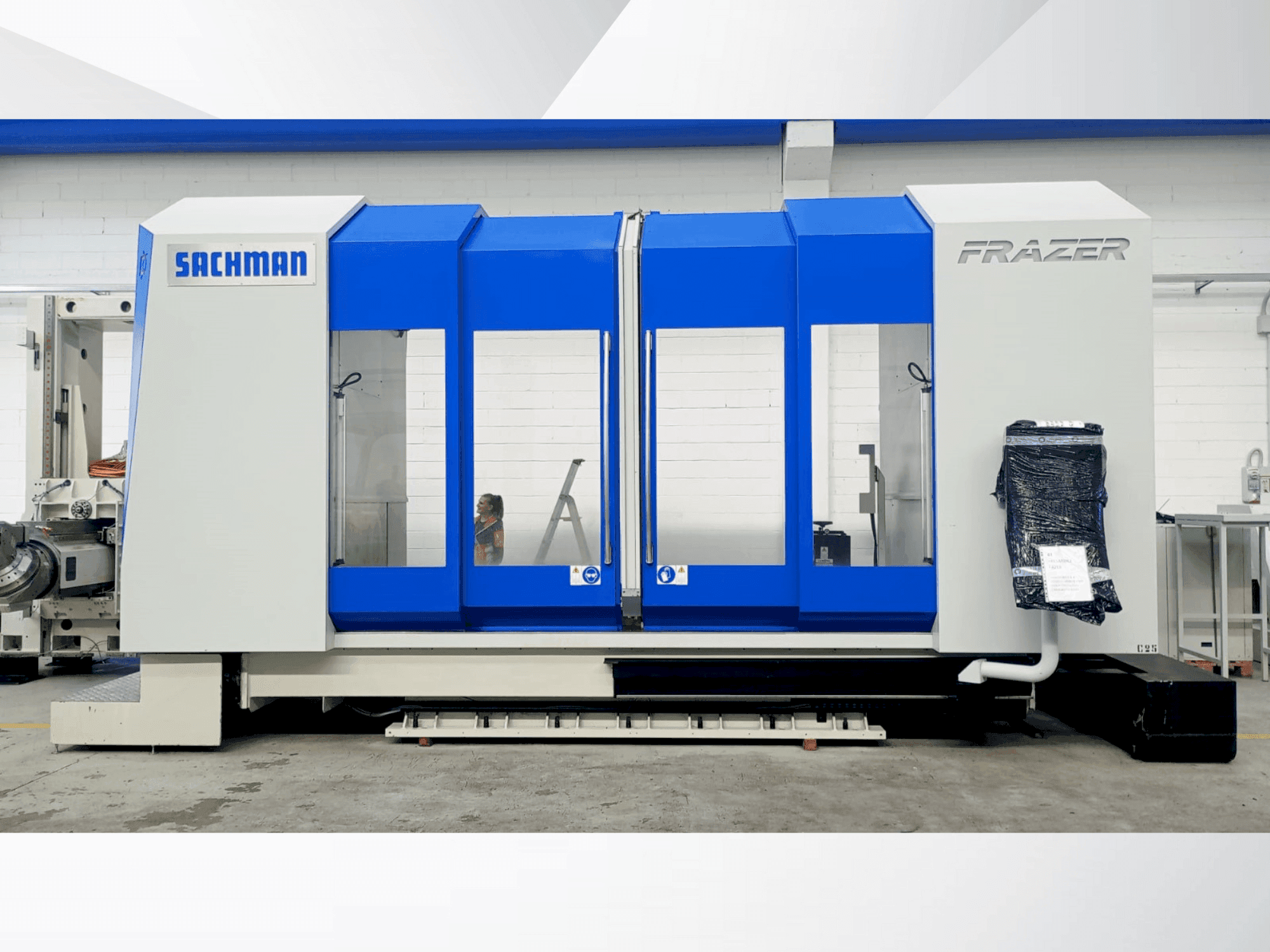

Front view of JOBS FRAZER  machine

JOBS - FRAZERIT-MIL-JOB-2017-00001

£ 273,750
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis JOBS FRAZER cnc milling machine was manufactured in 2017. It features a large fixed table of 3100x1000 mm and high-speed axes capable of up to 35 m/min, ensuring efficient machining. The machine includes a Heidenhain iTNC 530 HSCI CNC for precise control and a 24-position disc tool magazine. If you are looking to get high-quality milling capabilities, consider the JOBS FRAZER machine we have for sale. Contact us for more information.

Overview

  • brand: JOBS
  • year: 2017
  • MODEL: FRAZER
  • application type: Milling
  • Location: Italy
  • machine type: CNC Milling Machine
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - JOBS FRAZER

Control Unit

  • Brand: HEIDENHAIN
  • Model: ITNC 530

Main drive

  • Number of axis: 4

Movement

  • X-AXIS Movement: 3000 MM
  • Y-AXIS Movement: 1500 MM
  • Z-AXIS Movement: 1100 MM

    Additional Equipment

    • - Direct hydraulic balancing system (double cylinder)
    • - Workpiece : Fixed table: 3100x1000 mm
    • - Table : External low-pressure spindle cooling system
    • - Disc tool magazine with 24 ISO50 positions, with tool exchanger arm, complete with support and management software located at the end of X-axis travel
    • - Hydraulic system, power supply, and wiring / 6000 W cooling unit / Hydraulic and electric cabinets (Rittal) on the ground
    • - Work area lighting; Machine and spindle hour counters / External operator station on the ground – mobile operator panel / C-axis with torque motor
    • - 2 longitudinal screw chip conveyors + 1 transversal belt conveyor / Safety fences including panels and sliding steel door with Lexan window, compliant with CE safety standards. Upper cover included.
    • - Dividing wall and software setup for pendulum machining / Renishaw RMP60 digital probe
    • - BLUM fixed laser presetter station, including Blum measurement cycles + zeroing sphere
    • - Voltage: 400 Vac / Frequency: 50 Hz

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Heidenhain itnc 530 hsci cnc, complete with operator panel and 15" screen located on the front side of the machine
        • - Electrospindle: 33(25) kw - 640(480) nm - 8000 rpm - iso 50
        • - X-axis transmission with rack and pinion (dual drive), y, z ball screws
        • - Pressurized optical scales
        • - X, y, z axis speed up to 35 m/min / x-axis covers with non-walkable telescopic shields
        • - Maximum thrust x, y, z axis: 10,000 n
        • - Universal head c with continuous positioning with torque motors / medium-pressure (15 bar) internal spindle coolant with bag filter / air blow-off through external nozzle on the spindle / spray mist tool cooling system external to the spindle

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
