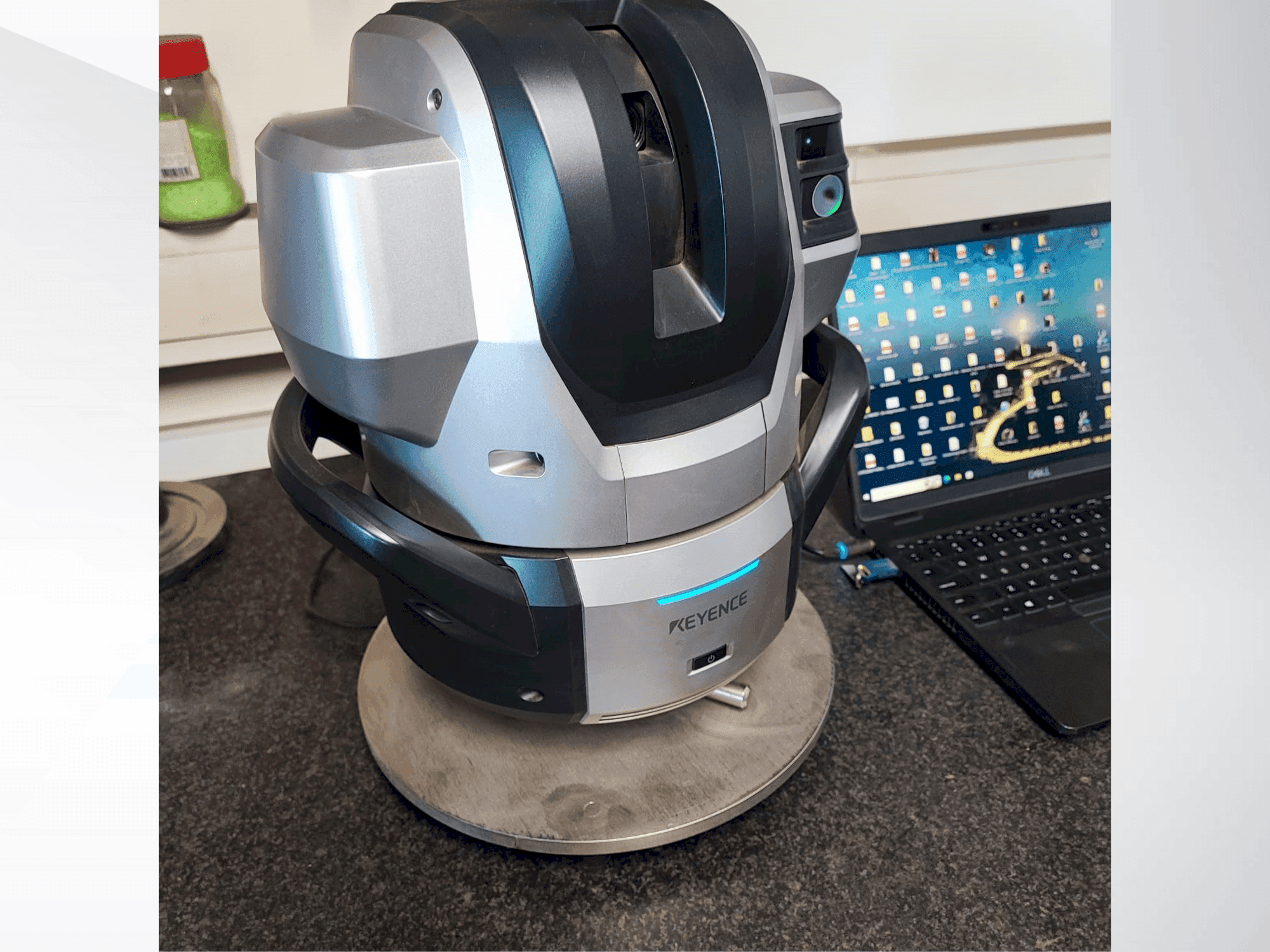

KEYENCE - WM 3000DE-MEA-KEY-2022-00001

• Max. measuring length (W × D × H): 10,000 mm × 3,500 mm × 5,000 mm

• Certified measuring range (W × D × H): 3,000 mm × 1,500 mm × 1,500 mm

• Measurement accuracy: ±(28 + 5 L/1000) μm*

• Repeatability: ±10 µm

• Minimum display unit: Distance: 0.001 mm, Angle: 0.001°

• Rotation angle of the measuring head: Horizontal ±90°, Vertical ±30°

• External input 2 voltage-free inputs

• Communication

  • Bluetooth communication Bluetooth 5

  • USB communication USB 3.0

  • Infrared communication 945 nm

• Power supply: Powered via supplied mains adapter

• Rated voltage: 24 V DC

• Current consumption: 1.7 A

• Environmental conditions: Operating ambient temperature +10°C to +35°C

• Operating relative humidity: 20 to 80% (non-condensing)

• External dimensions: 327.7 mm × 250.9 mm × 357.3 mm

Additional equipment

• Measuring Head WM 3000

• USB Cable

• Power Supply

• Measuring Probe WMP3000

• Probe Tip Ø 5 mm

• Calibration Device

• Tripod

• 3D-CAD Add-on Software

• Transport Case

• 4x Batteries for Measuring Probe

Machine Benefits

Technical Machine Benefits

• Battery charger

• Dongle for measuring software

Extra Information

Machine still under power
