VISCOM - S3016DE-MEA-VIS-2023-00001

Name: VISCOM S3016
Brand: VISCOM
SKU: DE-MEA-VIS-2023-00001
Price: 38596 GBP
Availability: InStock

£ 38,596

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used VISCOM S3016 For Sale | gindumac.com

Show in original language

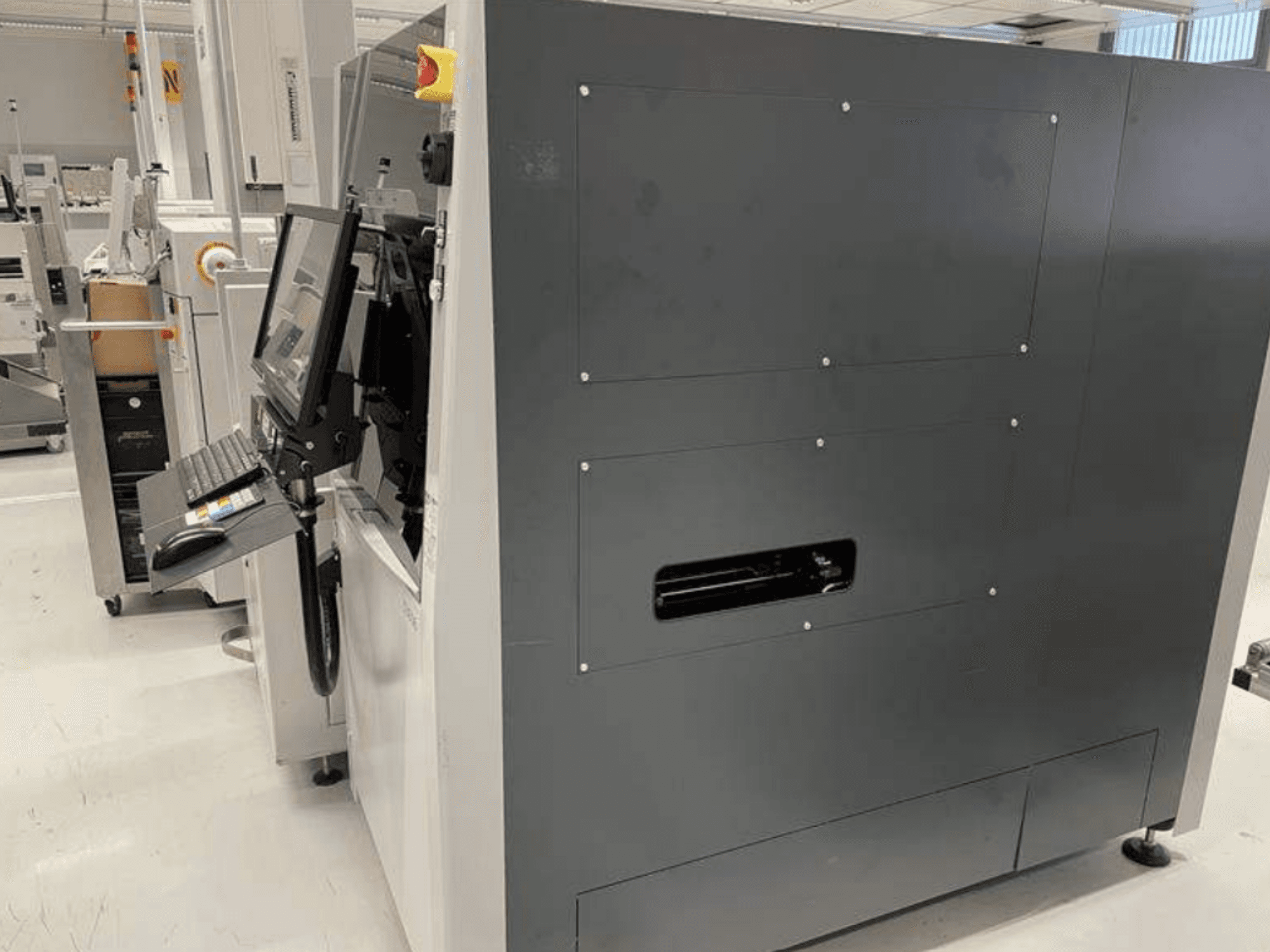

Optical measurement machine manufactured in 2023. This VISCOM S3016 features a maximum PCB dimension capacity of up to 430 mm x 610 mm and includes an uninterruptible power supply. It is equipped with 4 orthogonal cameras and offers high-resolution inspection capabilities. If you are looking to get high-quality inspection capabilities, consider the VISCOM S3016 optical measurement machine we have for sale. Contact us for further details.

Overview

brand: VISCOM
year: 2023
MODEL: S3016
application type: Measuring
Location: Germany
machine type: Optical Measurement Machine

Technical Information - VISCOM S3016

Dimensions

Machine Weight: 980 kg

Additional Information

- System Function: Individual inspection from below with automatic track width adjustment; well-suited for inspecting THT solder joints

- Max. PCB Dimensions: Up to L 430 mm x W 610 mm

- System Computer: MS Windows operating system (presumably Windows 10)

- Power Supply / UPS: Uninterruptible power supply included

- Software: SI inspection software

- Sensor Specifications: 8M-4SRW

- Inspection Dimensions: 2D resolution

- Camera Configuration: 4 orthogonal cameras

- Illumination: Red illumination

- Resolution (Standard Mode): 23.4 µm/pixel

- Resolution (High-Resolution): 11 µm/pixel

- Hardware Extensions: Traffic light extension to 2,500

- Power Consumption: 2500 W

- Supply Voltage: Y400V 3P/N/PE AC, 50 Hz

- Control Voltage: 24 V

- Pneumatic Operating Pressure (P/min-max): 4 - 6 bar

- Sound Level: < 70 dBA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
