➤ Used ZEISS ATOS Q 12M For Sale | gindumac.com

Show in original language

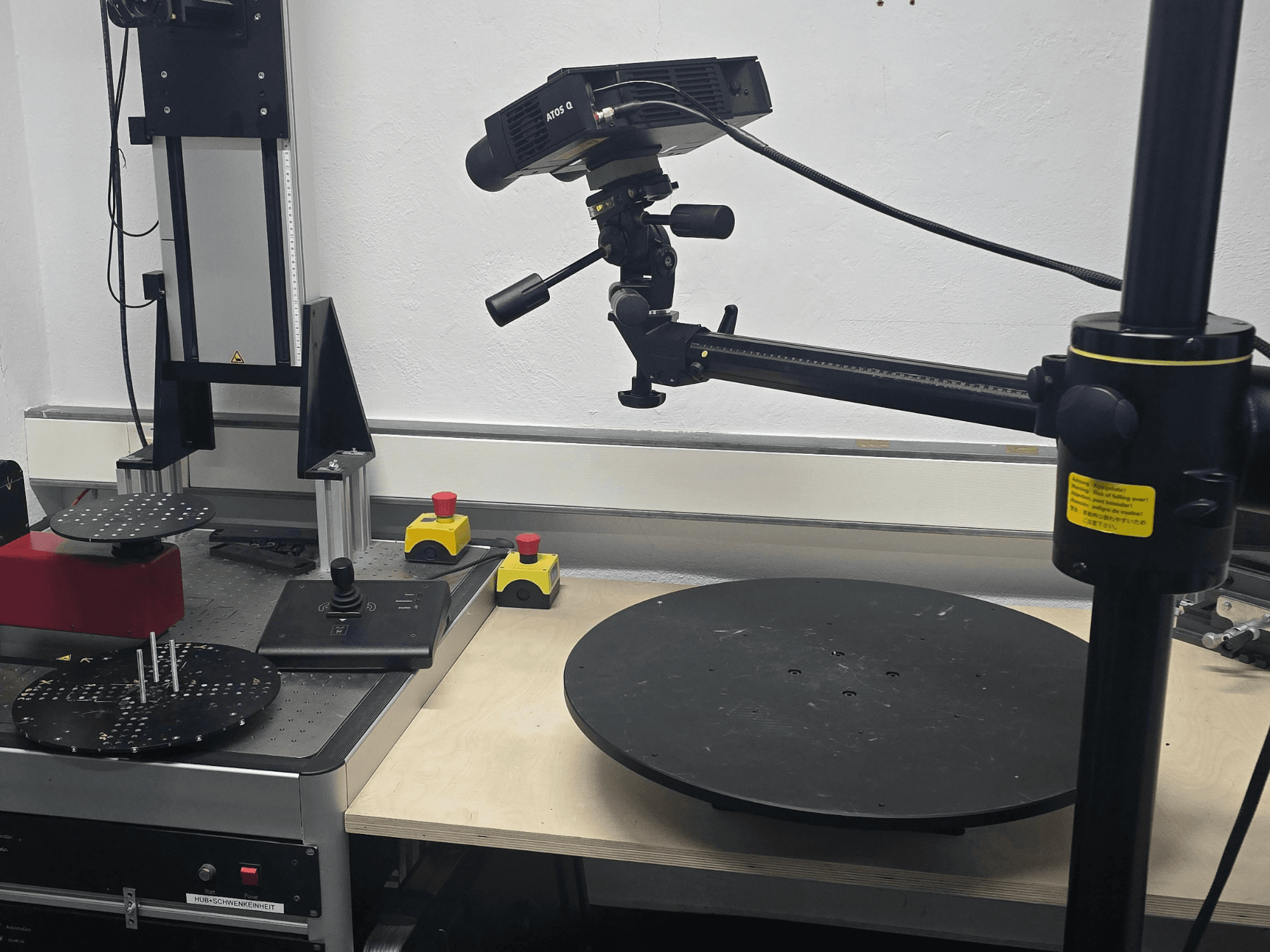

Optical measurement machine manufactured in 2022. This ZEISS ATOS Q 12M features dual 12-megapixel CMOS cameras with a resolution of 4112 x 3008 pixels. It includes multiple measurement volumes, with the largest measuring 500 x 370 x 320 mm. The system operates efficiently with a maximum rotary table load capacity of 150 kg. If you are looking to get high-quality optical measurement capabilities, consider the ZEISS ATOS Q 12M machine we have for sale. Contact us for further details.

Overview

brand: ZEISS
year: 2022
MODEL: ATOS Q 12M
production hours: 1529
application type: Measuring
Location: Germany
machine type: Optical Measurement Machine

Additional Information

- Camera Resolution: 2 x 12-Megapixel CMOS Cameras (4112 x 3008 pixels)

- Operating/Worktime Hours: 1,529 h (Overall work time / Overhaul work time)

- Measurement Volumes (MV) & Specifications:

* MV50: 50 x 35 x 20 mm; Point Spacing (12M): 0.012 mm; Measuring Distance: 490 mm; Camera Lens Focal Length: 90 mm; Projector Lens Focal Length: 60 mm; Ref Points: Ø 0.4 mm; Calib Object: CP40/MV60

* MV100: 100 x 70 x 60 mm; Point Spacing (12M): 0.029 mm; Measuring Distance: 490 mm; Camera Lens Focal Length: 50 mm; Projector Lens Focal Length: 27 mm; Ref Points: Ø 0.8 mm; Calib Object: CP40/MV100

* MV170: 170 x 130 x 130 mm; Point Spacing (12M): 0.044 mm; Measuring Distance: 490 mm; Camera Lens Focal Length: 35 mm; Projector Lens Focal Length: 20 mm; Ref Points: Ø 0.8 mm; Calib Object: CP40/MV170

* MV270: 270 x 200 x 200 mm; Point Spacing (12M): 0.064 mm; Measuring Distance: 490 mm; Camera Lens Focal Length: 25 mm; Projector Lens Focal Length: 14 mm; Ref Points: Ø 1.5 mm; Calib Object: CP40/MV320

* MV350: 350 x 260 x 260 mm; Point Spacing (12M): 0.091 mm; Measuring Distance: 490 mm; Camera Lens Focal Length: 16 mm; Projector Lens Focal Length: 10 mm; Ref Points: Ø 1.5 mm; Calib Object: CP40/MV320

* MV500: 500 x 370 x 320 mm; Point Spacing (12M): 0.124 mm; Measuring Distance: 490 mm; Camera Lens Focal Length: 12 mm; Projector Lens Focal Length: 6 mm; Ref Points: Ø 3.0 mm; Calib Object: CP40/MV560

- Actual System Operating Temperatures (Status Screen):

* temp0 Monoboard: 44.0 °C

* temp1 Timber: 25.5 °C

* temp2 Air: 21.7 °C

* temp3 LED: 36.0 °C

* temp4 Frame-P: 27.8 °C

* temp5 DMD-P: 29.4 °C

* temp6 Lens: 29.7 °C

- Fan Speeds: Electronic Fan: 4237 RPM; Lamp Fan: 4359 RPM

- System Orientation: Pitch: 14.9°; Roll: -3.7°

- Rotary Table Load Capacity: Max. 150 kg (or max. 40 kg depending on setup configuration)

- Tilt and Swivel Unit Load Capacity: Max. 5 kg

- Mobile Workstation Laptop Spec (Dell Precision 7760): 17" Display, 64-bit Intel 2.6 GHz Octa-Core CPU, 64 GB RAM, NVIDIA Quadro OpenGL Graphics, 1 TB SSD, I/O: Wi-Fi, LAN, 3x USB 3.2 / Thunderbolt 4

- Included Accessories & Equipment: Tripod, 4 measurement fields (MV50, MV100, MV270, MV500) with calibration plates, Rotary/pan unit with lift, Rotary table with 19" control unit, Mobile controller, Converter box with image processing card (fiber optic to Thunderbolt 3), Carrying case, Power supply, Dongle-based software license

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
