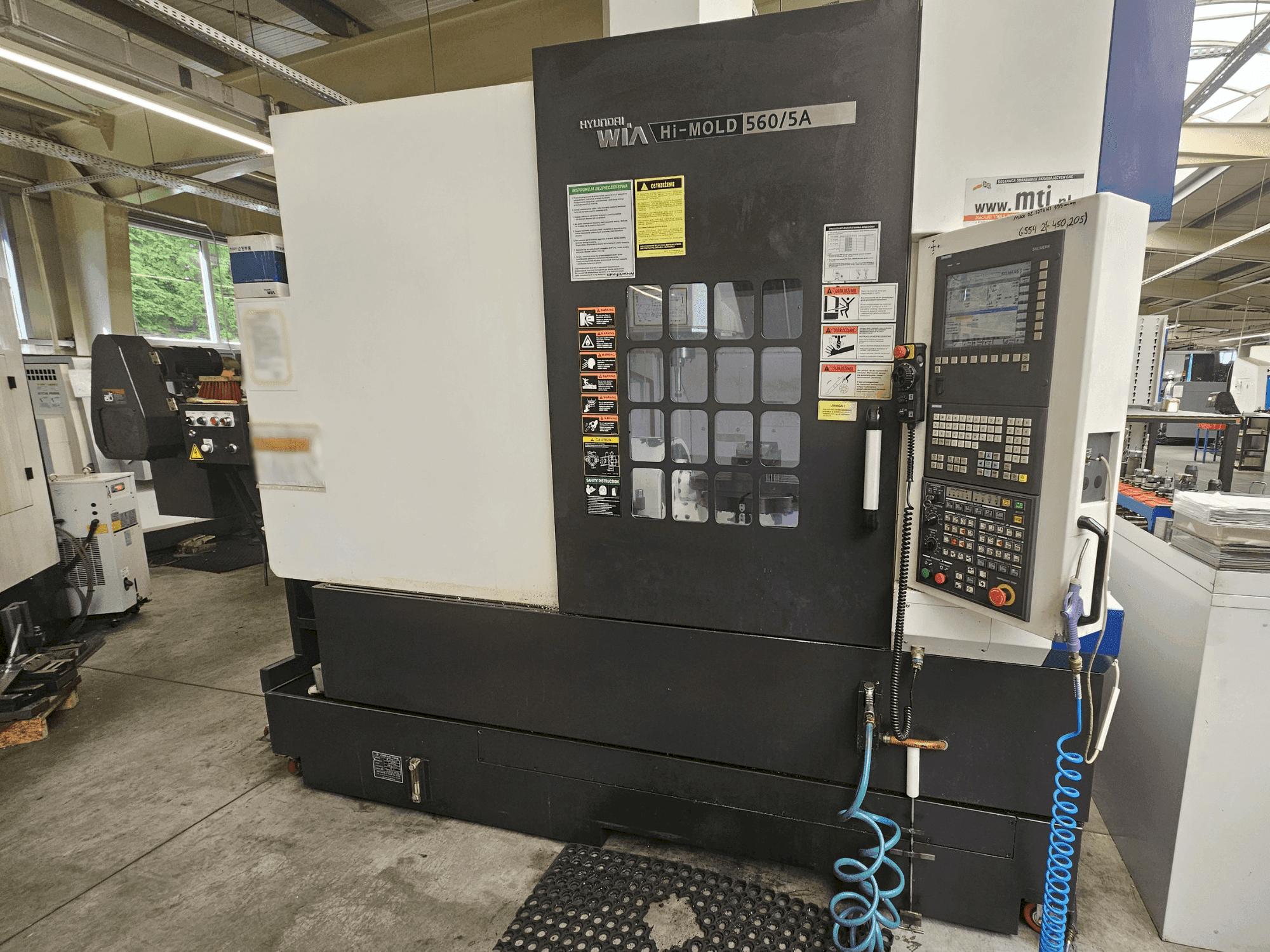

Front view of Hyundai Wia Hi-MOLD 560/5A machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Hyundai Wia Hi-MOLD 560/5A

Photo Gallery

Hyundai Wia - Hi-MOLD 560/5APL-MIL-HYU-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hyundai Wia Hi-MOLD 560/5A For Sale | gindumac.com

Show in original language

This 5-axis Hyundai Wia Hi-MOLD 560/5A was manufactured in 2013. It features a Siemens 840D control system, a table size of Ø500 × 270 mm, and can handle a maximum table load of 250 kg. The machine offers a rapid traverse rate of 50 m/min in X/Y/Z axes and higher speeds in rotary axes, with spindle speeds up to 24,000 rpm. Consider the opportunity to buy this Hyundai Wia Hi-MOLD 560/5A vertical machining centre. Contact us for more information.

Overview

brand: Hyundai Wia
year: 2013
MODEL: Hi-MOLD 560/5A
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Hyundai Wia Hi-MOLD 560/5A

General Data

Type of drive: Built-in motor

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D

Main drive

Spindle speed range: 24000 rpm 1/MIN
Spindle motor power: 33 / 25 kW (Max/Cont.)
Tool taper: HSK-A63
Number of axis: 5

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 450 mm
Z-AXIS Rapid traverse: 50 m/min
A-AXIS Movement: ±30°
A-AXIS Rapid traverse: 70 r/min
C-AXIS Movement: ±120° / 360°
C-AXIS Rapid traverse: 150 r/min

Tools

Max weight: 3 kg
Max tool diameter: Ø140 mm
Max tool length: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Table size: 500 × 270 mm
Maximum table load: 250 kg
Tool capacity: 24 tools
Tool change time (chip to chip): approx. 5. 5 sec
Max tool diameter (with adjacent tool): 70 mm
Tool shank type: hsk-a63

Extra Information

Full documentation available. Very good working condition. Low working hours.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
