➤ Used Pinnacle BX300A For Sale | gindumac.com

Show in original language

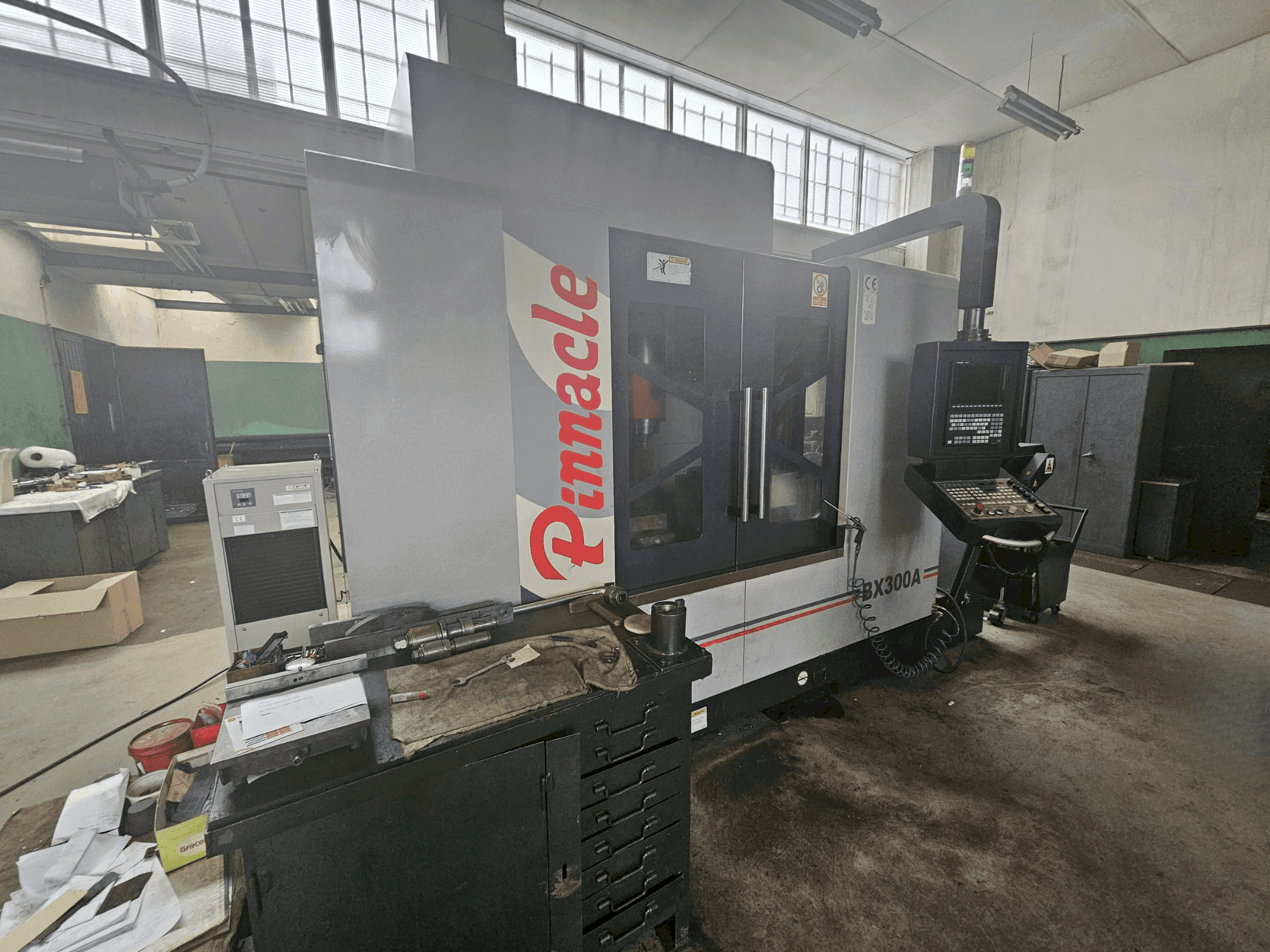

This 5-axis Pinnacle BX300A was manufactured in 2012. It features a spindle speed of 15,000 rpm, a table size of 1300 × 610 mm, and a 24-position tool magazine. Equipped with a Mitsubishi M720VS control system, it supports complex machining with continuous rotation on the C-axis and tilting on the B-axis. Consider the opportunity to buy this Pinnacle BX300A vertical machining centre. Contact us for more information about this machine.

Overview

brand: Pinnacle
year: 2012
MODEL: BX300A
production hours: 35000
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: MITSUBISHI

Technical Information - Pinnacle BX300A

Control Unit

Control Brand: MITSUBISHI
Control Model: M720 SSS

Dimensions

Table Load: 850 kg

Movement

Number of Axes: 5
X-axis Travel: 1140 mm
Y-axis Travel: 610 mm
Z-axis Travel: 810 mm

Technical Specification

Spindle Speed: 15000 RPM

Additional Information

Additional equipment

Air blast through spindle
Rotary table with counter-support and hydraulic lock – 360° rotation
Heidenhain linear scales on X, Y, Z axes; rotary encoders on A and C axes
Coolant through spindle, 20 bar + low-pressure cooling system
Renishaw OMP60 workpiece probe + receiver // Renishaw TS27R tool probe
Chip flushing system
Chain-type chip conveyor
Telescopic covers for X, Y, Z axes
Full machine enclosure with safety door lock
Central lubrication system with oil cooler

Machine Benefits

Qualitative Machine Benefits

Condition: very good, low operating hours
Ready for tests

Technical Machine Benefits

B-axis (tilting head): –120° to +120°
C-axis (rotary table): 360° continuous rotation
24-position drum-type tool magazine
Table size: 1300 × 610 mm

Extra Information

Additional equipment Work area lighting Signal tower Air and coolant guns MPG handwheel Electrical cabinet cooling with air conditioner Temperature control system for spindle and ball screws Coolant oil separator Maintenance tool set

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
