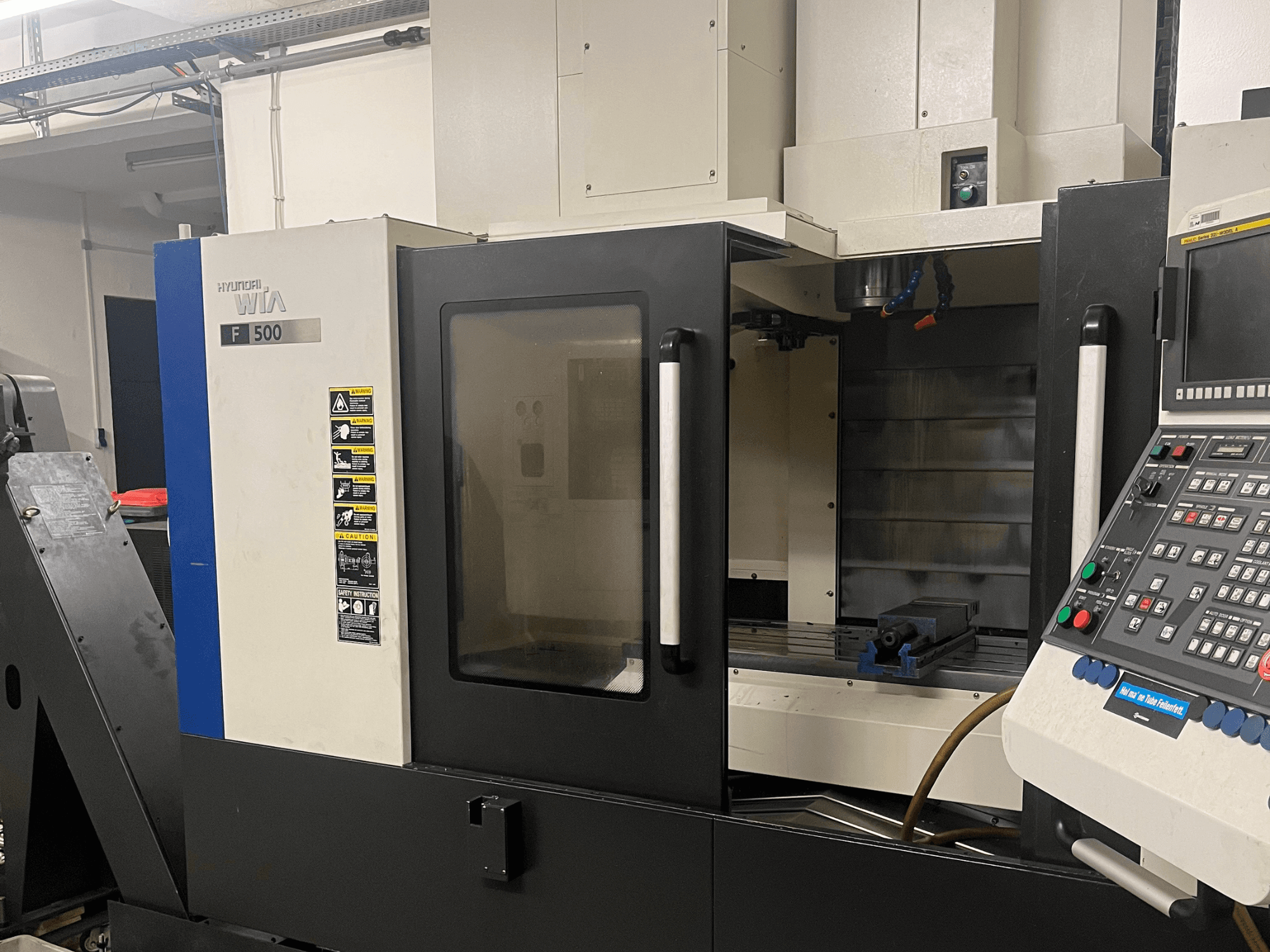

This 3-axis Hyundai Wia F500 was manufactured in 2012. It features a table size of 1,000 × 450 mm and a maximum table load of 600 kg. The spindle speed can reach up to 10,000 rpm, with a continuous power output of 15 kW. If you are looking to get high-quality machining capabilities, consider the Hyundai Wia F500 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Hyundai Wia
- year: 2012
- MODEL: F500
- production hours: 12000
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Hyundai Wia F500
Control Unit
- Control Brand: FANUC
- Control Model: Series 32i – MODEL A
Dimensions
- Machine Height: 2835 mm
- Machine Length: 2800 mm
- Machine Weight: 7700 kg
- Machine Width: 2670 mm
- Table Length: 1000 mm
- Table Load: 600 kg
- Table Width: 450 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1060 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 635 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 15 kW
- Spindle Speed: 10000 RPM
- Taper Size: BT 40
- Through-spindle Coolant: Yes
- Tool Stations: 30
Additional Information
Control Unit: FANUC Series 32i – MODEL A
Voltage: 380 V (3Ø)
Frequency: 50 Hz
Rated Power: 23 kVA
Full Load Current: 35 A
Control Voltage: AC 110 V / DC 24 V
Spindle Taper: BT40
Spindle Speed Range: Up to 10000 rpm
Spindle Power Output (Continuous): 15/11 kW (20/15 HP)
Spindle Power Output (Maximum): 20/15 kW (25/20 HP)
Spindle Torque (Continuous): 286/143 Nm
Spindle Drive: Direct Drive (Direct Coupled)
Distance from Table to Spindle Nose: 130–650 mm
Distance from Column to Spindle Center: 475 mm
Rapid Traverse (X/Y/Z): 32 / 32 / 32 m/min
Tool Changer: 30-Position
Tool Holder: BT40
Maximum Tool Diameter: 90 / 150 mm
Maximum Tool Length: 300 mm
Maximum Tool Weight: 8 kg
Tool Change Time (T-T): 1.8 sec
Tool Change Time (C-C): 5.9 sec
Internal Coolant Pressure: 20 bar
Coolant Tank Capacity: 300 L
Lubrication Tank Capacity: 2.6 L
Hydraulic Tank Capacity: 11 L
Air Consumption: 250 l/min
Power Requirement: Over 25 kVA
Operating Hours: Approx. 12000 h
Spare Spindle (Optional, not included)
Approx. 105 Tools (Optional, not included)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
