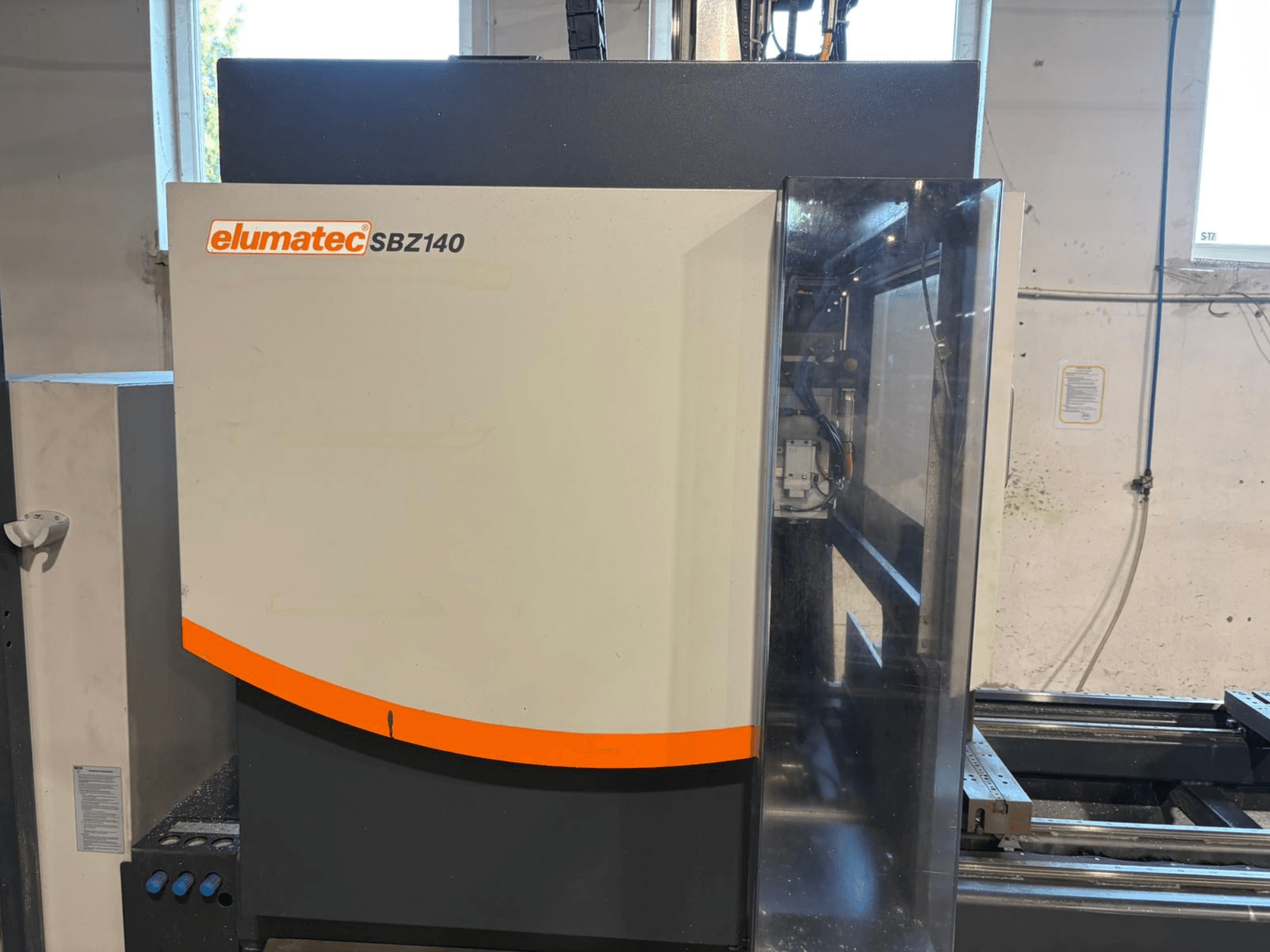

This 4-axis Elumatec SBZ-140 was manufactured in 2010. It features a maximum profile length of 7600 mm and a Y-axis travel of 850 mm, making it suitable for machining aluminum and thin-walled steel profiles. The machine includes an air-cooled spindle with a maximum speed of 24,000 rpm and a tool magazine capacity of 8 positions for efficient operation. If you are looking to get high-quality machining capabilities, consider the Elumatec SBZ-140 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Elumatec
- year: 2010
- MODEL: SBZ-140
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
Technical Information - Elumatec SBZ-140
Movement
- Number of Axes: 4
- X-axis Travel: 850 mm
- Z-axis Travel: 650 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 24000 RPM
Additional Information
Application: Machining of aluminum and thin-walled steel profiles
Operating system: Windows
Machining capabilities: Milling, drilling, tapping, end machining
Continuous machining range: 0°–180°
Working area:
Max. profile length with end machining: 7480 mm
Max. profile length without end machining: 7600 mm
Axis travels:
A-axis rotation: 0°–180°
A-axis programming increment: 0.1°
Axis speeds:
Y-axis: up to 60 m/min
Z-axis: up to 60 m/min
Spindle: Air-cooled
Tool magazine: 8 positions, co-moving for fast tool changes, expandable system
Machine features: Stationary profile machining, fast automatic tool changes, suitable for aluminum and thin-walled steel profiles, two machining zones (optional)
Pneumatic system: 7 bar required, approx. 180 l/min air consumption (with spray system)
Electrical data: 400 V / 3-phase / 50 Hz, main connection 63 A
Control panel: 15” color display, USB interface, LAN connection
Additional equipment
Angle head set (0°, 90°, 180°, 270°) for end machining and double profiles
Pendulum mode / 2 working zones (optional configuration)
