➤ Used DMG 635 V Ecoline For Sale | gindumac.com

Show in original language

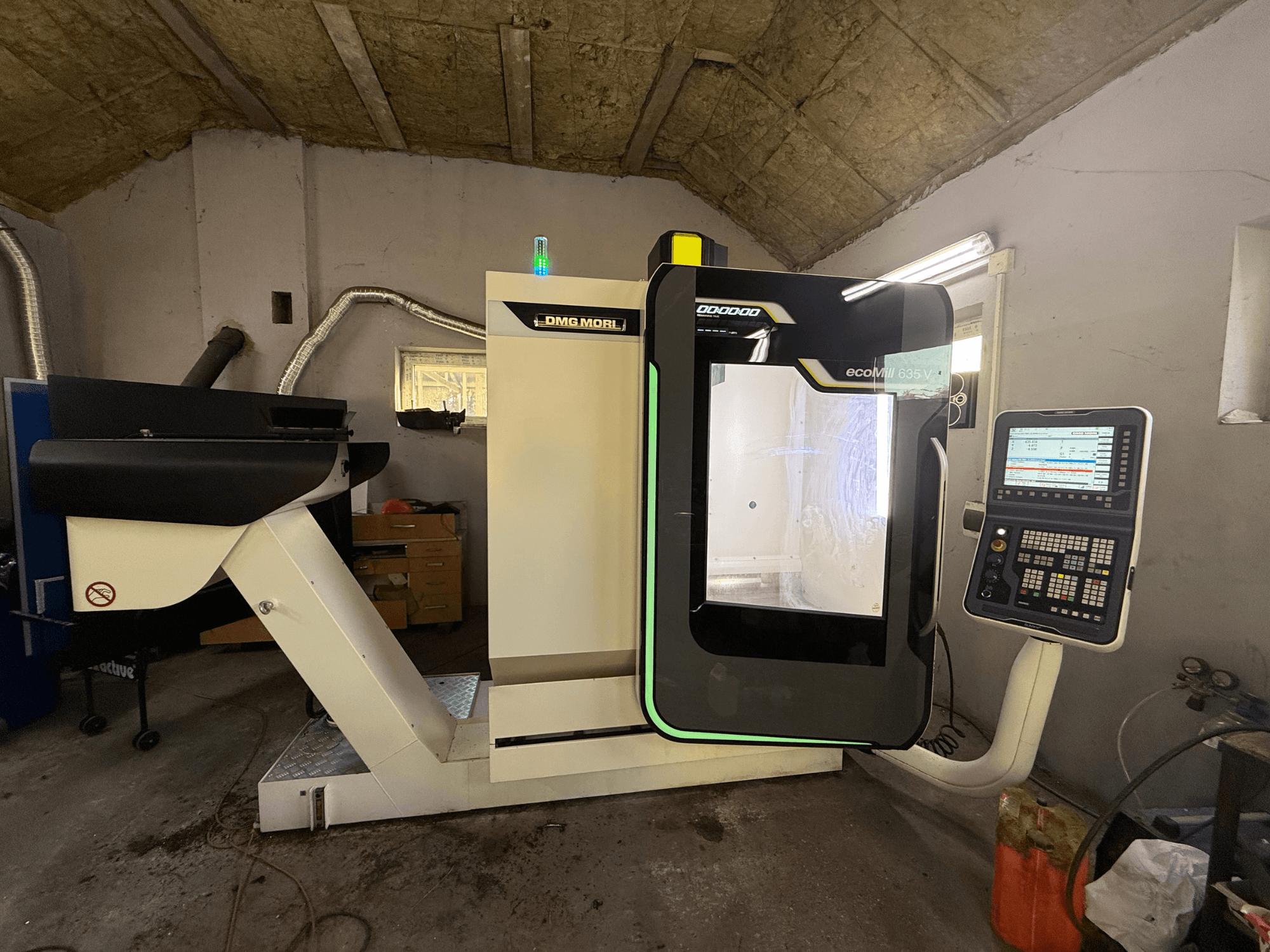

This 3-axis DMG MORI ecoMill 635 V was manufactured in 2015. It features an X-axis travel of 635 mm, Y-axis travel of 510 mm, and Z-axis travel of 460 mm. The machine has a robust table size of 790 x 560 mm and a maximum table load of 600 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI ecoMill 635 V vertical machining center we have for sale. Contact us for further details.

Overview

brand: DMG
year: 2015
MODEL: 635 V Ecoline
production hours: 1748
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DMG 635 V Ecoline

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 840 D

Dimensions

Machine Height: 2650 mm
Machine Length: 2050 mm
Machine Weight: 3900 kg
Machine Width: 2530 mm
Table Length: 560 mm
Table Load: 600 kg
Table Width: 790 mm

Movement

Number of Axes: 3
X-axis Travel: 635 mm
Y-axis Travel: 510 mm
Z-axis Travel: 460 mm

Technical Specification

Spindle Power: 17 kW
Spindle Speed: 12000 RPM
Taper Size: SK 40
Tool Stations: 20

Additional Information

CNC control: electronic handwheel
Operating hours: Power on approx. 13,550 h; Spindle cutting approx. 1,748 h
Table: 790 × 560 mm
Spindle: 12,000 rpm; SK40 / ISO40; Power approx. 13–17 kW
Tool magazine: 20 positions; Automatic double‑arm tool changer
Feed rates: Rapid traverse 30 m/min
Coolant: Flood coolant system
Drives: Digital AC servo drives
Electrical: 400 V / 50 Hz / 3‑phase; Rated power 17 kVA
Other: Machine connected and under power; very low spindle cutting hours for the year; good technical condition

Additional equipment

Scraper-type chip conveyor
- Discharge height: 950 mm
- Tank capacity: 200 l
Coolant spray gun for swarf removal
Standard 4-color signal lamp
PROGRESSline & Planolight package

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
