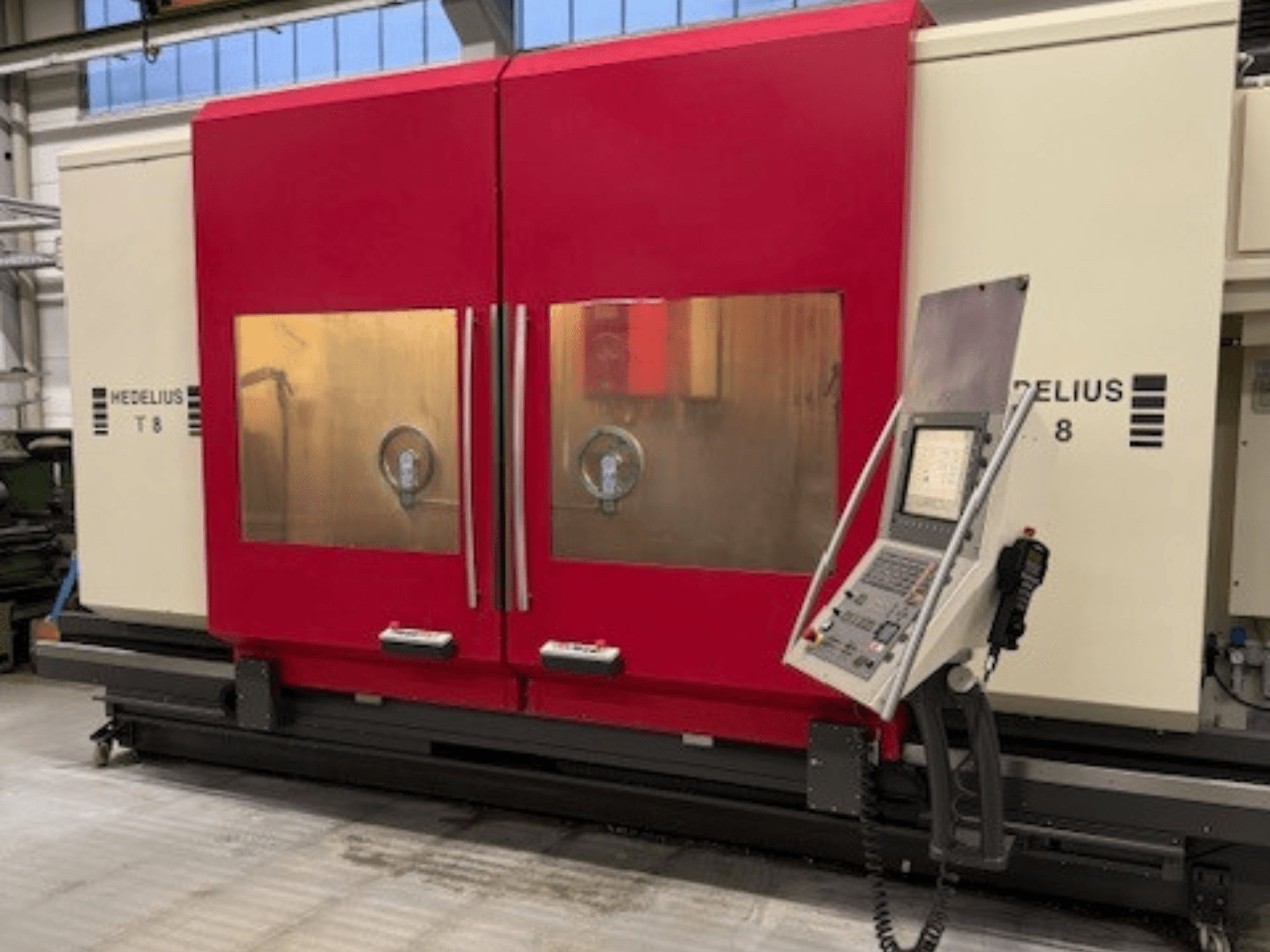

HEDELIUS - T8 - 2300DE-MIL-HED-2006-00002

• NC swivel head B-axis: +92° / -92°

• Max pendulum operation: 2 × 850 mm

• Rapid traverse: 60 m/min

• Feed force: X/Y 5000 N, Z 9000 N

• Spindle:

  • Max torque: 158 Nm

  • Front spindle bearing diameter: 70 mm

  • Tool clamping (pull-in force): 12 kN

• Tool magazine/changing:

  • Tool positions (standard): 40

  • Tool positions (Magnum): 80

  • Max tool diameter: 125 mm (180 mm with adjacent positions empty)

  • Max tool length: 330 mm

  • Tool change time (approx.): 3.5 s

  • Chip-to-chip time: vertical 6.0 s / horizontal 6.5 s

• Table/capacity:

  • Fixed table (L×W): 2000 × 920 mm

  • T-slots: 6 × 18 H12

  • Rotary table: 1 × 18 H8

  • Max. workpiece weight: 2500 kg

• Machining capacities:

  • Drilling in St 52 with carbide: 40 mm

  • Tapping: M24

  • Milling in St 52: 500 cm³/min

• Distances (reference):

  • Z travel vertical (L2): 850 mm

  • Spindle nose to swivel axis (L3): 300 mm

  • Spindle nose to table surface (L4): 40 mm

  • Z travel horizontal (L5): 1000 mm

  • Spindle axis to table surface (L6): 210 mm

  • Y travel (L7): 800 mm

  • Table center to travel start/end (L8/L9): 400 / 400 mm

• Power/weights:

  • Total connected load: 25 kVA

  • Machine weight (standard): approx. 17,000–17,500 kg

• Hours:

  • Operating hours: 21,100 h

  • Spindle hours: 7,647 h

Additional equipment

• Chip conveyor

• Internal coolant through spindle, 40 bar

• Paper belt filter

• Oil and emulsion mist separator

• Rotating viewing windows (2)

• Cleaning guns (2)

• Renishaw touch probe
