STAMA - MC 734MDE-MIL-STA-2006-00001

£ 34,340
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

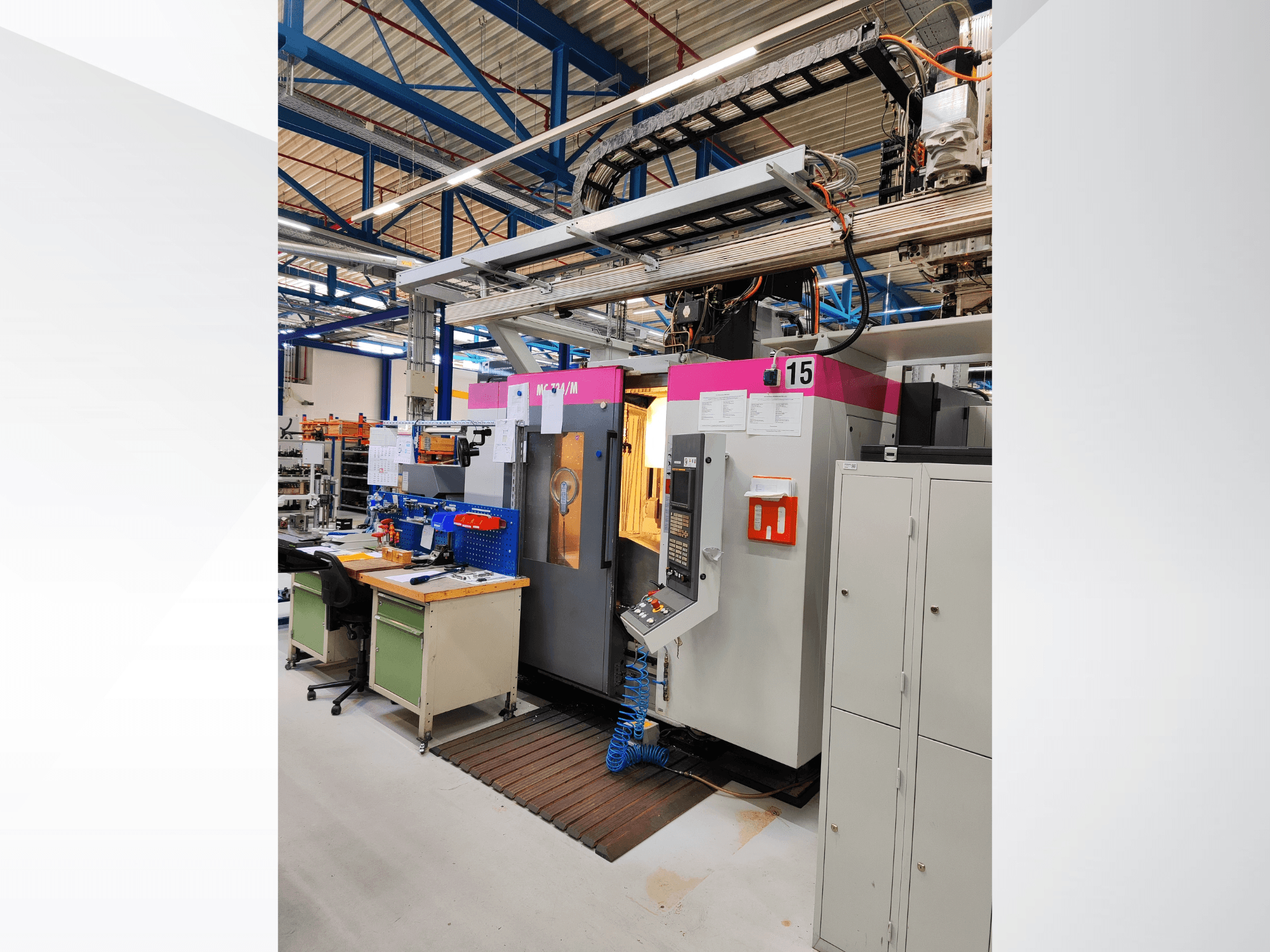

This 5-axis STAMA MC 734M was manufactured in 2006. It features a travel range of 800 mm in the X-axis, 520 mm in the Y-axis, and 510 mm in the Z-axis. The machine is equipped with a spindle speed of 12,000 rpm and a tool magazine capacity of 48 + 90 tools. If you are looking to get high-quality machining capabilities, consider the STAMA MC 734M vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: STAMA
  • year: 2006
  • MODEL: MC 734M
  • production hours: 111000
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - STAMA MC 734M

Control Unit

  • Control Brand: FANUC
  • Control Model: 16i-MB

Dimensions

  • Machine Height: 3300 mm
  • Machine Length: 3700 mm
  • Machine Weight: 9000 kg
  • Table Width: 2700 mm

Movement

  • Number of Axes: 5
  • X-axis Travel: 800 mm
  • Y-axis Travel: 520 mm
  • Z-axis Travel: 510 mm

Technical Specification

  • Spindle Speed: 12000 RPM
  • Through-spindle Coolant: Yes

Additional Information

- Interference Radius: 252 mm

- Connected Load: 51 kVA

- Total Power Requirement: 46 kW

- Connection Voltage: 400 V3 50 Hz

- Nominal Current: 75 A

- Additional Fuse: 3x 80 A

- Min Cross Section Connection: 4x25 mm²

- Spindle Taper: Capto 6

- Spindle Bearing Diameter: 85 mm

- Max Spindle Torque: 142 Nm (S6/20%)

- Tool Magazine Capacity: 48 + 90 tools

- Tool Clamping Force: 8,000 N

- Max Tool Diameter: 160 mm

- Max Tool Length: 300 mm

- Feed Rate X / Y / Z: 1 - 10,000 mm/min

- Rapid Traverse X / Y / Z: 60 m/min

- Max Feed Force X / Y: 7,000 N

- Max Feed Force Z: 8,000 N

- Max Milling Capacity: 600 cm³

- Max Drilling Diameter: 40 mm

- Max Tapping Diameter: M30

- Main Spindle Motor 1: Kessler DMQ 112.AM.4.AFS/F (22.0 kW, 12,000 rpm)

- X-Axis Motor: Fanuc A 06 B-0269-B 100 (5.5 kW, 3,000 rpm)

- Y-Axis Motor: Fanuc A 06 B-0266-B 100 (4.5 kW, 3,000 rpm)

- Z-Axis Motor: Fanuc A 06 B-0273-B 400 (5.5 kW, 3,000 rpm)

- Tool Magazine Motor: Fanuc A 06 B-0235-B 000 (2.5 kW, 4,000 rpm)

- 4th Axis B Motor: Fanuc A 06 B-0266-B 100 (4.5 kW, 3,000 rpm)

- 5th Axis C Motor: Fanuc A 06 B-0236-B 100 (2.3 kW, 4,000 rpm)

- 8th Axis X2 Motor: Fanuc A 06 B-0266-B 100 (4.5 kW, 3,000 rpm)

- 7th Axis U Motor: Fanuc A 06 B-0213-B 400 (0.75 kW, 4,000 rpm)

- V-Axis Motor: Fanuc A 06 B-0216-B 400 (1.0 kW, 4,000 rpm)

- Supplementary Magazine Motor: Fanuc A 06 B-216-B 400 (1.0 kW, 4,000 rpm)

- Flat Magazine Motor: Fanuc A 06 B-0235-B 100 (2.5 kW, 4,000 rpm)

- Coolant Pump 1: Brinkmann BFS 238/70 (5.0 kW, 2,900 rpm)

- Coolant Pump 2: Brinkmann TH 90/470-540 (3.3 kW, 2,900 rpm)

- Dirty Water Pump: Brinkmann TAS 603/280-6156 (5.5 kW, 2,900 rpm)

- Wash Gun Pump: Brinkmann TH 90/470-540 (3.3 kW, 2,900 rpm)

- Self-cleaning Lamella Filter Motor: Motovario P 63 B 4 (0.18 kW, 1,360 rpm)

- Chip Conveyor Motor: Bauer BS 06-74V/D 05 LA4/SP (0.25 kW, 1,350 rpm)

- Hydraulic Unit Motor: Rexroth UPE5-4.00A10V5010ANT-H-1-025 (4.0 kW, 1,390 rpm)

- Cabin Extraction Motor: Ziehl-Abegg RH 31 M-20K.5H.2R (0.75 kW, 2,880 rpm)

- Conveyor Belt Motor: SEW-Eurodrive R 47 DT 7104/AS B1 (290 Nm, 1,380 rpm)

Included Equipment:

Chip conveyor, auxiliary magazine, coolant system, workpiece loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
