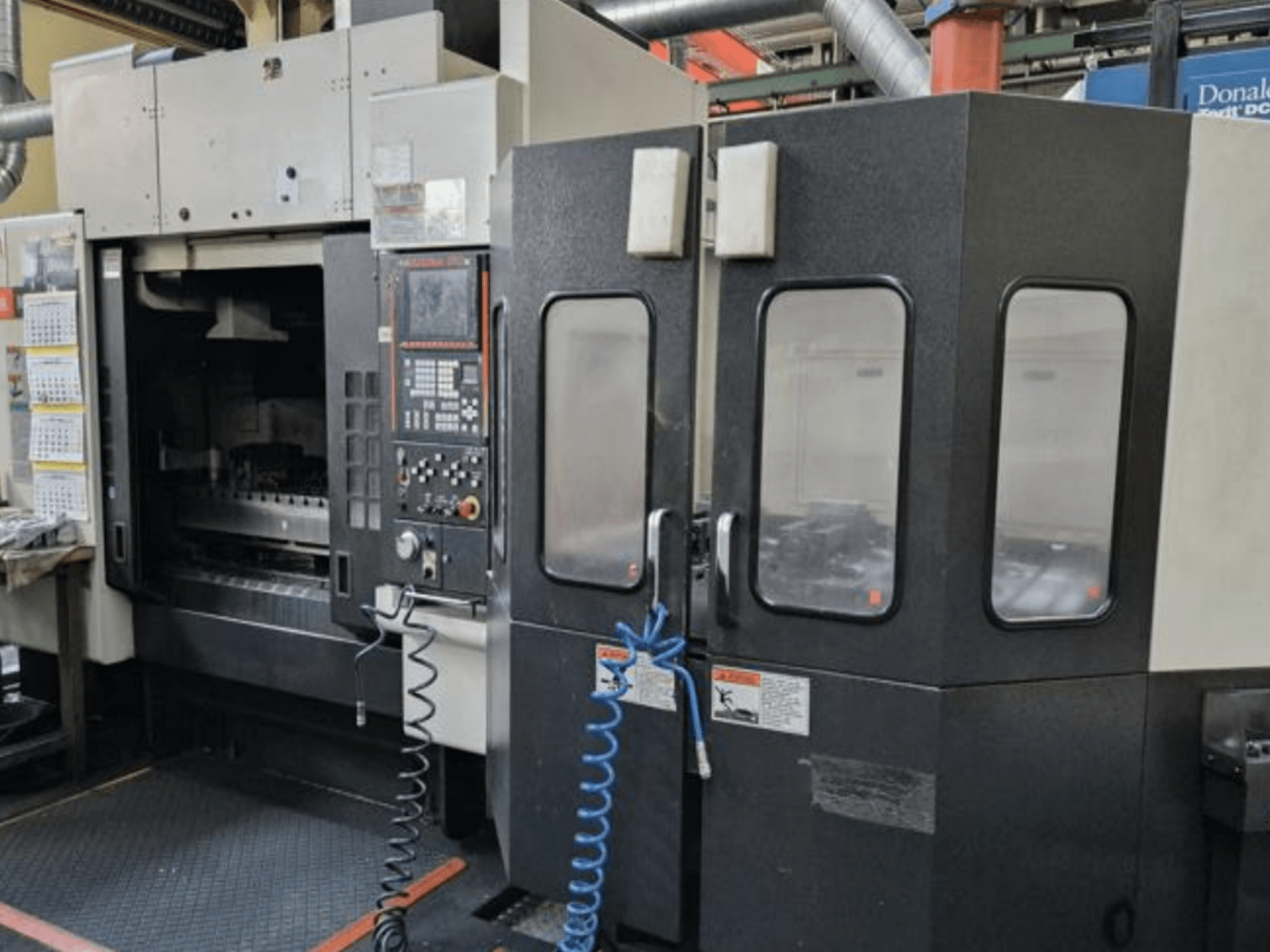

Mazak - V515/40NDE-MIL-MAZ-2006-00001

• Milling capacity in S45 (JIS): 634 cm³/min

• Drilling capacity in S45 (JIS): 50 mm

• Table Size: 1,300 mm x 550 mm

• Table Configuration: 5 T-slots, 100 mm distance, 18 mm reference groove

• Table Height from Floor: 800 mm

• Spindle Nose to Table: 200 mm - 760 mm

• Spindle Center to Column: 525 mm

• Rapid Traverse (X/Y): 26 m/min

• Rapid Traverse (Z): 20 m/min

• Feed Rate (X/Y/Z): 8 m/min

• Min Spindle Speed: 25 rpm

• Max Torque: 758 Nm

• Max Tool Diameter: 125 mm (adjacent occupied) / 260 mm (adjacent free)

• Max Tool Length: 400 mm

• Chip-to-Chip Time: 5.5 s

• Coolant Tank Capacity: 200 L

• Coolant Pump Power: 0.75 kW

• Connected Load (30 min/100%): 41.2 KVA / 36.2 KVA

• Compressed Air Supply: 5 kg/cm², 200 L/min

Additional equipment

• Extraction System: Donaldson Torit DCE

• Chip Conveyor: Mayfran
