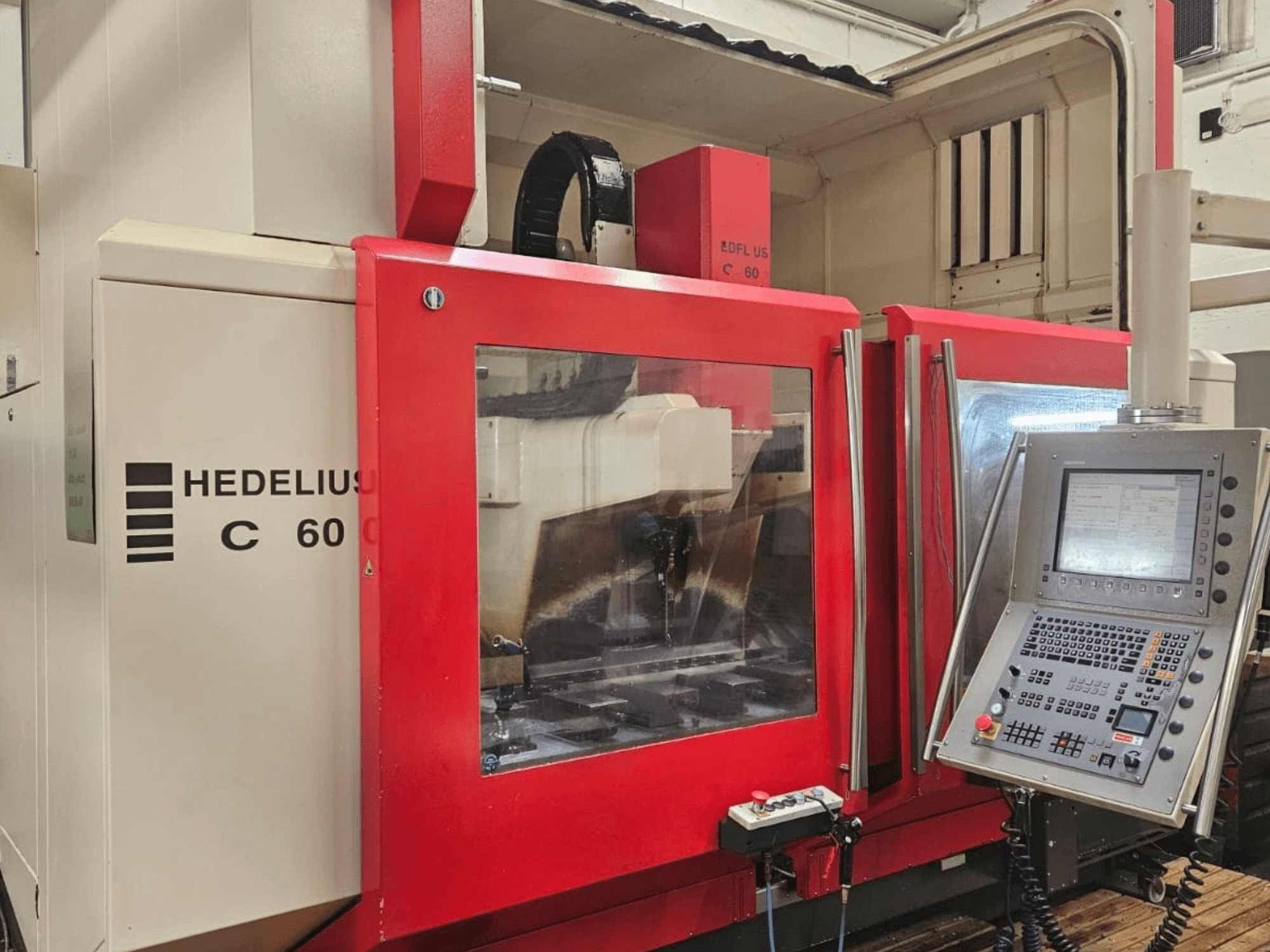

This 3-axis HEDELIUS C60 - 2000 vertical machining centre was manufactured in 2007. It features an impressive X-axis travel of 2000 mm, Y-axis travel of 620 mm, and Z-axis travel of 520 mm. The machine is equipped with a powerful 18.5 kW spindle and a tool magazine capacity of 30 tools. If you are looking to get high-quality machining capabilities, consider the HEDELIUS C60 - 2000 machine we have for sale. Contact us for further details.
Overview
- brand: HEDELIUS
- year: 2007
- MODEL: C60 - 2000
- production hours: 37292
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HEDELIUS C60 - 2000
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Weight: 10500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 2000 mm
- Y-axis Travel: 620 mm
- Z-axis Travel: 520 mm
Technical Specification
- Max. Tool Weight: 8.5 kg
- Number of Tools: 30
- Spindle Power: 18.5 kW
- Spindle Speed: 8000 RPM
Additional Information
Pendulum operation area: 2 × 775 × 620 mm
Main spindle torque: 165 Nm (optional 198 Nm)
Tool holder: HSK A63
Max tool length: 330 mm
Max tool diameter: 80 mm
Tool change time: approx. 3.0 s
Chip-to-chip time: approx. 6.0 s
Table: cast iron machine table with 5 T-slots DIN 650-18
Coolant system: central coolant through spindle
Coolant tank capacity: 780 liters
Filter grade: 25 µm
Filter capacity: 130 l/min
Pump A: 20 bar / 30 l/min
Pump B: 2.5 bar / 150 l/min
Electrical connection: 3 × 400 V, 50 Hz
Total connected load: 20 kVA
Compressed air requirement: minimum 7 bar
Weight: 10500 kg
Machine enclosure: full enclosure with electric roller door
Positioning system: glass scales on X/Y/Z axes
Drive system: digital AC servo motors with ball screws
Programming: Heidenhain plain text and DIN/ISO
Additional equipment
Chip conveyor: scraper belt type, discharge height approx. 1150 mm
Extraction system: MultiAir exhaust filter, 1200 m³/h
3D probe: Renishaw RMP 60
Repeatability: ±2 µm
Probe stylus length: 50 mm
Probe ball diameter: 6 mm
Vises (optional)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
