HEDELIUS - RS 100 K MAGNUMES-MIL-HED-2009-00001

£ 145,679
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

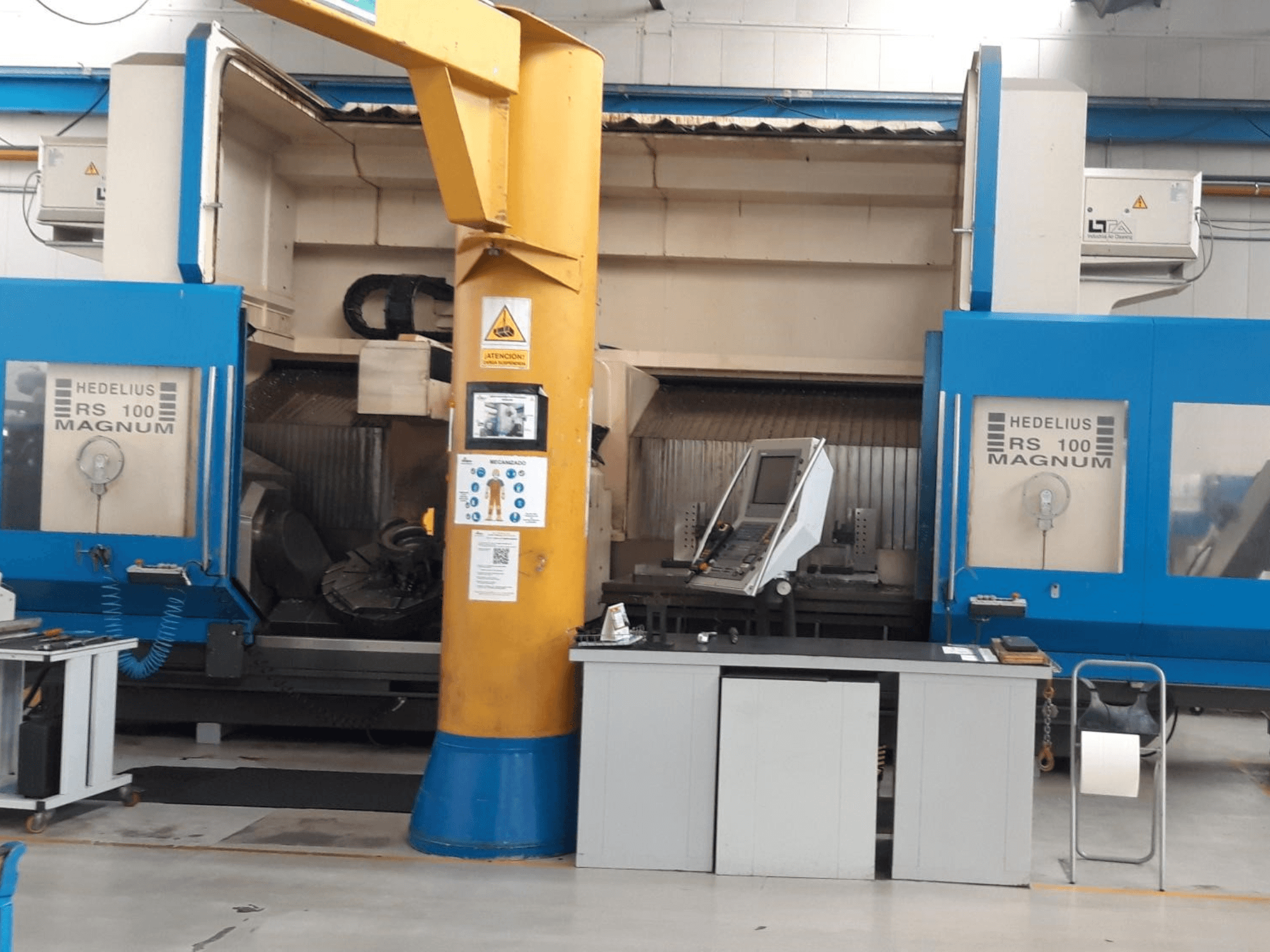

This 5-axis HEDELIUS RS 100 K MAGNUM was manufactured in 2009. It features a travel range of 3500 x 1000 x 770 mm and a rotary-tilting table with a 1200 kg max workpiece weight. The spindle operates at speeds up to 6000 rpm, and the machine includes a 50-tool capacity magazine. If you are looking to get high-quality milling capabilities, consider the HEDELIUS RS 100 K MAGNUM machine we have for sale. Contact us for more information.

Overview

  • brand: HEDELIUS
  • year: 2009
  • MODEL: RS 100 K MAGNUM
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre

Technical Information - HEDELIUS RS 100 K MAGNUM

Dimensions

  • Machine Weight: 29000 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 3500 mm
  • Y-axis Travel: 1000 mm
  • Z-axis Travel: 770 mm

Technical Specification

  • Spindle Speed: 6000 RPM

Additional Information

  • Rotary-tilting table travel (X/Y/Z): 1000 / 1000 / 770 mm

  • Distance spindle nose to table:

    • Fixed table: 120–890 mm

    • Rotary/tilting table: 175–945 mm

  • Table surface:

    • Fixed table: 2100 × 1000 mm

    • Rotary/tilting table: 1000 × 800 mm

  • Table height from floor:

    • Fixed table: 950 mm

    • Rotary/tilting table: 895 mm

  • Max. workpiece weight:

    • Fixed table: 2000 kg

    • Rotary/tilting table: 1200 kg

  • Spindle diameter (front bearing): 90 mm

  • Tool taper: MAS 403-1982 BT50

  • Feed rates (X/Y/Z): 0–30,000 mm/min

  • Max. feed force: 15,000 N

  • Tool magazine capacity: 50 tools

  • Max. tool diameter: 100 mm

  • Max. drill diameter: 70 mm

  • Power supply: 40 kVA, 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
