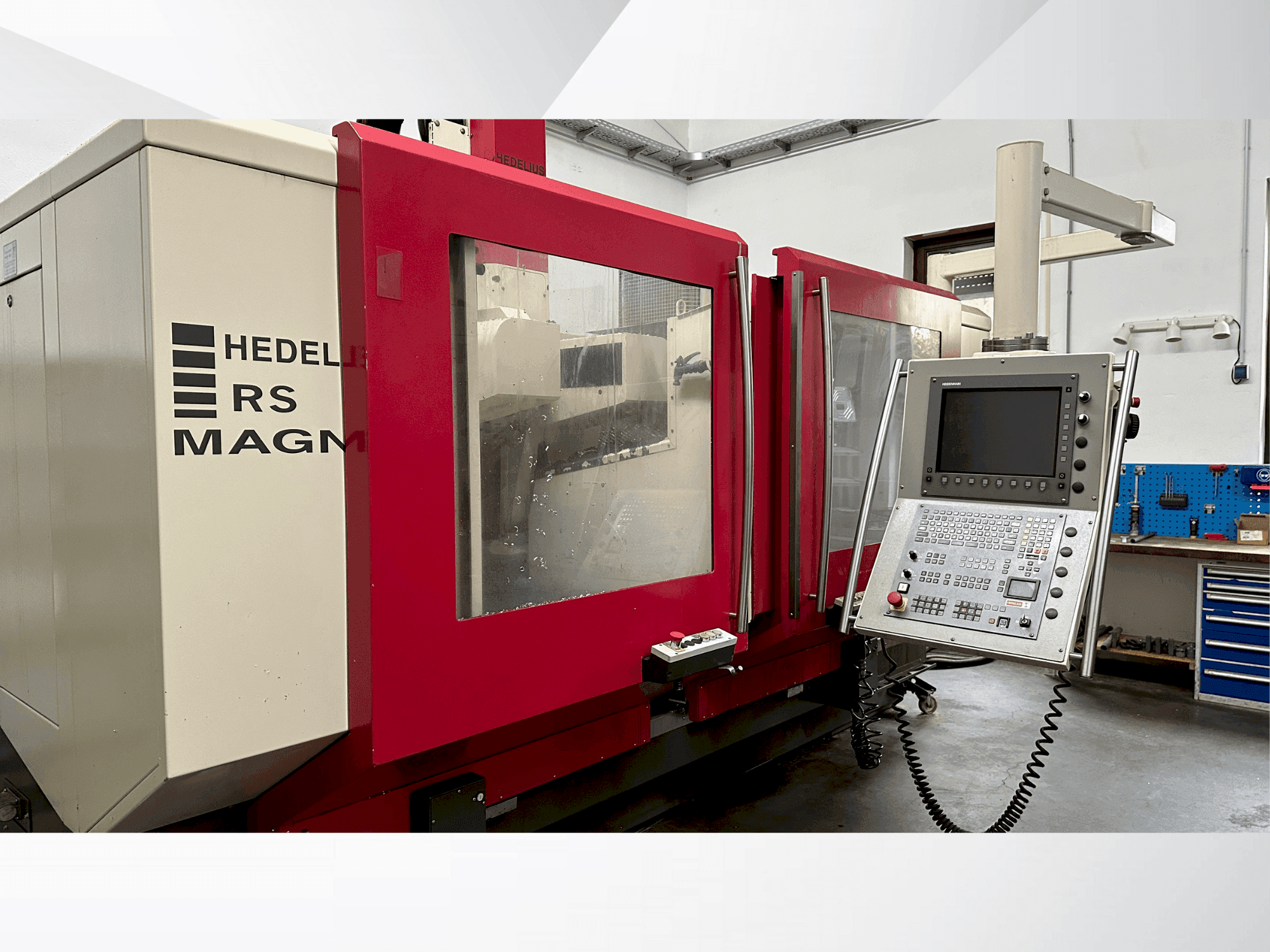

Front view of HEDELIUS RS60KM-2000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HEDELIUS RS60KM-2000

Photo Gallery

HEDELIUS - RS60KM-2000DE-MIL-HED-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HEDELIUS RS60KM-2000 For Sale | gindumac.com

Show in original language

This 5-axis HEDELIUS RS60KM-2000 vertical machining center was manufactured in 2006. It features a Heidenhain iTNC 530 CNC control, an 18.50 kW spindle drive, and a 56-tool capacity magazine. The machine offers a travel distance of 2000 mm on the X-axis, 620 mm on the Y-axis, and 520 mm on the Z-axis. If you are looking to get high-quality milling capabilities, consider the HEDELIUS RS60KM-2000 machine we have for sale. Contact us for more information.

Overview

brand: HEDELIUS
year: 2006
MODEL: RS60KM-2000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - HEDELIUS RS60KM-2000

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530/MC422

Main drive

Spindle speed range: 30–8000 rpm 1/MIN
Spindle motor power: 18.50 kW / 165 Nm
Number of axis: 5

Movement

X-AXIS Movement: 2000 MM
Y-AXIS Movement: 620 MM
Z-AXIS Movement: 520 MM

Additional Information

Additional equipment

Tool Magazine Capacity: 56 tools
Chip Conveyor: Coolant-tight with scraper belt, discharge height approx. 1150 mm
Guide System: High-performance linear guidance system
Central Lubrication: Fully automatic for all axes
Electrical Cabinet: Integrated with cabinet fan, NC terminal
Machine Enclosure: Extra-high with smooth-gliding sliding doors, shockproof and coolant-proof work area lighting
Paintwork: Machine: RAL 7022 (umbra grey) / Enclosure: RAL 1013 (pearl white) / Doors/Spindle: RAL 3027 (red)

Machine Benefits

Qualitative Machine Benefits

Combines high flexibility with precision for complex 5-axis machining tasks.
Suitable for industries demanding superior quality and efficiency.

Technical Machine Benefits

Integrated rotary-tilt table in the right working area and a fixed machine table in the left working area.
Tilt range: -10° to +90° / rotational range: ±360° / 5-axis machining capacity: Ø 600 mm
Clamping weight capacity: approx. 300 kg
Material: high-load machine table made of gray cast iron
Maximum tool weight: 8. 5 kg / maximum tool length: 330 mm / maximum tool diameter: 80 mm (Ø 125 mm with adjacent slots free)
Tool change time: ~3. 0 seconds / chip-to-chip time: ~6. 0 seconds

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
