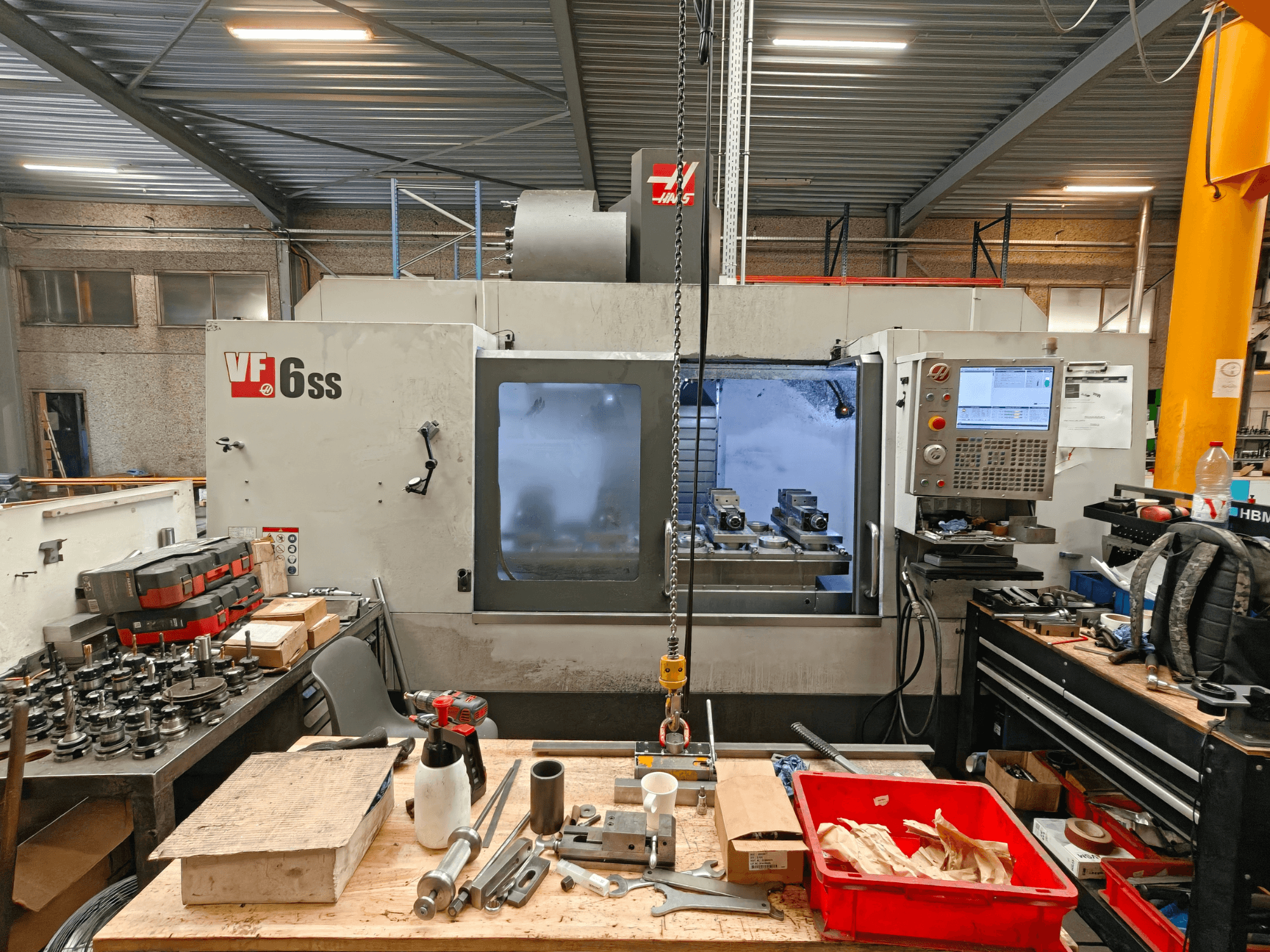

HAAS - VF-6SSBE-MIL-HAA-2016-00001

• Travels: X 1,626 mm; Y 813 mm; Z 762 mm; spindle nose to table 102–864 mm

• Table: 711 × 1,626 mm; 5 × 16 mm T-slots; 125 mm T-slot pitch; max table load 907 kg

• Spindle: max torque 122 Nm @ 2,000 rpm; ABEC Class 7 bearings; electronic orientation; water-cooled spindle head; BT40; through-spindle air blast; tool release button

• Tool changer:

  • Standard side-mount 24+1, BT40; all-electric bi-directional; max tool Ø 76 mm (full), 127 mm (adjacent pockets empty); max tool weight 5.4 kg; tool-to-tool 2.3 s; chip-to-chip 3.2 s

  • Optional 40+1: tool-to-tool 2.8 s; chip-to-chip 3.6 s; max tool Ø 76 mm (full), 152 mm (adjacent pockets empty)

• Feed rates: rapid traverse X/Y/Z 30.5 m/min; max cutting feed 21.2 m/min

• Motors/Drives: axis max thrust (X/Y/Z) 15,124 N; direct-coupled servo motors; brushless servo motors; Vector Drive (Y-Δ)

• Coolant & lubrication: 360-litre pull-out coolant tank; automatic lubrication system

• Construction & enclosure: rigid cast iron construction; triangular wide-base castings; heavy-duty sheet steel enclosure; 14-gauge cold-rolled steel; free-flow enclosure design; door opening width 1,549 mm

• Machine size & utilities: max height 3,378 mm; width 5,232 mm; depth 3,835 mm (door open); compressed air 113 l/min @ 6.9 bar; electrical 380 VAC, 3-phase, 50–60 Hz; installed power 28 kVA

• Controls/Functions: Rigid tapping; Remote Hand Jog (RJH); tool load monitoring; 5 spare M-functions

• Accuracy/Quality: 100% ballbar test for 3D squareness and machining accuracy

• Other: high-power cartridge spindle; high-speed side-mount tool changer (24+1); easily accessible coolant tank; 1-year parts and labour warranty

Additional equipment

• None listed (no robots, automation, chip conveyor, bar feeder, or other external accessories specified)
