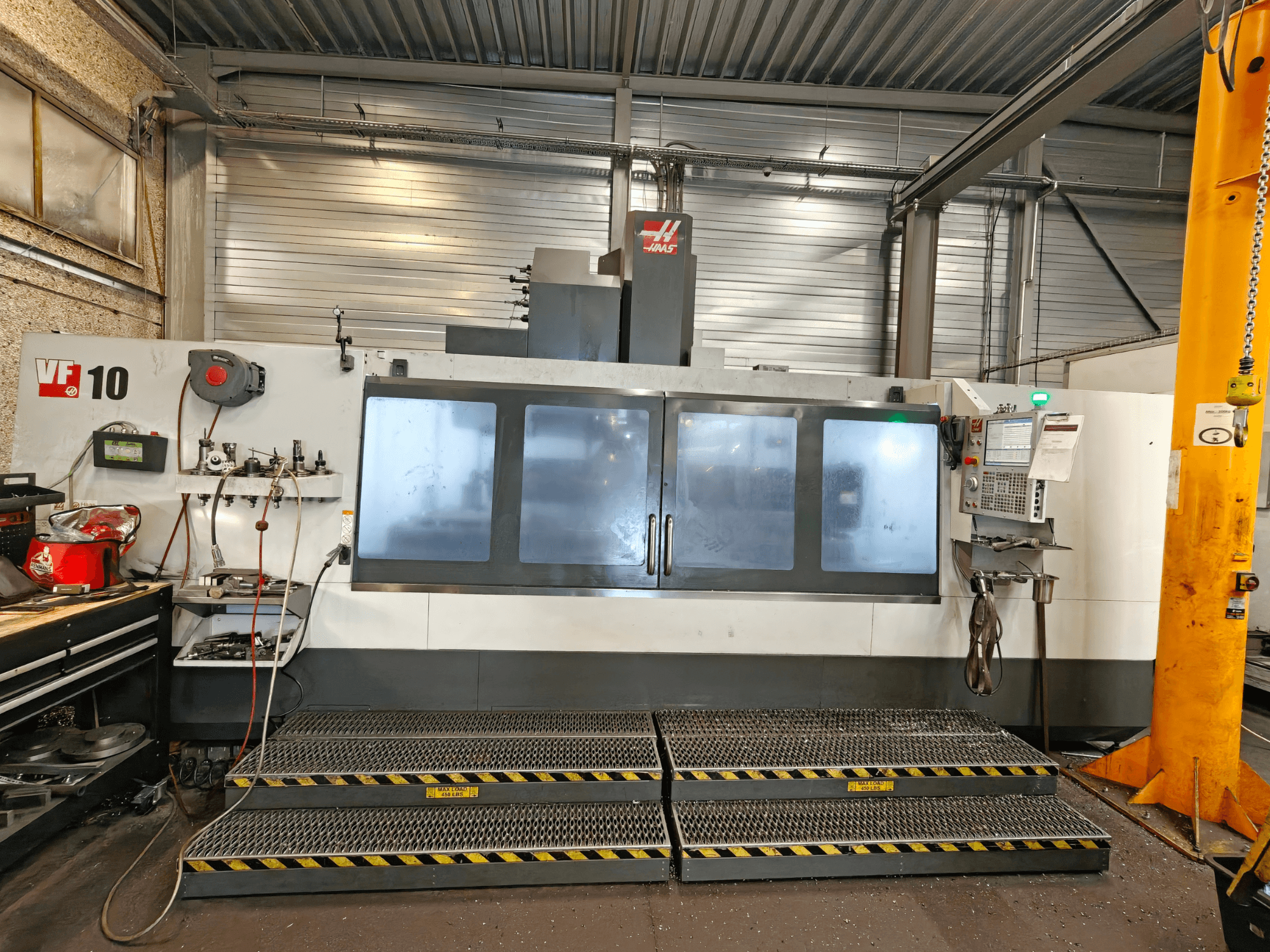

HAAS - VF-10/50BE-MIL-HAA-2022-00001

Spindle nose to table (max): 35.0 in (889 mm)

Spindle nose to table (min): 5.0 in (127 mm)

Spindle

• Max torque: 340 ft‑lbf @ 700 rpm (460 Nm @ 700 rpm)

• Drive system: 2‑speed gearbox

• Bearing lubrication: Air/oil injection

• Cooling: Liquid cooled

Table

• Length: 120.0 in (3048 mm)

• Width: 28.0 in (711 mm)

• T‑slot width: 0.626–0.630 in (15.90–16.00 mm)

• T‑slot center distance: 4.92 in (125 mm)

• Number of T‑slots: 5

• Max table load (evenly distributed): 4000 lb (1814 kg)

Feedrates

• Max cutting feed: 360 ipm (9.1 m/min)

• Rapids: X 360 ipm (9.1 m/min), Y 600 ipm (15.2 m/min), Z 600 ipm (15.2 m/min)

Axis motors (max thrust)

• X: 3400 lbf (15,124 N)

• Y: 4100 lbf (18,238 N)

• Z: 5600 lbf (24,910 N)

Tool changer

• Type: SMTC

• Capacity: 30+1

• Max tool diameter (all pockets full): 4.0 in (102 mm)

• Max tool diameter (adjacent pocket empty): 10.0 in (254 mm)

• Max tool length (from gage line): 16 in (406 mm)

• Max tool weight: 30 lb (13.6 kg)

• Tool‑to‑tool (avg): 4.2 s

• Chip‑to‑chip (avg): 6.3 s

General

• Coolant capacity: 95 gal (360 L)

Air requirements

• Air required: 4 scfm @ 100 psi (113 L/min @ 6.9 bar)

• Inline air hose: 3/8 in

• Coupler (air): 3/8 in

• Minimum air pressure: 80 psi (5.5 bar)

Electrical

• Drive system: 2‑speed gearbox

• Input AC voltage (3‑phase) low: 220 VAC, 70 A (FLA)

• Input AC voltage (3‑phase) high: 440 VAC, 35 A (FLA)

Dimensions – shipping

• Domestic pallet: 288 in x 102 in x 132 in (732 cm x 260 cm x 336 cm)

• Export crate: 288 in x 105 in x 134 in (732 cm x 267 cm x 339 cm)

• Domestic pallet with EC option: 288 in x 102 in x 140 in (732 cm x 260 cm x 356 cm)

• Export crate with EC option: 288 in x 105 in x 141 in (732 cm x 267 cm x 359 cm)
