➤ Used HAAS HASS VS4SS For Sale | gindumac.com

Show in original language

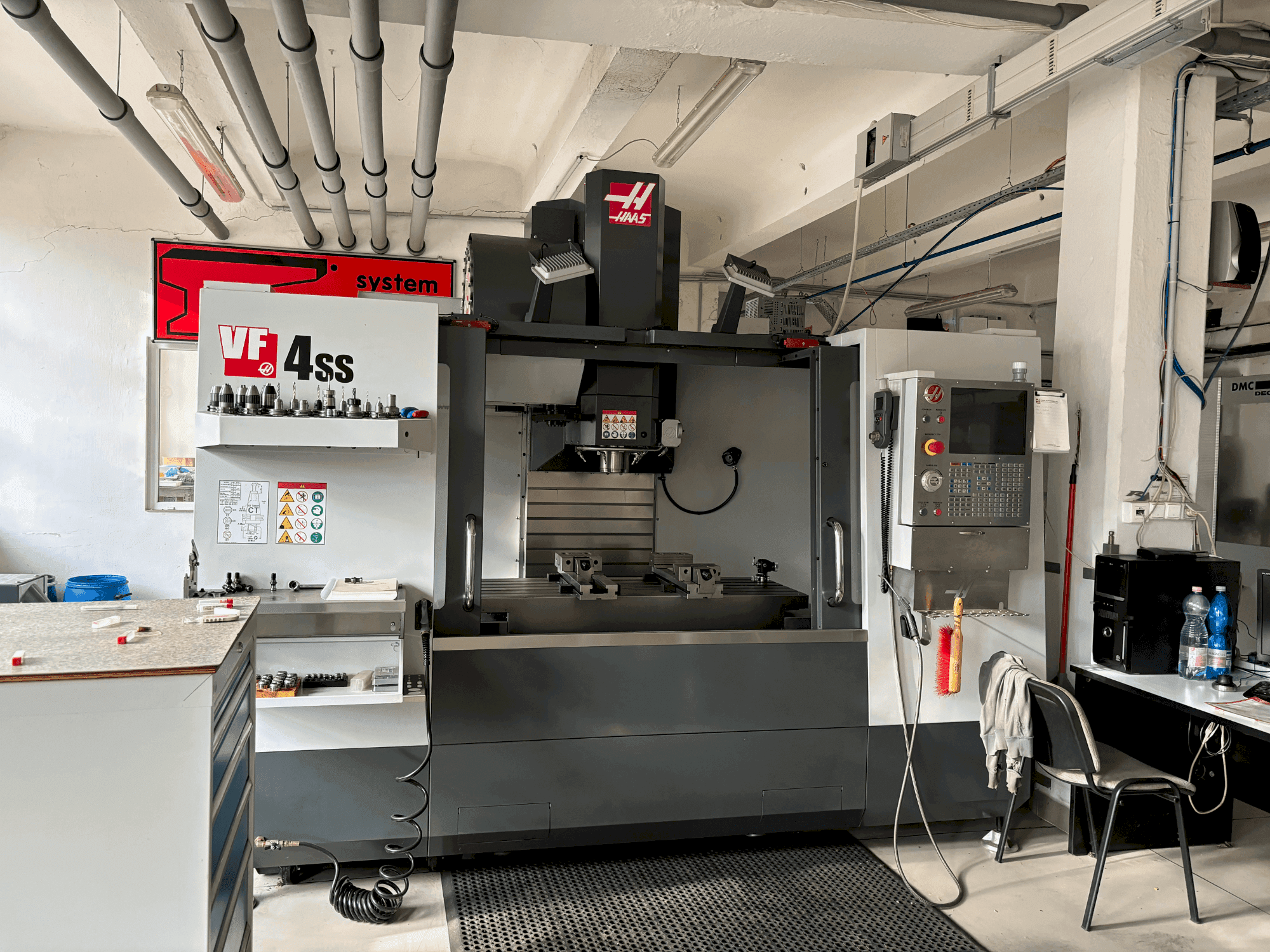

This 3-axis HAAS HASS VS4SS vertical machining centre was manufactured in 2016. It features a robust 30.0 hp spindle, capable of 12000 rpm and a maximum torque of 122.0 Nm. The machine offers a large working range with X-axis at 1270 mm, Y-axis at 508 mm, and Z-axis at 635 mm. If you are looking to get high quality machining capabilities consider the HAAS HASS VS4SS machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2016
MODEL: HASS VS4SS
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS HASS VS4SS

Control Unit

Control Brand: HAAS

Dimensions

Table Length: 1321 mm
Table Width: 495 mm

Technical Specification

Spindle Power: 22.4 kW
Spindle Speed: 12000 RPM

Additional Information

Additional equipment

Tool changer type: SMTC
Tool capacity: 30+1
Max tool diameter (full): 64 mm / Max tool diameter (adjacent empty): 127 mm / Max tool length (from gage line): 330 mm / Max tool weight: 5.4 kg / Tool change time (avg): 1.80 s / Time between tool changes (avg): 2.40 s
Coolant capacity: 208 liters
Options: 4th axis preparation, workpiece probe, tool probe, through-spindle coolant, WIFI, handwheel, electric cabinet cooling
Domestic pallet with transporter: 387 cm x 260 cm x 277 cm / Weight with transporter: 6260 kg

Machine Benefits

Technical Machine Benefits

Distance from spindle nose to table (max): 742 mm
Distance from spindle nose to table (min): 107 mm
Max weight on the table (evenly distributed): 794 kg
Table: t-slot width: 15. 90 mm to 16. 00 mm / t-slot center distance: 80 mm /number of standard t-slots: 5
Max torque: 122 nm at 2000 rpm / drive system: inline direct-drive / taper: ct40 | bt40 | hsk-a63 / bearing lubrication: air/oil injection / cooling: liquid cooled
Input ac voltage (3-phase) - low: 220 vac / full load amps (3-phase) - low: 70 a / input ac voltage (3-phase) - high: 440 vac / full load amps (3-phase) - high: 35 a

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
