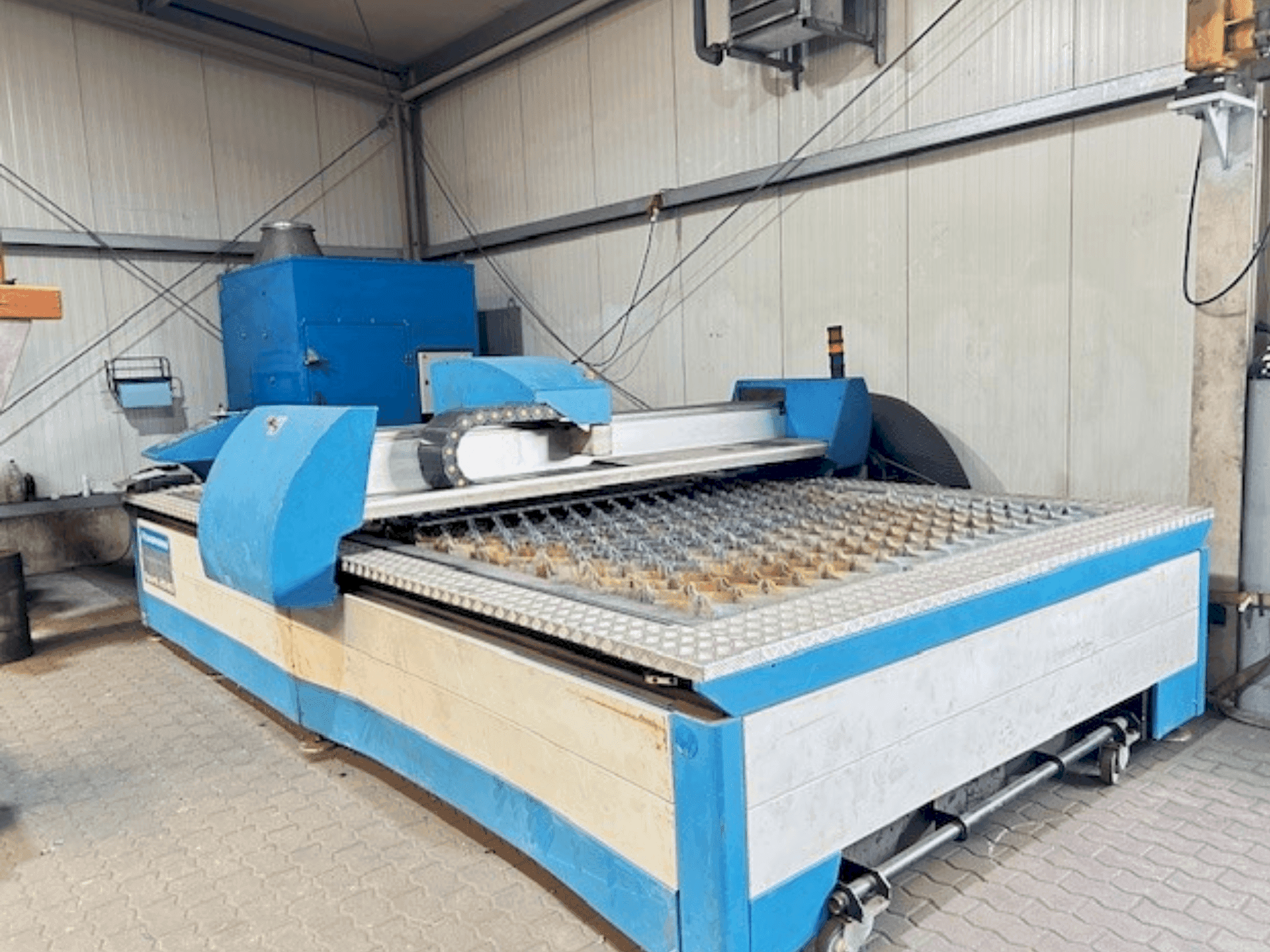

Front view of GASPARINI Spark 20040 machine
Front view of GASPARINI Spark 20040 machine

GASPARINI - Spark 20040DE-CUT-GAS-2008-00001

£ 10,548
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This GASPARINI Spark 20040 was manufactured in 2008. A robust plasma cutting machine, it features a substantial working area of 4000×2000 mm and can handle sheet metal up to 60 mm thick. With cutting speeds ranging from 0.1 to 30 m/min and a maximum positioning speed of 40 m/min, it's designed for efficiency. Consider the opportunity to buy this GASPARINI Spark 20040 plasma cutting machine. Contact us for more information about this machine.

Overview

  • brand: GASPARINI
  • year: 2008
  • MODEL: Spark 20040
  • application type: Cutting
  • Location: Germany
  • machine type: Plasma Cutting Machine

Additional Information

Machine Benefits

Technical Machine Benefits

  • Supply voltage: 220 v, 400 v, 440 v / frequency: 50-60 hz
  • Length x width (fully assembled): 4910 x 3150 mm/ machine height: 1581 mm / cutting surface height: 908 mm
  • Machine weight (without grid): 3300 kg / total machine weight: 3500 kg
  • Maximum sheet metal thickness: 60 mm / cutting speed: min: 0. 1 m/min, max: 30 m/min / max. Positioning speed (x-axis): 40 m/min / max. Acceleration (x-axis): 2 m/s²
  • Maximum power consumption: 8 kw (control panel), 19. 5 kw (plasma generator), 8 kw (fume extraction system)
  • Coolant temperature: 10−40°c / minimum coolant flow: 6 l/min / coolant pressure: 3. 5−4. 5 bar
  • Output current: 20−130 a / maximum output power: 19. 5 kw
  • Room requirement: 1400×600×300 mm
  • Cross-section of supply lines: 4mm² / supply cable cross-section: 10 mm² / fuse: 32 a slow-blow

Extra Information

without suction

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
