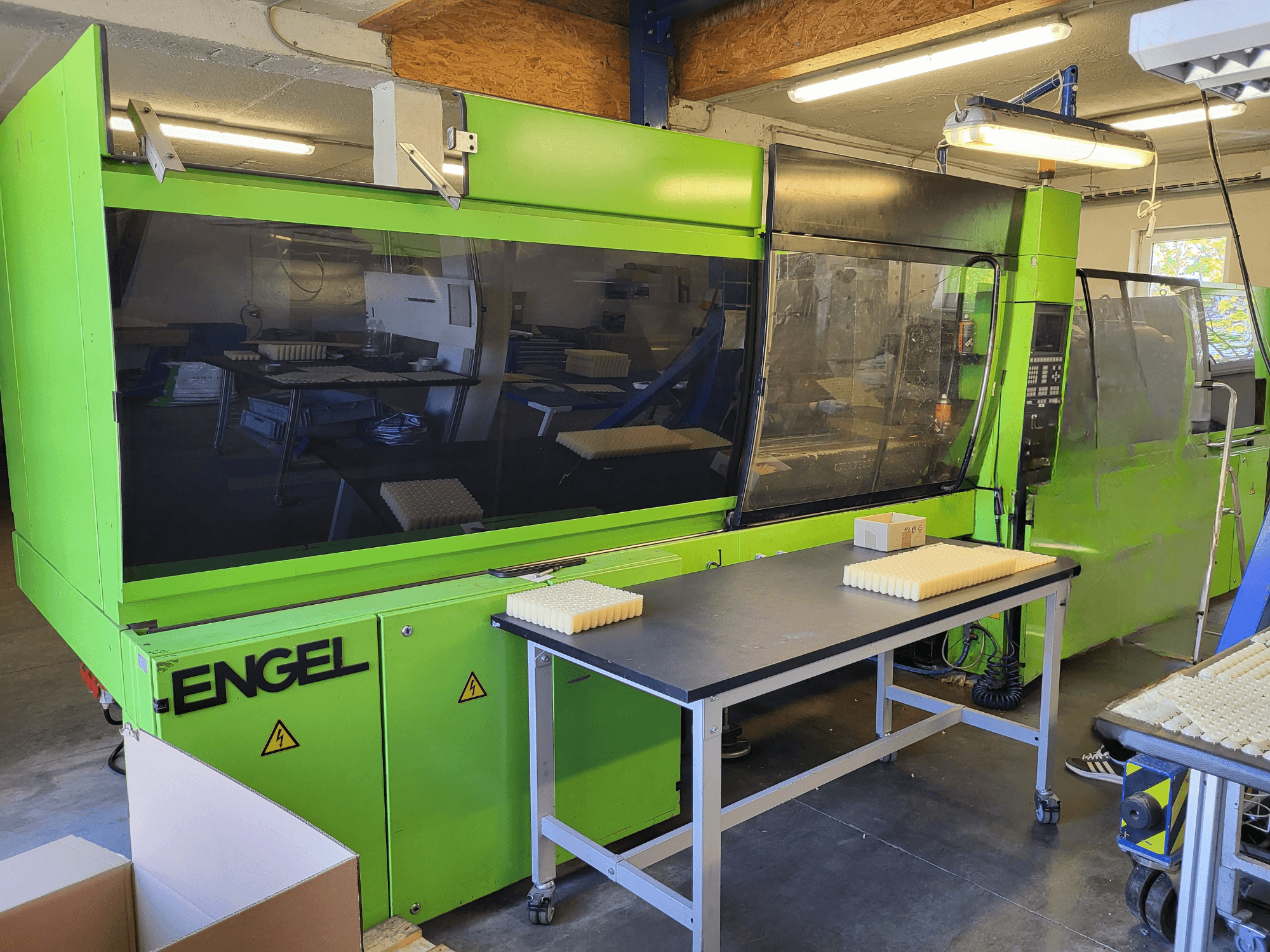

Hydraulic injection moulding machine manufactured in 2000. This Engel ES1800/300HL features a clamping force of 3000 kN and a maximum opening stroke of 850 mm. It offers multiple screw diameter options of 60 mm, 70 mm, and 80 mm, along with a mould installation height of 350 mm. If you are looking to get high-quality injection moulding capabilities, consider the Engel ES1800/300HL machine we have for sale. Contact us for further details.
Overview
- brand: Engel
- year: 2000
- MODEL: ES1800/300HL
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel ES1800/300HL
Dimensions
- Machine Height: 2460 mm
- Machine Length: 7290 mm
- Machine Weight: 22500 kg
Technical Specification
- Clamping Force: 3000 kN
Additional Information
Screw diameter options: 60 / 70 / 80 mm
Injection unit: ES 1800
Stroke volume (max): 763 / 1039 / 1357 cm³
Injection pressure (specific): 1960 / 1441 / 1105 bar
Injection pressure (specific, increased): 2360 / 1735 / 1330 bar
Opening stroke: 850 mm
Mould installation height (min): 350 mm
Max. daylight (distance between platens): 1200 mm
Mould fixing platen size (H x V): 1050 x 650 mm (standard) / 1050 x 900 mm (enlarged option)
Ejector stroke: 200 mm
Ejector force: 83 kN
Dry cycle / stroke (Euromap 6): 2.2 s / 300 mm
Oil capacity: 810 l
Pump power: 37 kW (standard) / 45 kW (N-Ausführung)
Heating power: 25.3 / 29.4 / 33.5 kW (standard) or 33.4 kW (N-Ausführung)
Number of heating zones: 5 (including nozzle)
Hopper capacity: 120 l
Control system: Microcomputer EC 100 regulated (standard) / CC 100 regulated (optional)
Standard equipment/features: 10-stage injection speed, 10-stage holding pressure profile, 5-stage screw speed, 5-stage back pressure profile, bimetallic cylinder, ceramic heating bands, energy-saving variable displacement pump hydraulics
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
