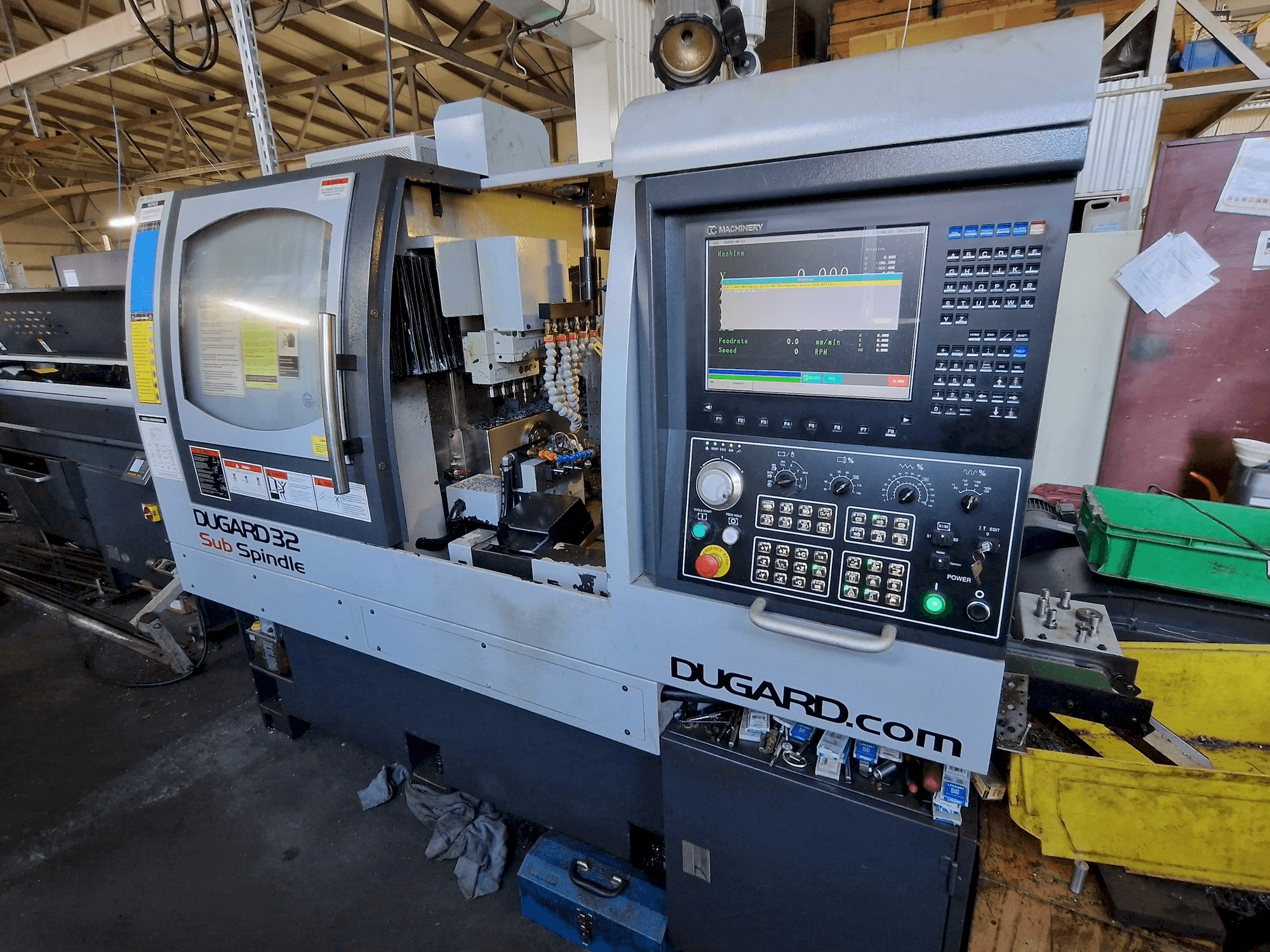

Front view of Dugard 32 Sub Spindle machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Dugard 32 Sub Spindle

Photo Gallery

Dugard - 32 Sub SpindlePL-TUR-DUG-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Dugard 32 Sub Spindle Automatic Lathe

Show in original language

This Dugard 32 Sub Spindle Automatic Lathe was manufactured in the year 2014. It is equipped with a CC Machinery control unit. The machine has a spindle speed of 4000 rpm, and includes a Bar feeder BARLOAD VITO – 4 meters and a Set of collets as additional equipment.

Overview

brand: Dugard
year: 2014
MODEL: 32 Sub Spindle
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine

Technical Information - Dugard 32 Sub Spindle

Dimensions

Machine Depth: 2420 mm
Machine Height: 1935 mm
Machine Weight: 3800 kg

Movement

X-axis Travel: 185 mm
Y-axis Travel: 490 mm
Z-axis Travel: 165 mm

Technical Specification

Spindle Speed: 4000 RPM

Additional Information

Additional equipment

Bar feeder BARLOAD VITO – 4 meters
Set of collets

Machine Benefits

Qualitative Machine Benefits

Radial live tooling max speed 6000 rpm
Number of axial live tooling 3
Axial tooling size er-20 axial live tooling servo motor 0,75 kw axial live tooling max speed 6000 rpm
Maximum turning dia. : 32mm sub spindle max rpm 4000rpm
X, z axis rapid travel 30 m/min minimum input unit 0. 001mm
Number of turning tools 4
Sub spindle servo motor 3. 5kw y, z axis servo motor 1kw
Number of axial live tooling 4 axial live tooling servo motor 0. 75kw axial live tooling maximum speed 6000rpm

Technical Machine Benefits

Max turning dia. 32mm
Max bar feeding dia. : 32mm
Rapid travel speed (x, y, z axis) 30 m/min
Spindle servo motor 5kw
X axis servo motor 1. 5kw
Y, z axis servo motor 1. 0kw
Centre height: 965mm
Number of radial live tooling – 4 pcs
Radial tooling size er-20
Radial live tooling servo motor 1,5 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
