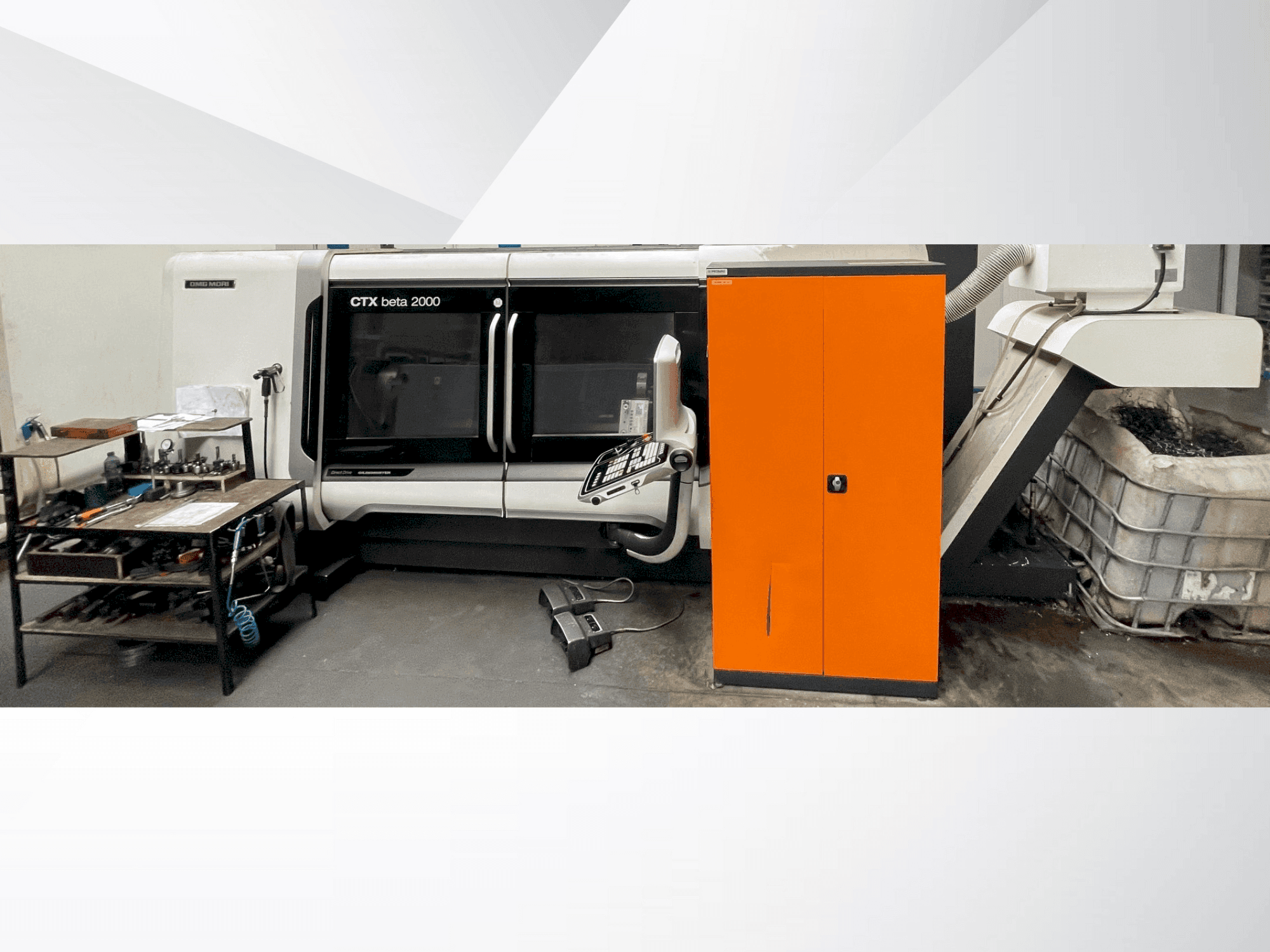

DMG MORI - CTX 2000PL-TUR-DMG-2020-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Ism102: 33 kw
  • - Ism102plus: 40 kw torque (100% ed)
  • - Ism102: 580 nm
  • - Ism102plus: 1700 nm
  • - Thrust (s6 - 40%): 9 / 9 / 13 kn
  • - Max turning length: 2000 mm
  • - Bar capacity: 102 mm
  • - Clamping chuck diameter: 315 mm
  • - Tool system: din 69880 (vdi 3425, page 2)
  • - Tool shank diameter: 50 mm
• Qualitative Machine Benefits:
  • - Large number of turning holders for vdi 50 turrets, holders for hobbing gears, grooves, gear teeth, etc. , large block holder (sauter) for holding boring tools, driven angle milling attachment (mt), 2 × driven straight holders (ews).
  • - Slide traverse x / ±y / z: 415 / ±75 / 2025 mm
  • - Hydraulic oil capacity: approx. 40 l
  • - Max pressure: 90 bar
  • - Clamping device pressure (max): 10–70 bar
  • - Coolant tank capacity: approx. 250 l
  • - Pump power: 0. 85 kw
  • - Pump nominal delivery at 5 bar: 20 l/min
  • - Room temperature: +15 to +35 °c
  • - Max relative air humidity: 75%

Extra information

• - Machine still under power. The machine is equipped with a fume extraction system, chip conveyor, Siemens CELOS control system with touchscreen, automatic tailstock, automatic steady rest unit, hydraulically clamping chuck, and increased coolant pressure through the tool spindle.
