➤ Used WAGNER WDE 500 PLUS For Sale | gindumac.com

Show in original language

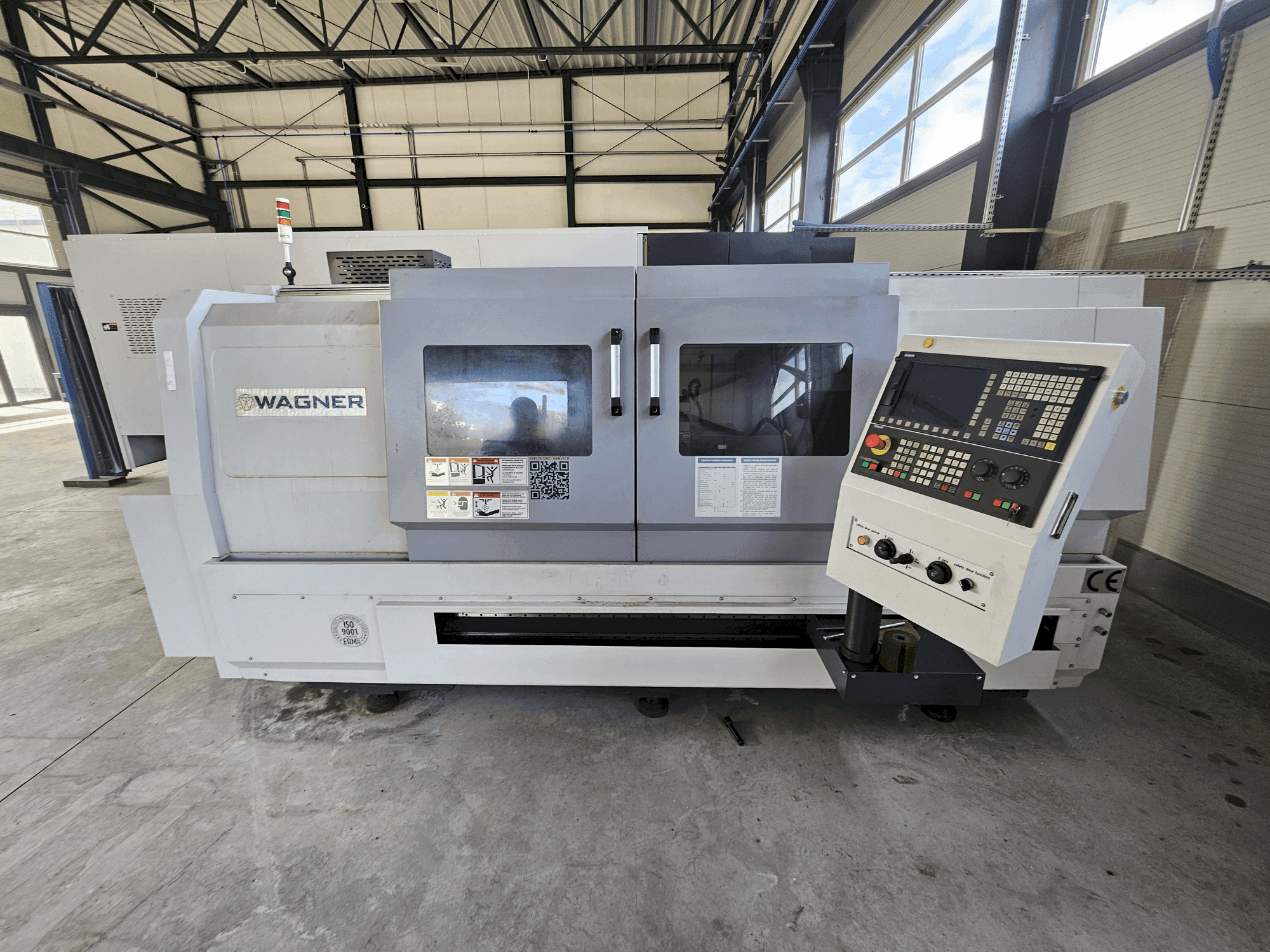

This Wagner WDE 500 PLUS was manufactured in 2021. It features a max turning diameter over bed of 500 mm and a spindle speed range up to 2200 rpm. Equipped with Siemens 828 B-T control for enhanced precision and a spindle motor power of 15 kW. Ideal for robust turning operations. Machine dimensions are 3400 × 1600 × 2100 mm, weighing approximately 5000 kg. For more information about this machine, please reach out to us.

Overview

brand: WAGNER
year: 2021
MODEL: WDE 500 PLUS
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - WAGNER WDE 500 PLUS

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 8287D

Dimensions

Machine Depth: 3400 mm
Machine Height: 2100 mm
Machine Weight: 5000 kg

Movement

Number of Axes: 2
X-axis Travel: 280 mm
Z-axis Travel: 1435 mm

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 2200 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine in very good condition, with very low working hours

Technical Machine Benefits

Right and left spindle rotation
Rapid feed (z, x axes): 15000 mm/min
Repeatability accuracy: ±0. 005 mm
Positioning accuracy: ±0. 01 mm
Max. Distance between centers: 1500 mm
Bed width: 500 mm
Spindle nose camlock: din 55029 kk8
Linear guides on x and z axes
Precision ball screws, hardened and ground
Telescopic cover on z-axis

Extra Information

Tail Stock Tailstock adjustment: manual Tailstock quill travel: 100 mm Mount Position (Assembly) Electronic handwheels with incremental preselection Feed lever with latch function Rapid feed override with selector switch Movable operator panel Constant cutting speed Media Automatic central lubrication Work lamp Complete coolant system Enclosure with 2 sliding doors and safety glass windows 1 set of foundation bolts CE compliance Control Unit Siemens 828 B-T control ShopTurn operation with Manual Machine mode

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
