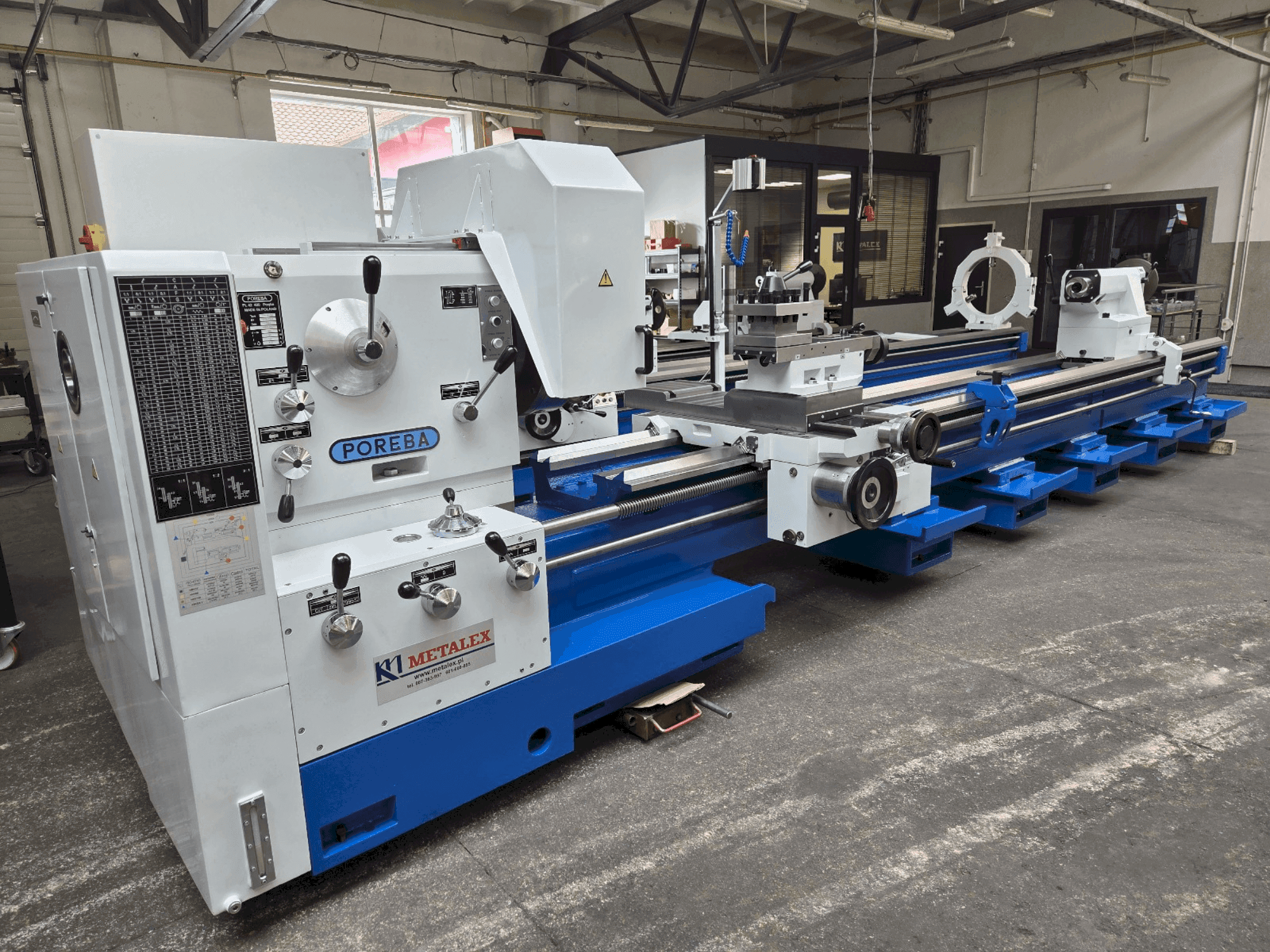

This Poreba TPK 90/5M horizontal turning machine was manufactured in 1984. It features a swing over bed of 930 mm, a spindle bore diameter of 95 mm, and can handle workpiece weights up to 9,000 kg with two steady rests. It includes a tailstock, coolant pump, chuck guard, and tool holder. Consider the opportunity to buy this Poreba TPK 90/5M horizontal turning machine. Contact us for more information about this machine.

Overview

brand: Poreba
year: 1984
MODEL: TPK 90/5M
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine

Technical Information - Poreba TPK 90/5M

Dimensions

Machine Depth: 7500 mm
Machine Height: 1800 mm
Machine Weight: 7300 kg

Movement

Number of Axes: 2

Technical Specification

Spindle Power: 16 kW
Spindle Speed: 800 RPM

Additional Information

Additional equipment

Standard equipment includes Coolant pump, Chuck guard, Tool holder
Optional equipment available: 3- or 4-jaw chuck, various diameters and versions
Digital Read Out (DRO) for 2 axes, incl. display, installation, and calibration
Steady rest 40–400 mm with rollers
Steady rest 400–600 mm with rollers
MULTIFIX quick-change tool post

Machine Benefits

Technical Machine Benefits

Distance between centers / turning length: 5000 mm
Swing in gap: 1200 mm
Maximum workpiece weight between centers: 6000 kg
Maximum workpiece weight between centers + 1 steady rest: 7500 kg
Maximum workpiece weight between centers + 2 steady rests: 9000 kg
Number of feeds: 80
Feed range (mm/rev): - longitudinal: 0. 1 – 12. 8, - cross: 0. 05 – 6. 4

Extra Information

Machine completly overhauled. Comes with 12 months warranty.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
