DMG MORI Sprint 42/10 linear

Photo Gallery

DMG MORI - Sprint 42/10 linearAT-TUR-DMG-2021-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI Sprint 42/10 linear | Swiss Type Lathe

Show in original language

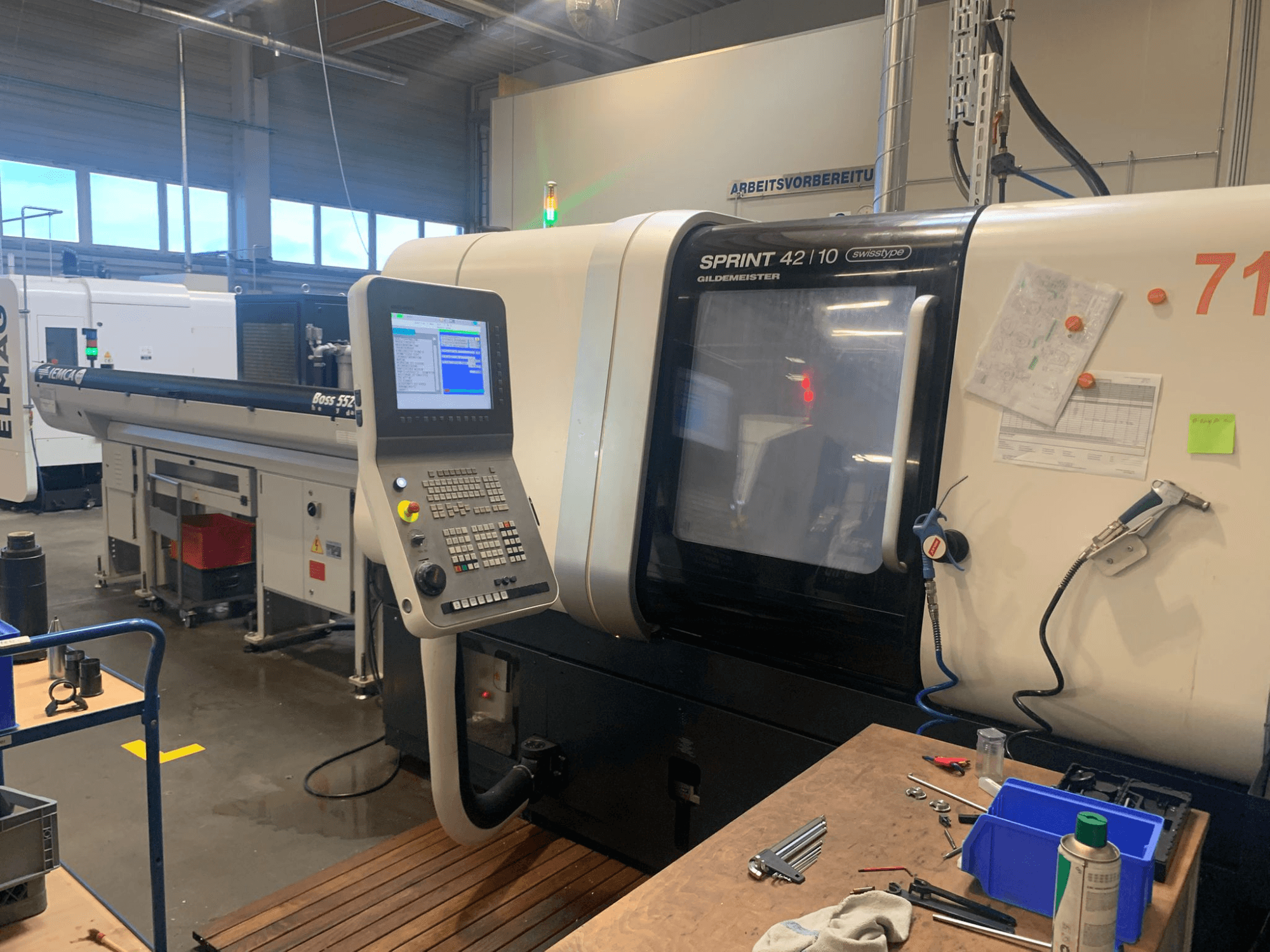

This 10-axis DMG MORI Sprint 42/10 linear was manufactured in 2021. It features a maximum spindle speed of 6500 1/min and includes a high-pressure cooling system of 20 bar. The machine is equipped with a bar feeder of 3200 mm length and offers advanced capabilities for precision turning. If you are looking to get high-quality turning capabilities, consider the DMG MORI Sprint 42/10 linear machine we have for sale. Contact us for further details.

Overview

brand: DMG MORI
year: 2021
MODEL: Sprint 42/10 linear
application type: Turning
Location: Austria
machine type: Swiss Type Turning Machine
control unit brand: MITSUBISHI

Technical Information - DMG MORI Sprint 42/10 linear

Control Unit

Control Brand: MITSUBISHI
Control Model: M730UM

Dimensions

Machine Weight: 6000 kg

Movement

Number of Axes: 10
X-axis Travel: 50 mm
Y-axis Travel: 350 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Max. Bar Diameter: 42 mm
Spindle Speed: 6500 RPM
Through-spindle Coolant: Yes

Additional Information

Maximum Speed Spindle 1: 6500 1/min
Maximum Speed Spindle 2: 6500 1/min
Max. travel Z-axis 120 mm
Electrical Phases: L1,L2,L3,N,PE
Power Consumption: 57 kVA
Maximum Input Current: 82 A
Main Fuse: 100 A
Short Circuit Rating: 5 kA
Maximum Voltage: 440 V
Operating Voltage: 400 V
Voltage Tolerance: ±10%
Frequency: 50 Hz
AC Voltage: 230 V
DC Voltage: 24 V
Counter Spindle Flushing: Included
Counter Spindle Inner Cooling: Included
Main Spindle Inner Cooling: Included
Radial Driven Drilling and Milling Unit for Revolver: Included
Axial Driven Drilling and Milling Unit for Revolver: Included
Angular Adjustable Driven Drilling and Milling Unit: Included
High Pressure Cooling System: 20 bar
Bar Feeder: IEMCA BOSS 552
Bar Feeder Length: 3200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
