➤ Used DMG MORI NHX5000 For Sale | gindumac.com

Show in original language

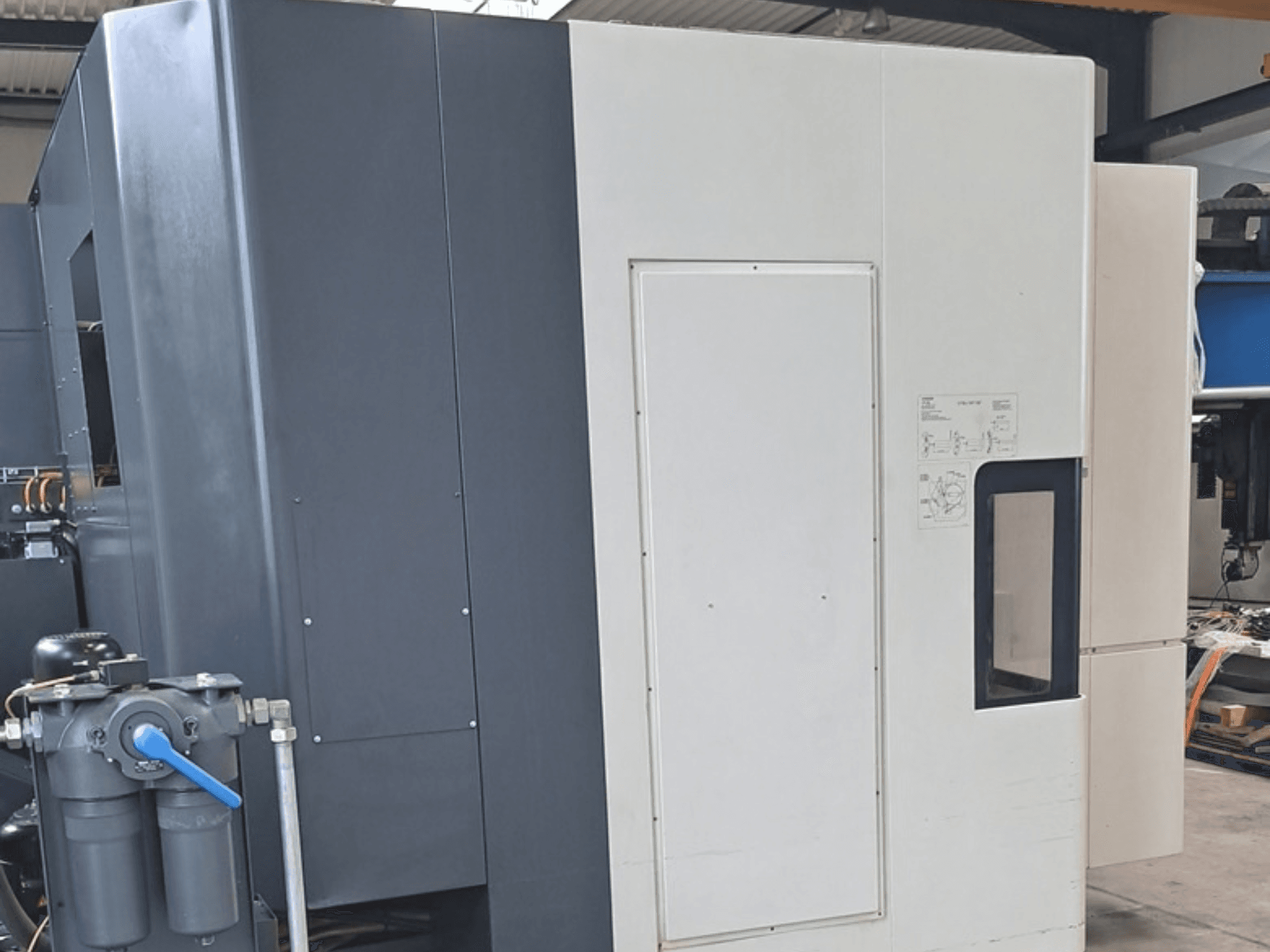

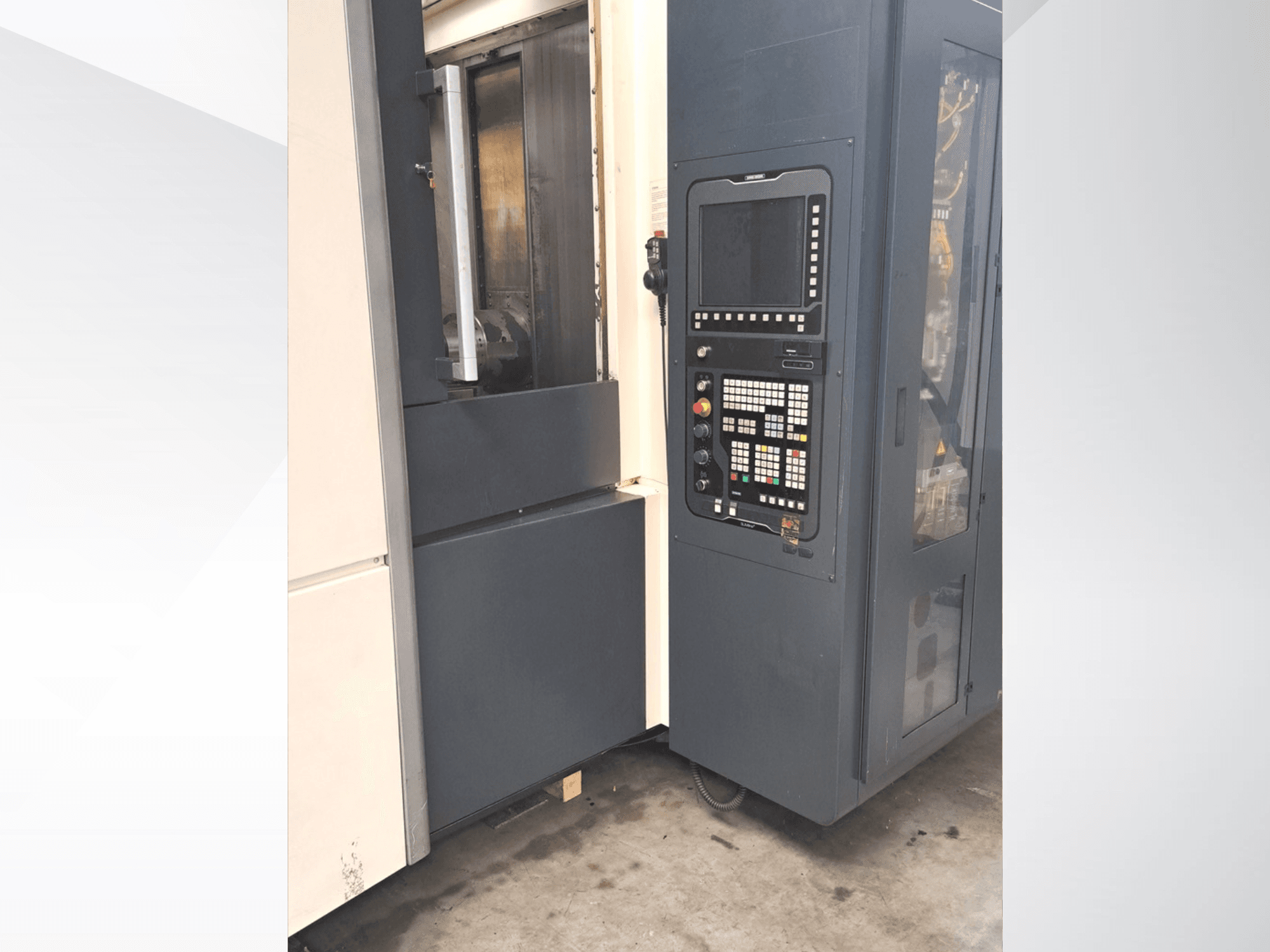

This 4-axis DMG MORI NHX5000 horizontal machining centre was manufactured in 2014. It features a travel of 730 mm in both the X and Y axes, and 880 mm in the Z axis. The machine has a maximum spindle speed of 12,000 rpm and can handle workpieces weighing up to 500 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI NHX5000 machine we have for sale. Contact us for further details.

Overview

brand: DMG MORI
year: 2014
MODEL: NHX5000
production hours: 15894
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - DMG MORI NHX5000

Control Unit

Control Brand: SIEMENS
Control Model: 840D sl

Dimensions

Machine Height: 2800 mm
Machine Length: 5500 mm
Machine Weight: 11500 kg
Machine Width: 3000 mm
Table Length: 500 mm
Table Load: 500 kg
Table Width: 500 mm

Movement

Number of Axes: 4
X-axis Travel: 730 mm
Y-axis Travel: 730 mm
Z-axis Travel: 880 mm

Technical Specification

Spindle Speed: 12000 RPM
Taper Size: SK 40
Tool Stations: 40

Additional Information

- Max. Torque: 102 Nm

- Max. Workpiece Weight per Pallet: 500 kg

- Max. Workpiece Diameter: 630 mm

- Max. Workpiece Height: 900 mm

- B-axis Indexing (Table): 360 x 1 degree

- Max. Feed Rate: 60,000 mm/min

- Rapid Traverse: 60 m/min

- Jog Feed Rate: 0 – 5,000 mm/min

- Total Power Requirement: 57 kVA

- Space Requirement (LxWxH): 5.5 x 3.0 x 2.8 m

- Pallet Changer: 2-fold, pallet size 500 x 500 mm

- Equipment & Accessories: Chip conveyor, high-pressure coolant unit (40 bar), internal coolant supply (IKZ), tool changer, documentation, Renishaw PP60op measuring probe

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
