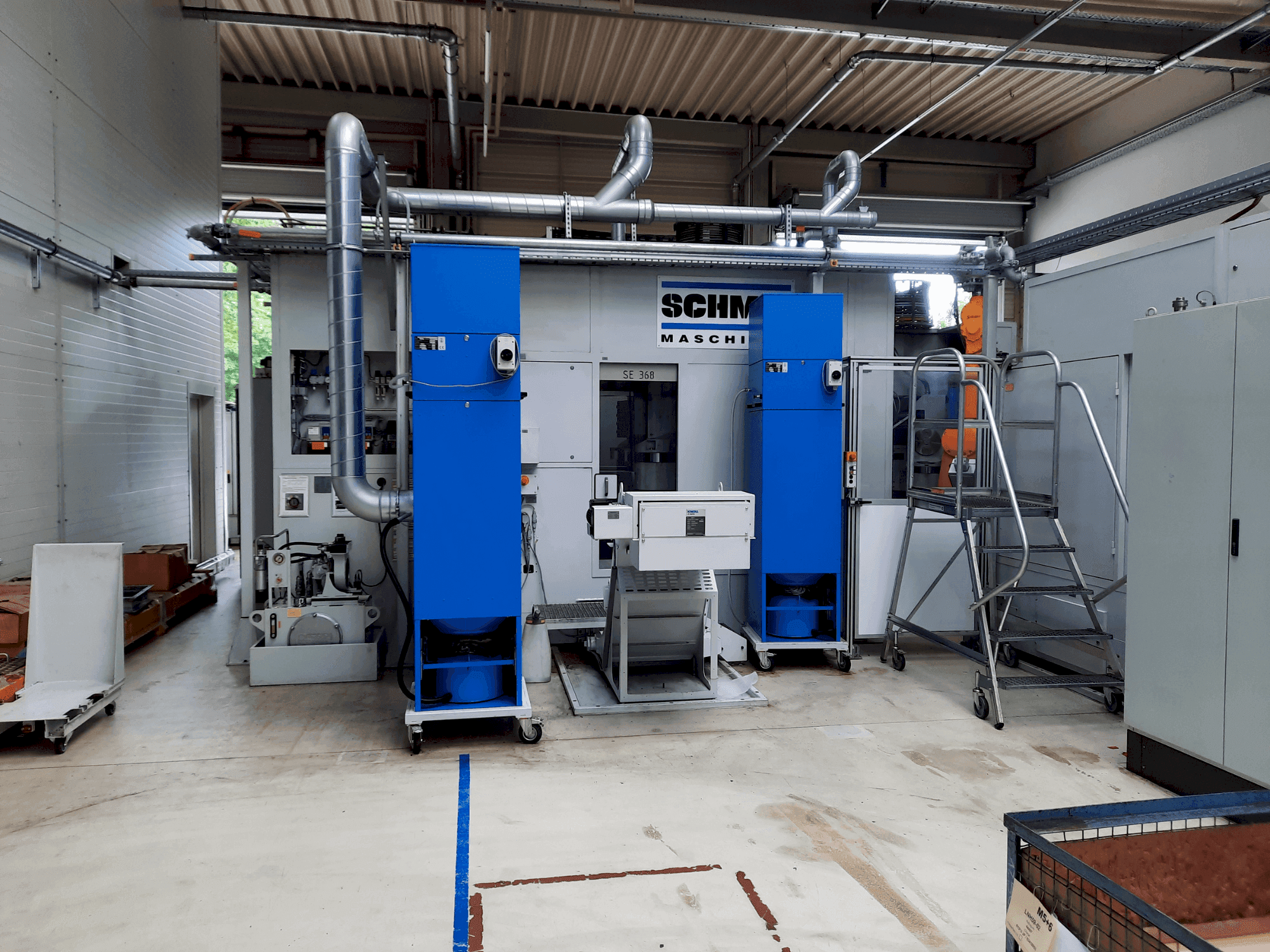

This 5-axis SCHMID SE 368 horizontal machining centre was manufactured in 2019. It features a Siemens Sinumerik 840 D SL control, rapid traverse rates of 75/40/90 m/min in X/Y/Z, and a shuttle table. Equipped with dual NC rotary swivelling units, a 30-fold tool changer, and HSK-A63 tool holder. Max speed is 10,000 rpm. Includes a chip conveyor and recooling system. A great opportunity to buy this SCHMID SE 368 horizontal machining centre. Contact us for further details regarding this horizontal machining centre.
Overview
- brand: SCHMID
- year: 2019
- MODEL: SE 368
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - SCHMID SE 368
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840 D SL
Dimensions
- Machine Weight: 21000 kg
Movement
- X-axis Travel: 400 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 550 mm
Technical Specification
- Spindle Speed: 24000 RPM
Additional Information
Additional equipment
- Double spindle
- Shuttle table
- 2x 2 NC rotary swivelling units
- Switch cabinet system
- Chip conveyor Knoll 600K-1 2019
- Hydraulic unit
- Filter system
- Recooling system Lahntechnik KOF1803-100 2020
- Number of tool magazine positions: 2x 30
- Rotary table (NC / hydraulic clamping) : n x 360o, vertical axis,
Machine Benefits
Technical Machine Benefits
- Ibag three-phase main drive : s1-100% 40 kw / s6-40% 52 kw
- Key performance data working spindle kw s1 : 3 12 29 40 40
- Spindle speeds approx. 1/min : 1,000 5,000 10,000 20,000 24,000
- Torque approx. Nm : 27 27 27 19 17
- Tool diameter with free neighbouring positions : 125 mm
- Swivelling table (nc / hydraulic indexing) : vertical axis, 0° - 180°, max. Rotation angle in connection with 5th axis : +/- 150°
- Rotary table diameter : 400 mm, rotary table (horizontal axes u1-u2/ v1-v2), rotary table (nc / hydraulic clamping) : n x 360o, vertical axis, rotary table diameter : 330 mm
- Pallet clamping : 2 zero point clamping modules/ table
- Position measuring systems : absolute position measuring systems
- Position tolerance x - y - z : 0. 008 mm (vdi/dgq 3441)
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
