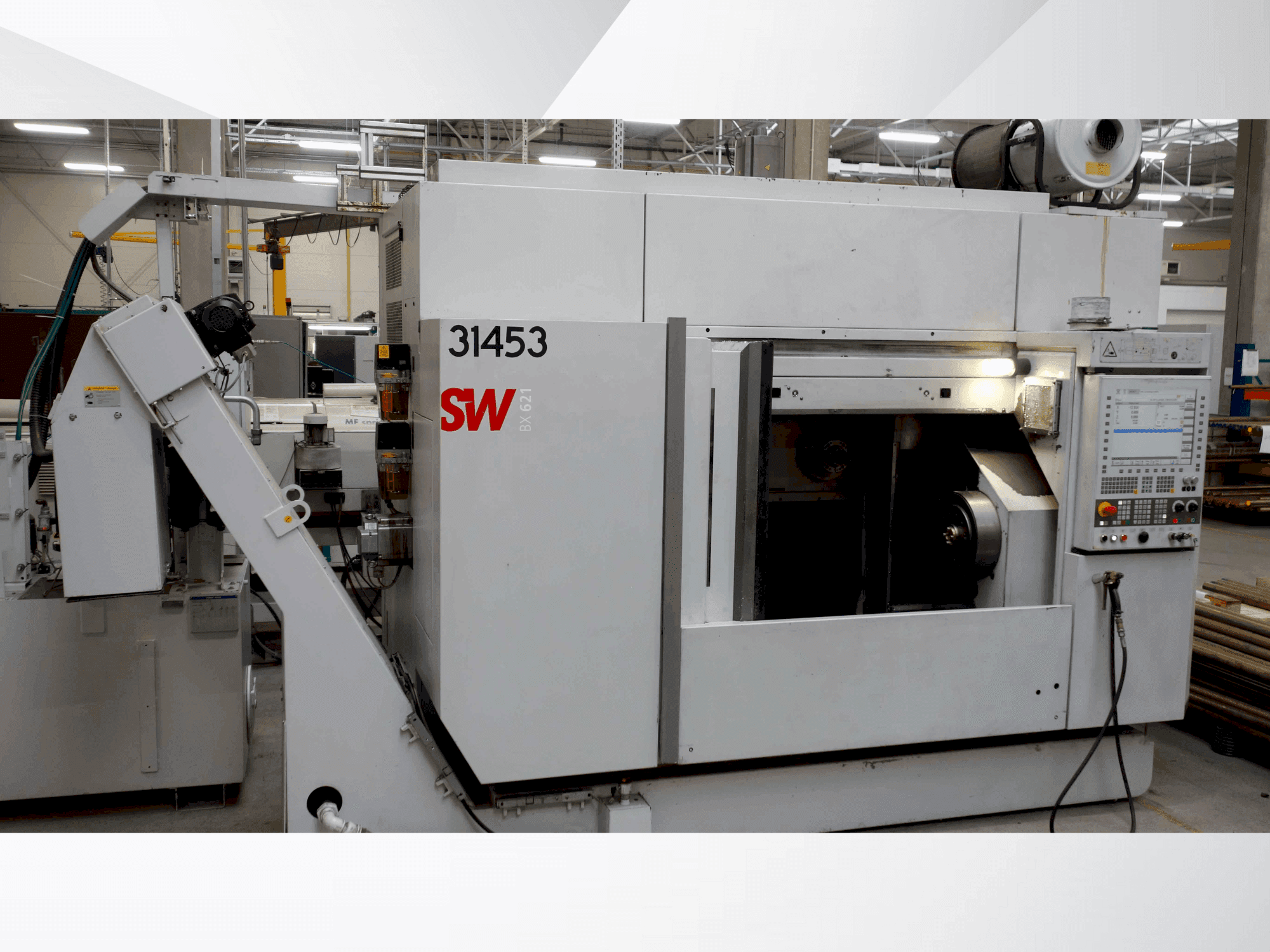

Front view of SW BX 621  machine

SW - BX 621DE-MIL-SWX-2013-00001

£ 103,800
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis SW BX 621 horizontal machining center was manufactured in 2013. It features a robust SINUMERIK 840D sl CNC control system and dual liquid-cooled motorized spindles, each offering up to 6,000 rpm and 26 kW power. The machine supports a maximum tool diameter of 115mm and a tool length of 300mm, with a rapid traverse speed of up to 60 m/min. Ideal for precision machining, the SW BX 621 machine we have for sale. Contact us for more information.

Overview

  • brand: SW
  • year: 2013
  • MODEL: BX 621
  • application type: Milling
  • Location: Switzerland
  • machine type: Horizontal Machining Centre
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - SW BX 621

General Data

  • Measurements width: 5050 MM
  • Measurements depth: 5800 MM
  • Measurements height: 3300 MM
  • Machine weight: 12500 KG

Control Unit

  • Model: SINUMERIK 840D sl
  • Brand: SIEMENS

Main drive

  • Spindle speed range: 1 - 6,000 1/MIN
  • Spindle motor power: 6 kW each (S6/25% ED), 21 kW each (S1/100% ED)
  • Tool taper: HSK-A100

Movement

  • X-AXIS Movement: 600 mm
  • Y-AXIS Movement: 525 mm (extendable to 890 mm)
  • Z-AXIS Movement: 400 mm

    Additional Equipment

    • - Liquid-cooled motorised spindle in AC synchronous technology

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Swivelling table (a-axis): direct-driven, horizontal nc rotary table with counter bearing
        • - Max. Fixture / workpiece dimensions: Ø 630 mm x 1420 mm
        • - Max. Fixture / workpiece weight: 600 kgmax. Fixture / workpiece weight: 600 kgmax. Fixture / workpiece weight: 600 kg
        • - Spindle arrangement: horizontal, side by side
        • - Spindle distance: 600 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
