Starrag Heckert - HEC 500 H/VDE-MIL-STA-2008-00002

• Package: 2 horizontal machining centers + shared pallet storage system

  • STARRAG HECKERT HEC 500 H/V (2008)

    • Control: Siemens SINUMERIK 840D Powerline

    • Head: Swivelling H/V head (Horizontal/Vertical)

    • Pallet size: 500 x 500 mm

    • Travels: X 800 mm / Y 800 mm (vertical position) / Z 680 mm

    • Rapid traverse: 60 m/min

    • Spindle power: 37 kW

  • STARRAG HECKERT HEC 500 H (2009)

    • Control: Siemens SINUMERIK 840D Powerline

    • Pallet size: 500 x 500 mm (DIN 55201)

    • Travels: X 800 mm / Y 650 mm / Z 680 mm

    • Rapid traverse: 60 m/min

    • Spindle torque: 82 Nm

    • Max. tool weight: 25 kg

    • Max. tool diameter: 80 mm (160 mm with free adjacent places)

    • NC rotary table (B-axis): 360,000 x 0.001°

• Note: Tool breakage detection system is out of service

Additional equipment

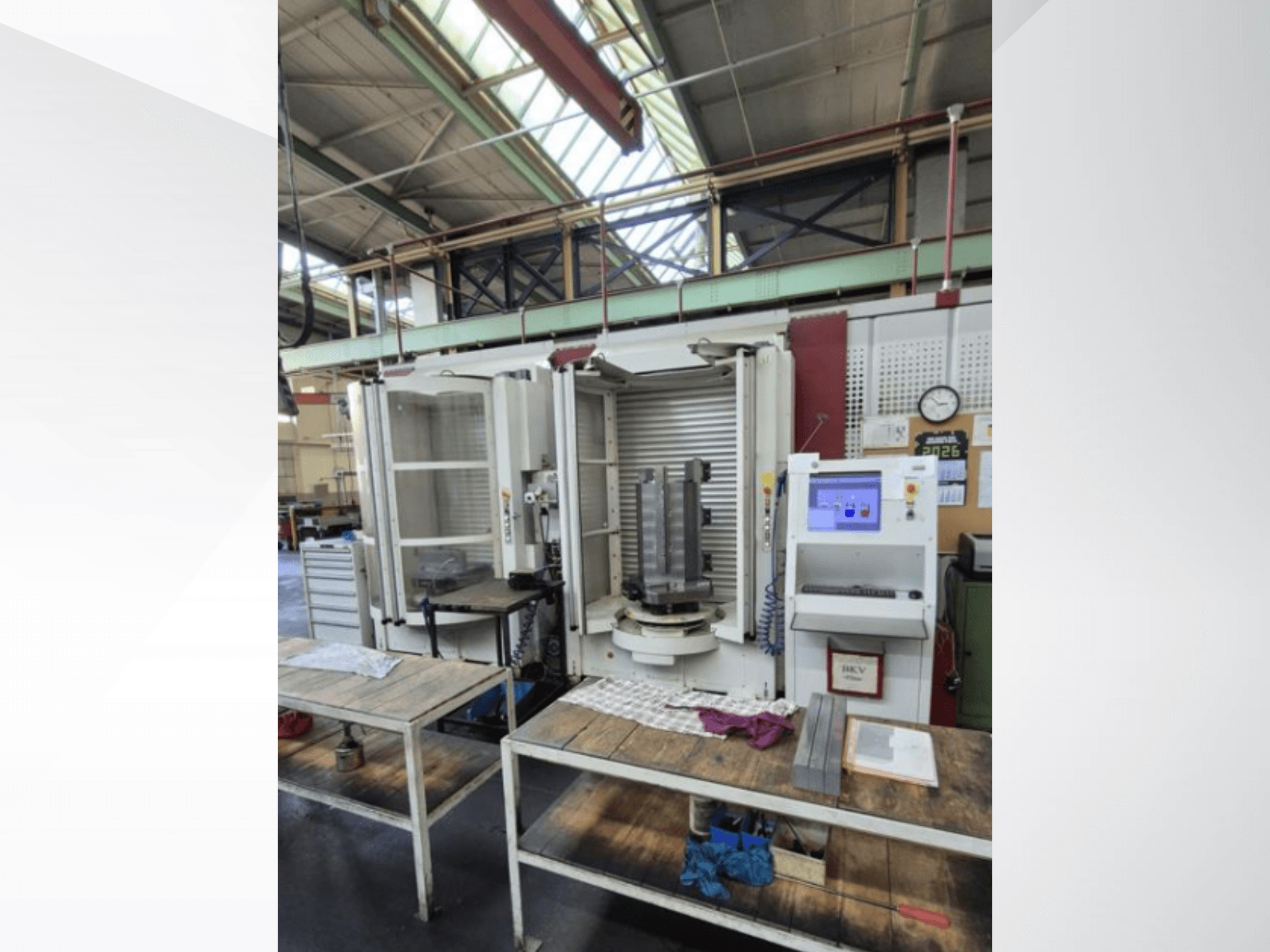

• Fastems FPC 1500 Linear Pallet Pool (shared by both machines)

• Automation: Both machines connected to the Fastems FPC 1500 LPP

• For HEC 500 H (2009):

  • Coolant system with paper band filter

  • Internal coolant supply, 50 bar

  • Chip conveyor
