DMG - HSC 105 linearCZ-MIL-DMG-2012-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- DMG HSC 105 linear Vertical Machining center
Show in original language

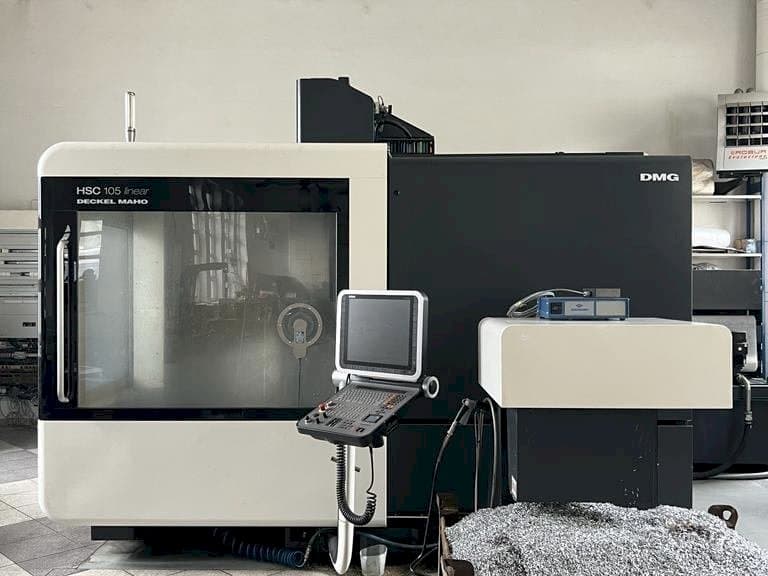

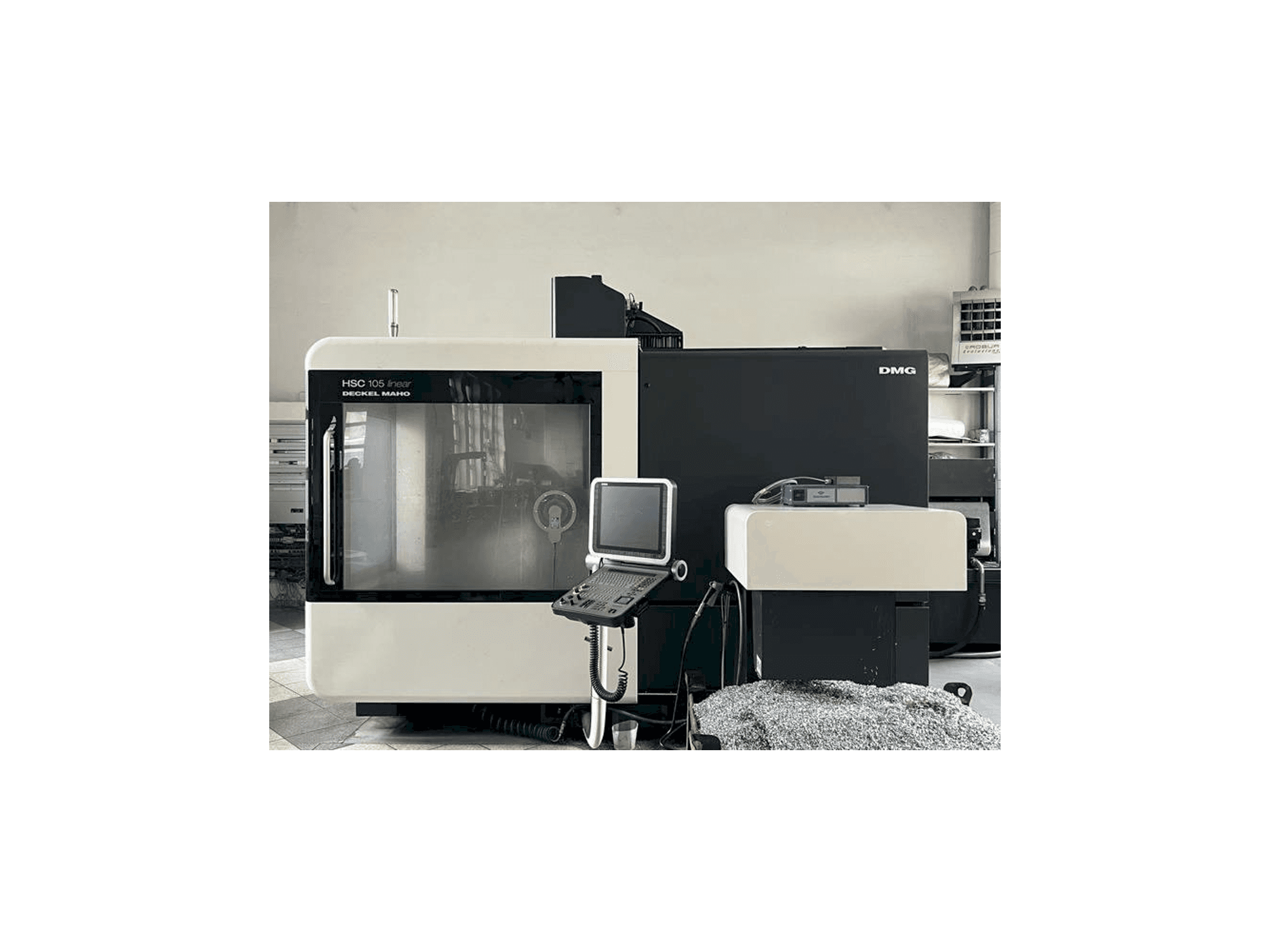

This DMG HSC 105 linear Vertical Machining center was manufactured in the year 2012 in Germany. It is equipped with a Heidenhain iTNC 530 and has 5 axis. The machine has a spindle speed of 28000 rpm, is in good condition and well maintained.
Overview
- brand: DMG
- year: 2012
- MODEL: HSC 105 linear
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG HSC 105 linear
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Depth: 2935 mm
- Machine Height: 3180 mm
- Machine Weight: 13700 kg
- Table Length: 950 mm
Movement
- Number of Axes: 5
- X-axis Travel: 1050 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 560 mm
Technical Specification
- Number of Tools: 120
- Spindle Speed: 28000 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition!
- Demo machine bought as new in 2015
- Only used in small -scale/one-piece part production
- 2023 - new spindle installed
Technical Machine Benefits
- C axis 360 degrees
- B axis +10 degrees/-110 degrees
- Table diameter 950 mm
- Feedrate 90 m/min.
- Rapid feedrate 90 m/min.
- Spindle motor power (40/100%) 55/43. 5 kw
- Spindle motor torque max. 47. 8 nm (40% dc)
- Through spindle coolant 40 bar with paper type filter
- 3d quickset
- Tool laser probe renishaw, infrared probe pp60 optical
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
