➤ Used KOVOSVIT MAS MCV 1000 Speed 5AX | Machining Center

Show in original language

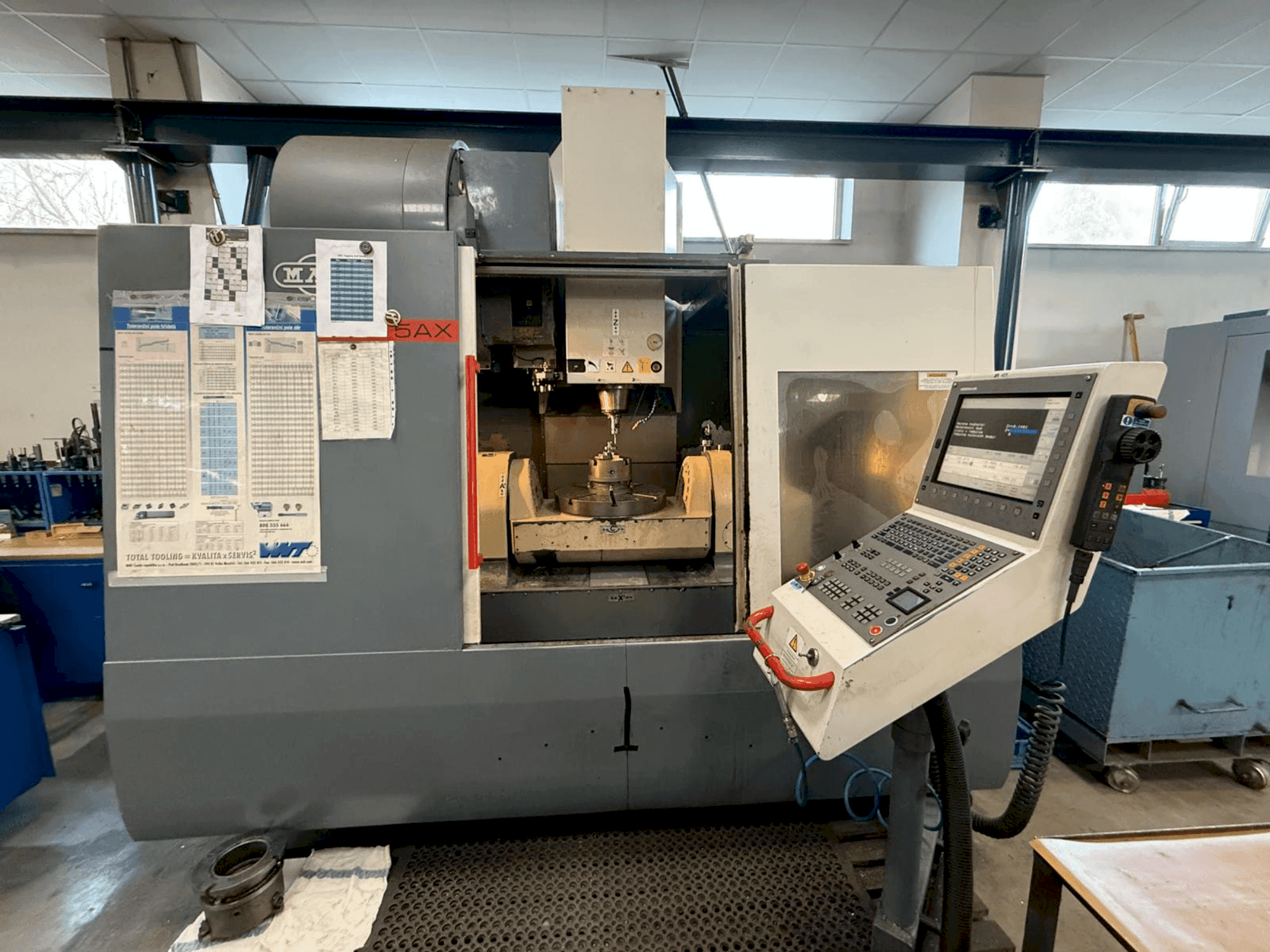

This 5-axis KOVOSVIT MAS MCV 1000 Speed 5AX was manufactured in 2011. It features a spindle speed range of 20-12,000 rpm and a spindle drive power of 33/45 kW. The machine can handle a maximum tool weight of 6.5 kg and includes a 30-tool magazine. With a table load capacity of 400 kg and dimensions of 5145 x 3665 x 3330mm, it's ideal for complex machining tasks. If you are looking to get high-quality milling capabilities consider the KOVOSVIT MAS MCV 1000 Speed 5AX machine we have for sale. Contact us for more information.

Overview

brand: KOVOSVIT MAS
year: 2011
MODEL: MCV 1000 Speed 5AX
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1000 Speed 5AX

General Data

Measurements width: 3665 mm
Measurements depth: 5145 mm
Measurements height: 3330 mm
Machine weight: 11800 kg

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Main drive

Spindle speed range: 20 - 12000 1/MIN
Spindle motor power: 33/45 kW
Number of axis: 5

Movement

X-AXIS Movement: 900 mm
X-AXIS Rapid traverse: 40000 mm/min
Y-AXIS Movement: 590 mm
Y-AXIS Rapid traverse: 40000 mm/min
Z-AXIS Movement: 520 mm
Z-AXIS Rapid traverse: 40000 mm/min

Table

Table load: 400 kg

Tools

Number of index: 30
Max weight: 6.5 kg
Max tool diameter: 80 mm
Max tool length: 350 mm

Additional Equipment

- Including full tooling

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed range (x, y, z): 1 - 15000 mm/min
- - Table clamping surface: Ø 520 mm
- - C-axis rotation: 360°
- - A-axis tilt: ± 110°
- - Max. Table speed: 20 rpm
- - Max. Torque (s1/s6): 157/215 nm
- - Total power input: 55 kva

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
