DMG - ULTRASONIC 10HU-MIL-DMG-2011-00003

Name: DMG ULTRASONIC 10
Brand: DMG
SKU: HU-MIL-DMG-2011-00003
Price: 30585 GBP
Availability: InStock

£ 30,585

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG ULTRASONIC 10 For Sale | gindumac.com

Show in original language

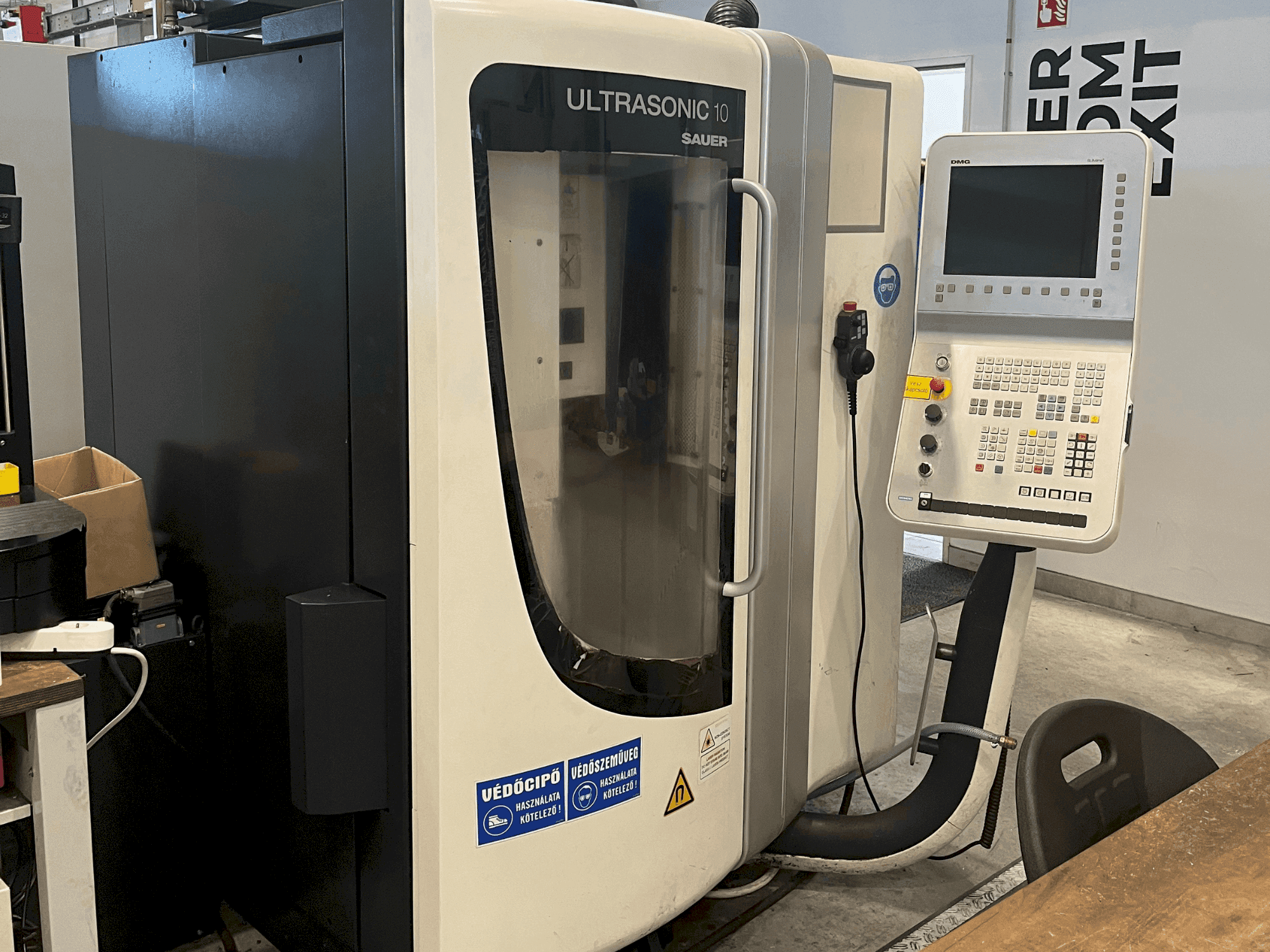

This 5-axis DMG ULTRASONIC 10 was manufactured in 2011. It features a Siemens Sinumeric 840D control, a spindle with 40,000 rpm max speed, and a tool magazine with 60 slots. The machine offers a compact footprint and includes options like a DMG PP-400 Infrared probe and RS NC-4 tool measurement. If you are looking to get high-quality milling capabilities consider the DMG ULTRASONIC 10 machine we have for sale. Contact us for more information about this machine.

Overview

brand: DMG
year: 2011
MODEL: ULTRASONIC 10
production hours: 937
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DMG ULTRASONIC 10

Control Unit

Control Brand: SIEMENS
Control Model: Sinumeric 840D

Dimensions

Machine Depth: 775 mm
Machine Height: 2253 mm
Machine Weight: 1800 kg
Table Load: 10 kg

Movement

Number of Axes: 5
X-axis Travel: 120 mm
Y-axis Travel: 120 mm
Z-axis Travel: 200 mm

Technical Specification

Spindle Speed: 40000 RPM

Additional Information

Additional equipment

Workpiece Measurement: DMG PP-400 Infrared probe
Tool Measurement: RS NC-4
Coolant Conditioning Equipment: KM 10

Machine Benefits

Technical Machine Benefits

Surface area: less than 2 m²
Required space (lxwxh): 4100x3700x2300 mm
Machine on time: 2773 hours
A axis: -10° to 120°
C axis: 360°
Feedrate – feed speed range: up to 10000 mm/min
Repeatability in x / y / z: p8 μm

Extra Information

Workpiece NC Table with Clamping Surface: ø 190 mm Max.Speed of Rotary Axes (A / C): 100 rpm / 150 rpm Positioning Accuracy (A / C Axis): ± 5 Tools Tool Magazine: 60 items, chain magazine Chip-to-Chip Replacement Time: 15 seconds Media Compressed Air Required: 6 bar Average Air Consumption: 20 m³/hour Working Voltage: 400V (N / PE) / 50A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
