DMG - DMC 635 V IT-MIL-DMG-2008-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG DMC 635 V For Sale | gindumac.com

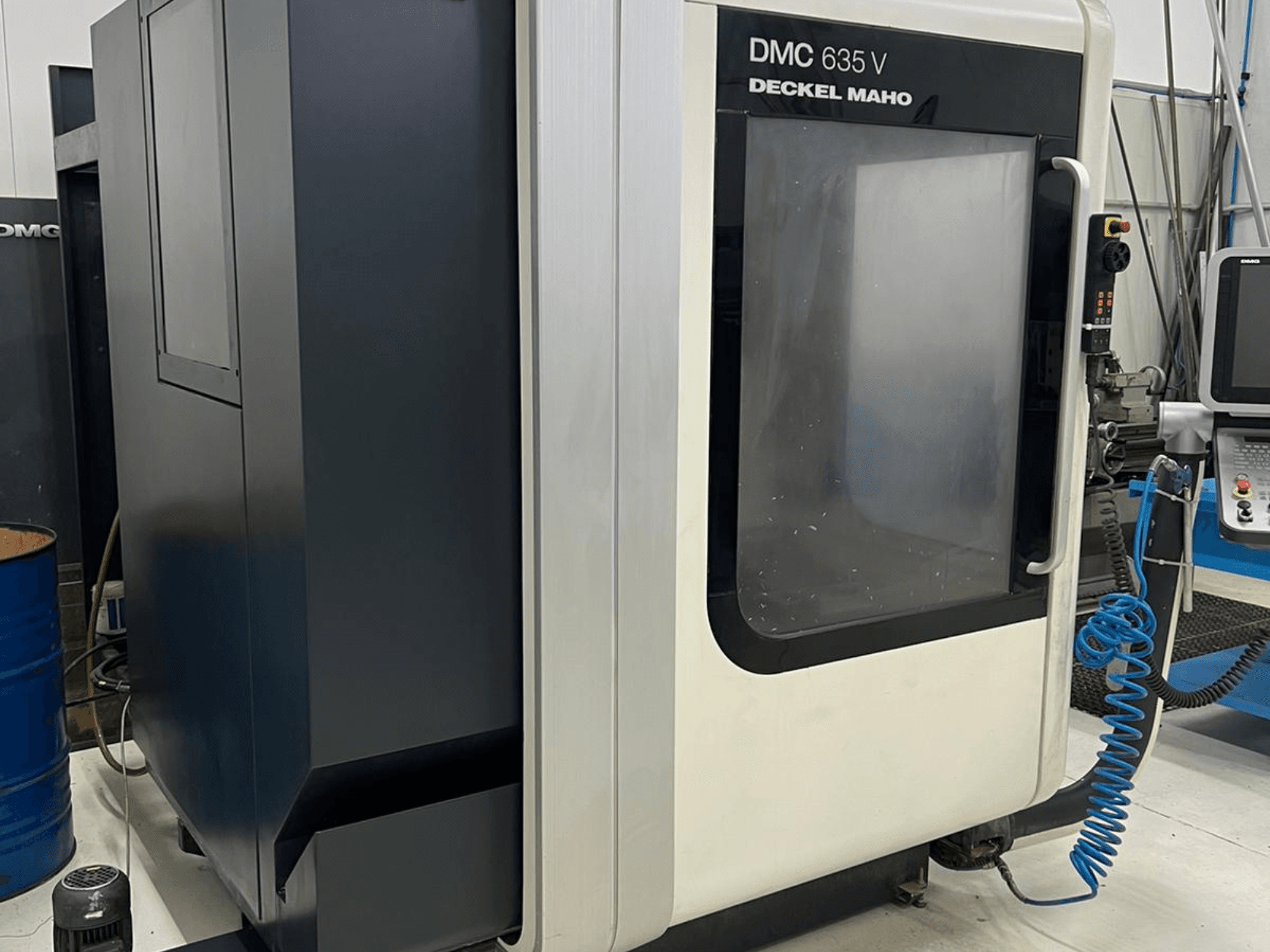

This 3s DMG DMC 635 V vertical machining centre was manufactured in 2008. It features a maximum spindle speed of 14,000 rpm and a powerful spindle with 18.5 kW. The machine has a working area with a table dimension of 560 × 790 mm and can handle workpieces weighing up to 600 kg. If you are looking to get high-quality machining capabilities, consider the DMG DMC 635 V machine we have for sale. Contact us for further details.
Overview
- brand: DMG
- year: 2008
- MODEL: DMC 635 V
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - DMG DMC 635 V
Dimensions
- Machine Height: 2670 mm
- Machine Length: 2275 mm
- Machine Width: 3288 mm
Movement
- Number of Axes: 3
- X-axis Travel: 635 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 460 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 14000 RPM
- Taper Size: SK 40
Additional Information
Distance table surface / spindle nose: 720 mm
Working area
Number of pallets: 1
Table dimensions: 560 × 790 mm
Maximum workpiece weight: 600 kg
Spindle
Maximum torque: 100 / 74 Nm
Tool magazine
Tool holder: SK40
Tool magazine positions: 20
With adjacent tool positions free: 130 mm
With adjacent tool positions occupied: 80 mm
Maximum tool length: 300 mm
Tool change time: 1.6 s
Chip-to-chip tool change time: 6 s
Equipment / features
Electronic handwheel
Air flow through the spindle activated via M function
Working time
Power on: 34,484 h
Spindle running: 25,110 h
Rated power: 35 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
