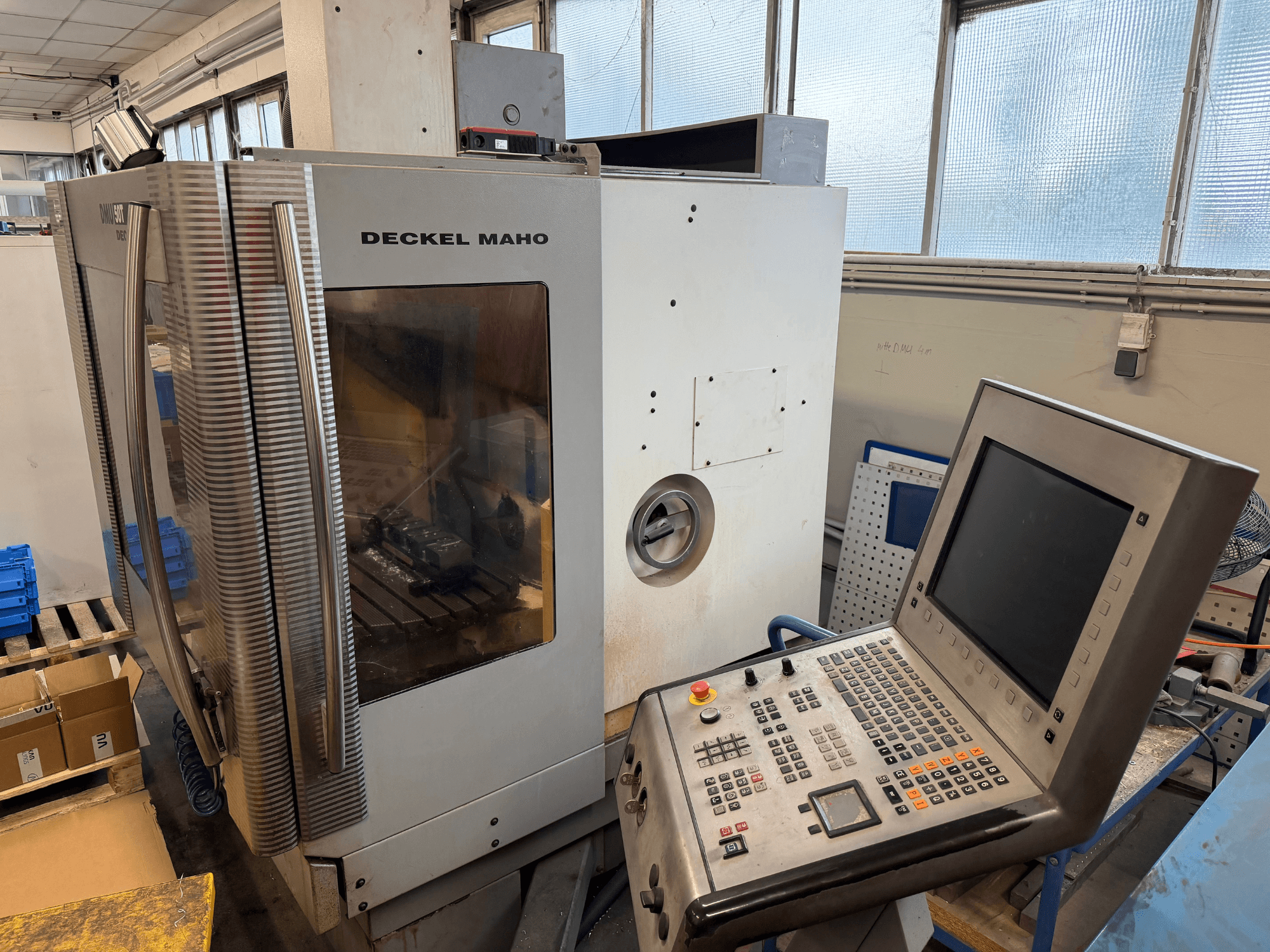

DECKEL MAHO - DMU 50TDE-MIL-DEC-2003-00007

- Main Drive Speed Range: 20 - 9,000 rpm (infinitely variable)

- Main Drive Power (100% ED): 9 kW

- Main Drive Power (40% ED): 13 kW

- Tool Holder: SK 40 DIN 69871

- Pull Stud: DIN 69872 or ISO 7388/2 Type A

- Tool Changer Magazine Capacity: 16 pockets

- Max. Tool Diameter: 80 mm (130 mm with free neighboring pockets)

- Max. Tool Length from Spindle Nose: 290 mm

- Max. Tool Weight (Automatic Change): 6 kg

- Max. Total Tool Weight in Magazine: 80 kg

- Rigid Table Clamping Surface: 700 x 500 mm

- Table Swivel Range (B-Axis): +95° / -10°

- Table Rotary Range (C-Axis): 360°

- Max. Permissible Table Load: 200 kg

- Feed Rate (X, Y, Z): Infinitely variable up to 10,000 mm/min

- Rapid Traverse (X, Y, Z): 12 m/min

- Input Resolution (X, Y, Z): 0.001 mm

- Position Tolerance (X, Y, Z): 0.010 mm

- Operating Voltage: 400 V AC (+6% / -10%), 3N/PE, 50/60 Hz

- Power Consumption (100% ED): 17 kVA

- Nominal Current (100% ED): 28 A

- Recommended Network Fuse: 35 A

- Pneumatic Supply Pressure: 5.5 - 8.0 bar

- Compressed Air Consumption (without Blast Air): 7 m³/h

- Compressed Air Consumption (with Tool Blast Air): 20 m³/h

- Max. Setup Weight (Machine + Workpiece + Tools + Coolant): approx. 3,400 kg

- Included Equipment: Electronic handwheel HR 410 (Optional), central lubrication system, coolant unit, tool list holder on enclosure wall
