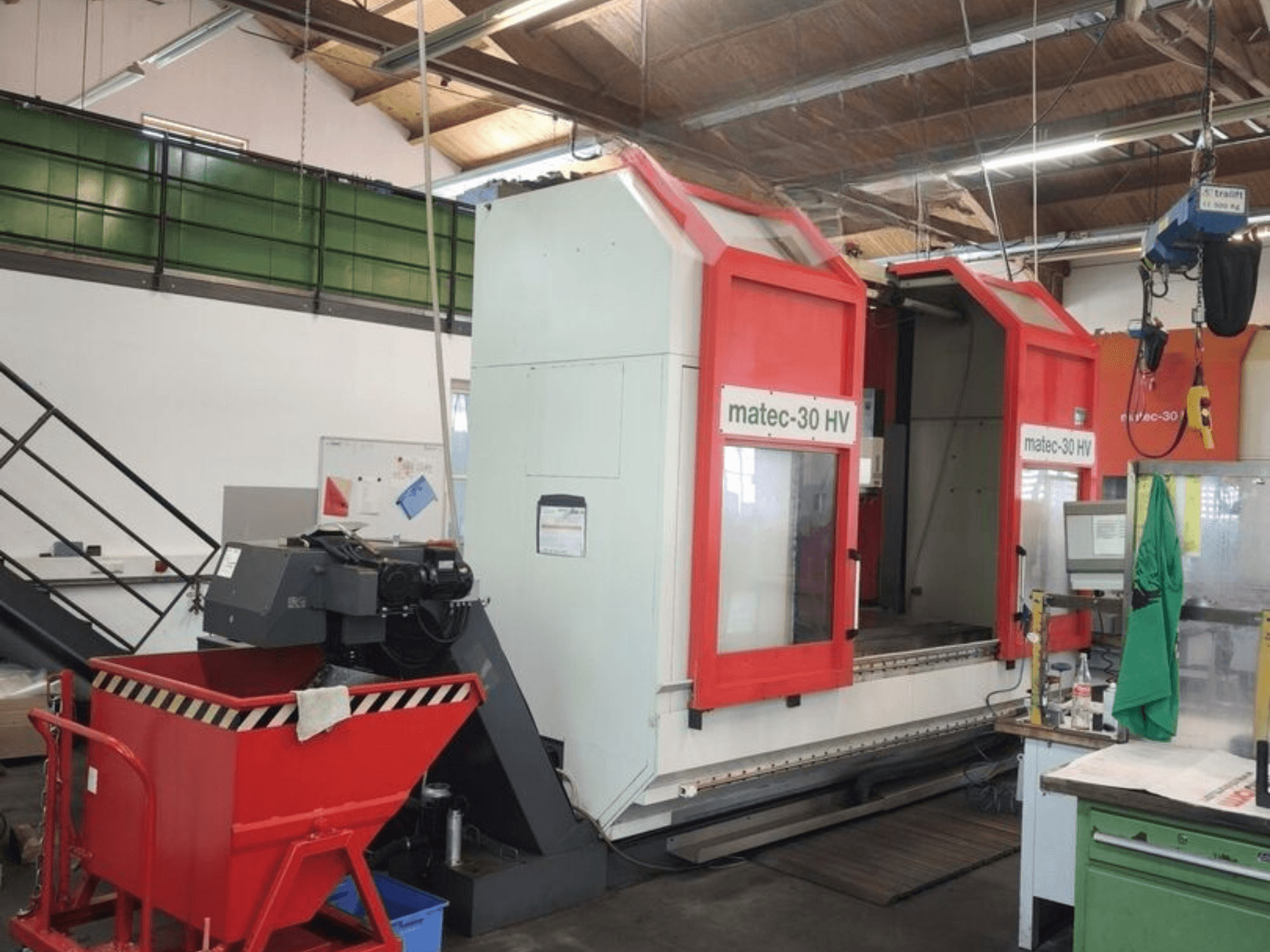

This 3-axis Matec HV30 was manufactured in 2004. It features an X-axis travel of 2,000 mm, Y-axis travel of 800 mm, and Z-axis travel of 800 mm. The machine is equipped with a Heidenhain TNC 426/430PB control and a maximum spindle speed of 15,000 rpm. If you are looking to get high-quality machining capabilities, consider the Matec HV30 universal machining centre we have for sale. Contact us for further details.

Overview

  • brand: Matec
  • year: 2004
  • MODEL: HV30
  • production hours: 31189
  • application type: Milling
  • Location: Germany
  • machine type: Universal Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - Matec HV30

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 426/430PB

Movement

  • Number of Axes: 3
  • X-axis Travel: 2000 mm
  • Y-axis Travel: 800 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Spindle Speed: 15000 RPM
  • Taper Size: SK 40
  • Tool Stations: 36

Additional Information

- Rotary Table Diameter: 800 mm

- Swivel Head Indexing: ±110° in 1-degree increments

- Coolant / Compressed Air Supply: 40 bar through the spindle

- Number of Spindles: 1

- Tool Magazine Slots: 36

- Input Power Type: Three-phase current

- Additional Equipment & Features: D800mm rotary table installed, chip conveyor, paper band filter unit, documentation/manual, continuously variable speed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
