KUNZMANN - WF 4/3DE-MIL-KUN-2001-00001

Name: KUNZMANN WF 4/3
Brand: KUNZMANN
SKU: DE-MIL-KUN-2001-00001
Price: 10721 GBP
Availability: InStock

£ 10,721

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KUNZMANN WF 4/3 For Sale | gindumac.com

Show in original language

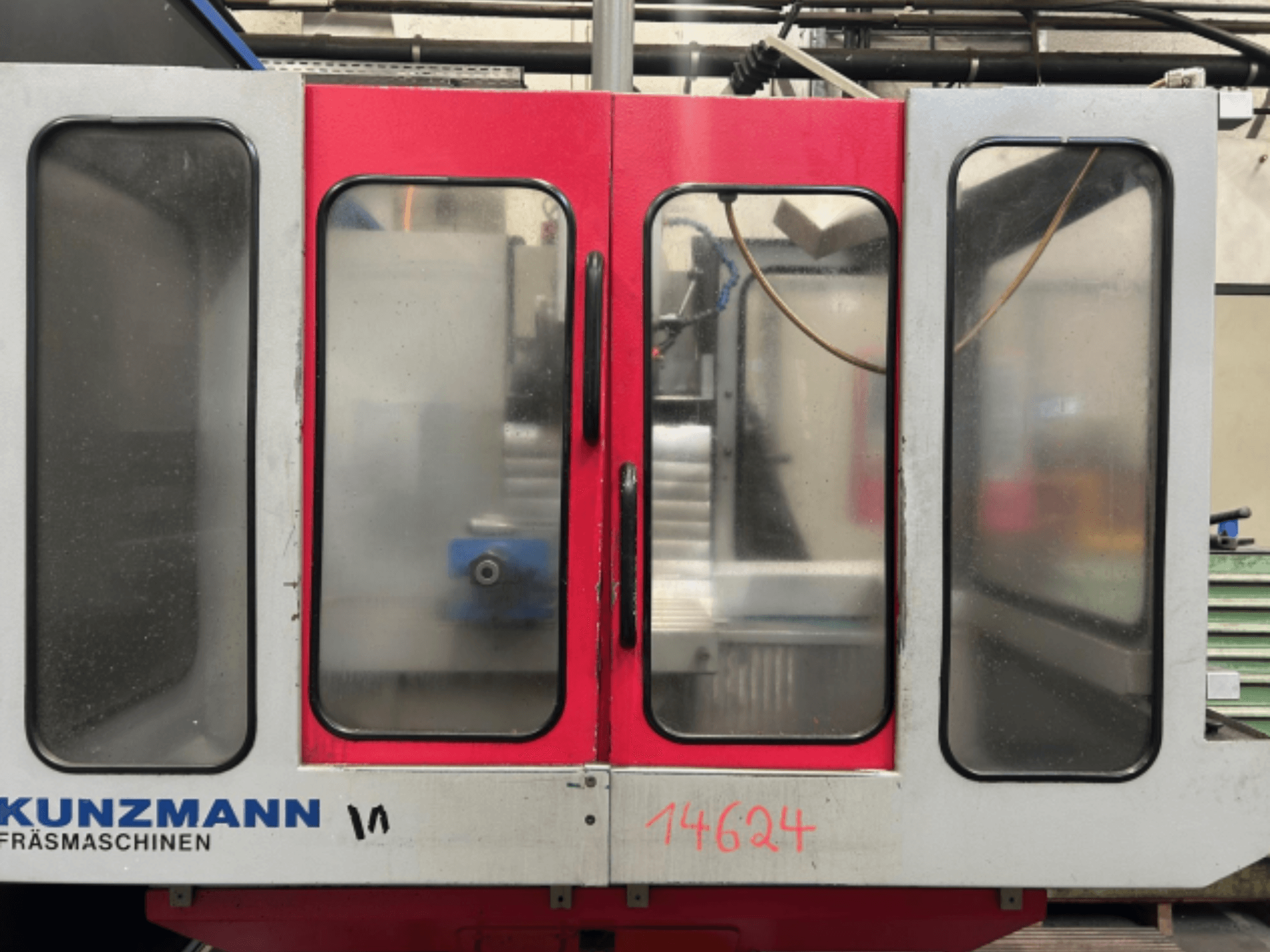

This 3-axis KUNZMANN WF 4/3 was manufactured in 2001. It features a vertical spindle with a swiveling head, CNC-controlled X, Y, and Z axes, and a spindle taper of SK40. The spindle speed ranges from 0 to 4,000 rpm with rapid traverse rates up to 1,000 mm/min on all axes. Consider the opportunity to buy this KUNZMANN WF 4/3 universal machining centre. Contact us for more information about this machine.

Overview

brand: KUNZMANN
year: 2001
MODEL: WF 4/3
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - KUNZMANN WF 4/3

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 124

Movement

Number of Axes: 3

Technical Specification

Spindle Speed: 4000 RPM
Taper Size: SK 40

Additional Information

Swivel head: ±90°

Spindle & drives (INDRAMAT):
- Main spindle motor: 2AD104C-B050A1-CS06-A2N1
- Spindle taper: SK40
- Spindle bore: 22 mm
- Quill diameter: 90 mm
- Quill stroke: 60 mm
Axis drives:
- X / Y / Z motor type: MKD071B-061-GG1-KN
Speed & feed:
- Spindle speeds:
  - Range I: 0–1,000 rpm (stepped)
  - Range II: 1,001–4,000 rpm (stepless)
- Rapid traverse:
  - X-axis: up to 1,000 mm/min
  - Y-axis: up to 1,000 mm/min
  - Z-axis: up to 1,000 mm/min
- Feed force (X/Y/Z): approx. 4 kN
Electrical & control (INDRAMAT):
- Power supply modules:
  - Net filter: NFD03.1-480-030
  - Capacitor module: CZM01.3-02-07
- Controllers:
  - Spindle controller: DKC11.3-100-7-FW
  - Axis controller: DKC01.3-040-7-FW
- Firmware versions:
  - Spindle: ESM 2.1-SMT-02V
  - Axes: ESM 2.1-SMT-02V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
