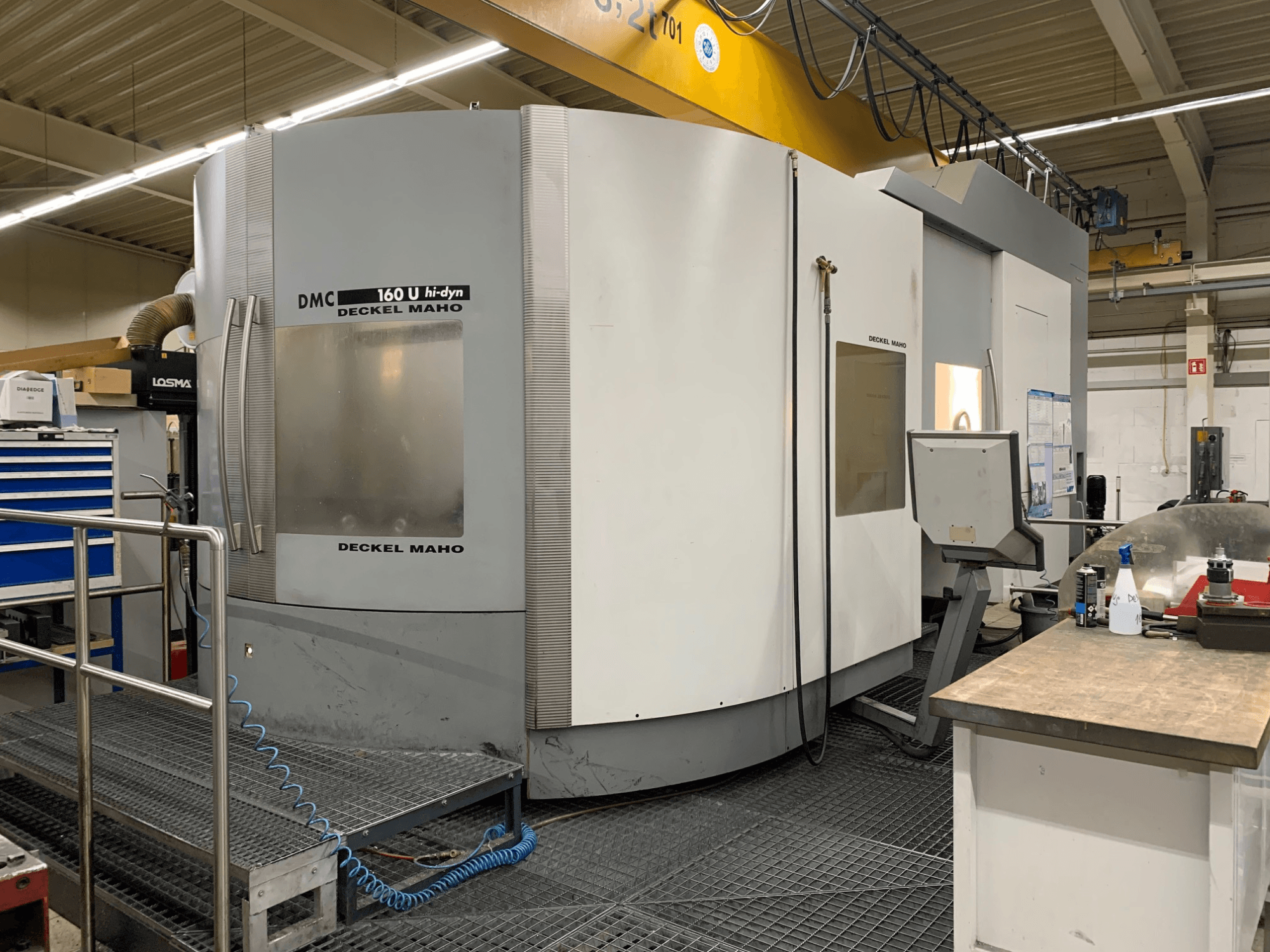

This 5-axis DECKEL MAHO DMC 160 U Hi-Dyn was manufactured in 2002. It features an impressive X-axis travel of 1600 mm, Y-axis travel of 1250 mm, and Z-axis travel of 1000 mm. The machine includes a tool changer capacity of 60 slots and a maximum load of 3000 kg on the pallet table. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMC 160 U Hi-Dyn universal machining centre we have for sale. Contact us for further details.
Overview
- brand: DECKEL MAHO
- year: 2002
- MODEL: DMC 160 U Hi-Dyn
- production hours: 20802
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMC 160 U Hi-Dyn
Control Unit
- Control Brand: HEIDENHAIN
Dimensions
- Machine Height: 4500 mm
- Machine Length: 10500 mm
- Machine Weight: 41500 kg
- Machine Width: 10500 mm
- Table Length: 1250 mm
- Table Load: 3000 kg
- Table Width: 1000 mm
Movement
- Number of Axes: 5
- X-axis Travel: 1600 mm
- Y-axis Travel: 1250 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Spindle Speed: 10000 RPM
- Taper Size: SK 50
- Through-spindle Coolant: Yes
Additional Information
- Tool Changer Capacity: 60 slots in rack magazine
- Gripper Type: Double gripper
- Operating Hours: 78,814 hours (as of 11/2024)
- Program Run Hours: 20,802 hours (as of 11/2024)
- Spindle Hours: 21,295 hours
- Enclosure: Full protection cabin
- Internal Coolant Supply (IKZ): 40 bar through spindle center (theoretical pump capacity)
- Air Blast: Through spindle center, retrofitted (Original DMG)
- Chip Conveyor: Scraper belt conveyor
- Coolant Tank Capacity: 900 liters
- Pallet Changer: Duo-Block pallet changer with 2 pallets
- Pallet Table Surface: 1250 x 1000 mm
- Clamping Grid: 100 x 100 mm, M20 thread
- Milling Head: Universal milling head with controlled B-axis for 5-axis positioning and simultaneous machining
- Universal Touch Probe: Heidenhain TS642
- Calibration Kit: 3D Quick-Set in case
- Operating Mode: Mode 4 capable
- Cleaning Equipment: Wash-down gun with pump
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
