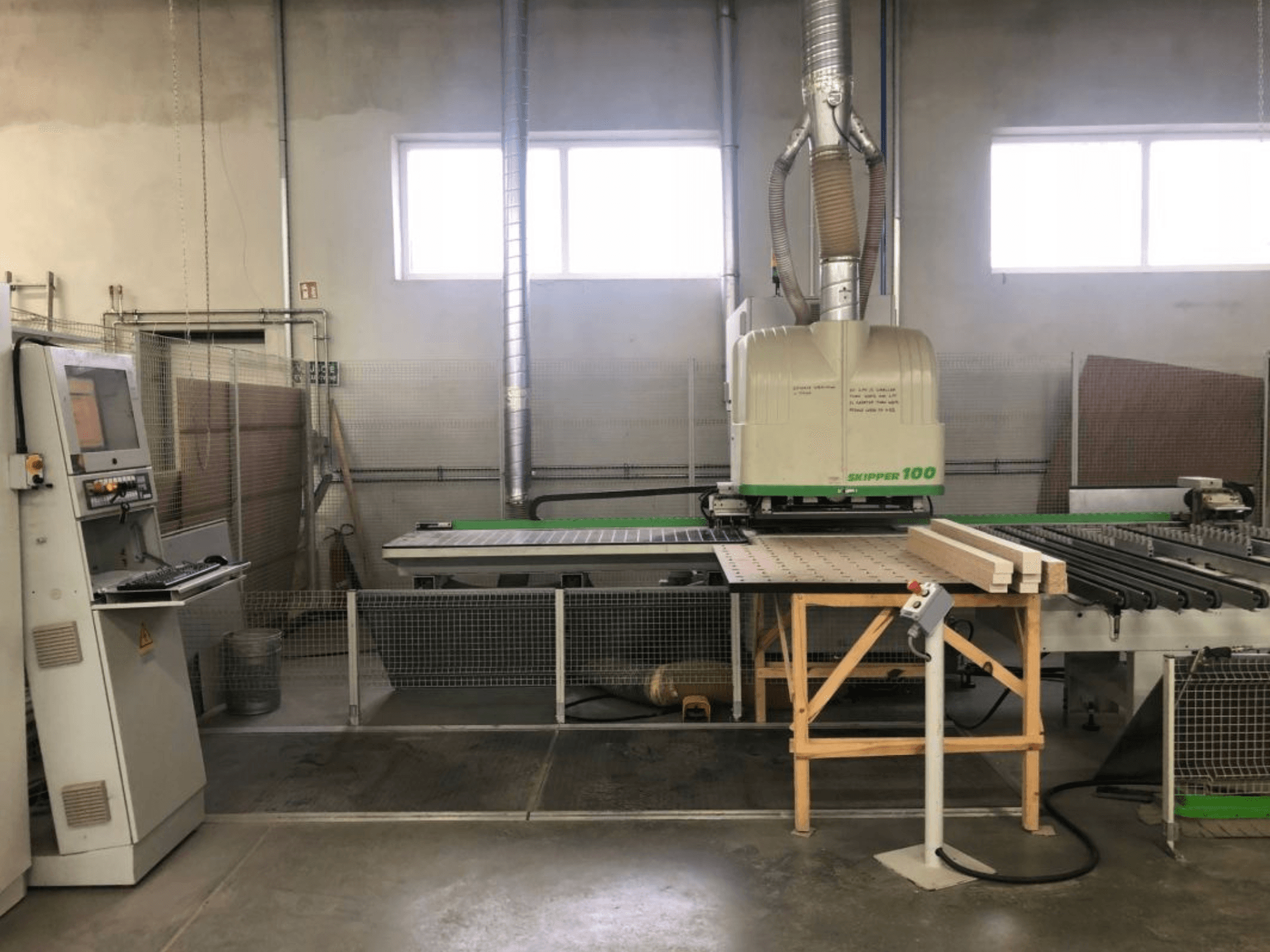

This 3-axis BIESSE Skipper 100 was manufactured in 2009. It features a versatile working range with a maximum length of 3,000 mm and a width of 1,000 mm. The machine is equipped with 78 independent drilling spindles, allowing for efficient vertical and horizontal drilling, as well as routing and grooving capabilities. If you are looking to get high-quality CNC processing capabilities, consider the BIESSE Skipper 100 machine we have for sale. Contact us for further details.
Overview
- brand: BIESSE
- year: 2009
- MODEL: SKIPPER 100
- application type: CNC Wood Machining
- Location: Poland
- machine type: CNC Processing Center
Technical Information - BIESSE SKIPPER 100
Movement
- Number of Axes: 3
Additional Information
Workpiece capacity
Length: 90 – 3,000 mm
Width: 70 – 1,000 mm
Thickness: 8 – 60 mm
Working ranges
X-axis
Vertical drilling: 0 – 3,000 mm
Horizontal drilling (X and Y): 0 – 3,000 mm
Continuous routing: 0 – 2,500 mm
Partial routing: 0 – 3,000 mm
Continuous grooving with saw (X direction): 0 – 2,500 mm
Partial grooving with saw (X direction): 0 – 3,000 mm
Y-axis
Vertical drilling: 0 – 1,000 mm
Vertical drilling with 32 mm system: 32 – 1,000 mm
Horizontal drilling in X: 0 – 1,000 mm
Horizontal drilling in Y: 90 – 1,000 mm
Routing: 0 – 950 mm
Grooving with saw (X direction): 112 – 1,000 mm
Z-axis
Material thickness: 0 – 60 mm
Machine configuration and features
78 independent drilling spindles in two mirrored machining units:
39 spindles in the upper unit
39 spindles in the lower unit
Per machining unit:
29 vertical drilling spindles (19 along X, 10 along Y, 32 mm spacing)
8 horizontal drilling spindles along X (4 with dual output)
2 independent horizontal drilling spindles in X
2 independent horizontal drilling spindles in Y
3.5 kW HSK electrospindle, 6,000 – 18,000 rpm
Upper and lower work (pressure) tables
Upper and lower machining units
Electronic thickness control
Central automatic lubrication
PC-based CNC control (Windows XP 600 with Soft CN)
Safety system
Additional equipment
Roller loading table
Right-side belt unloading conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
