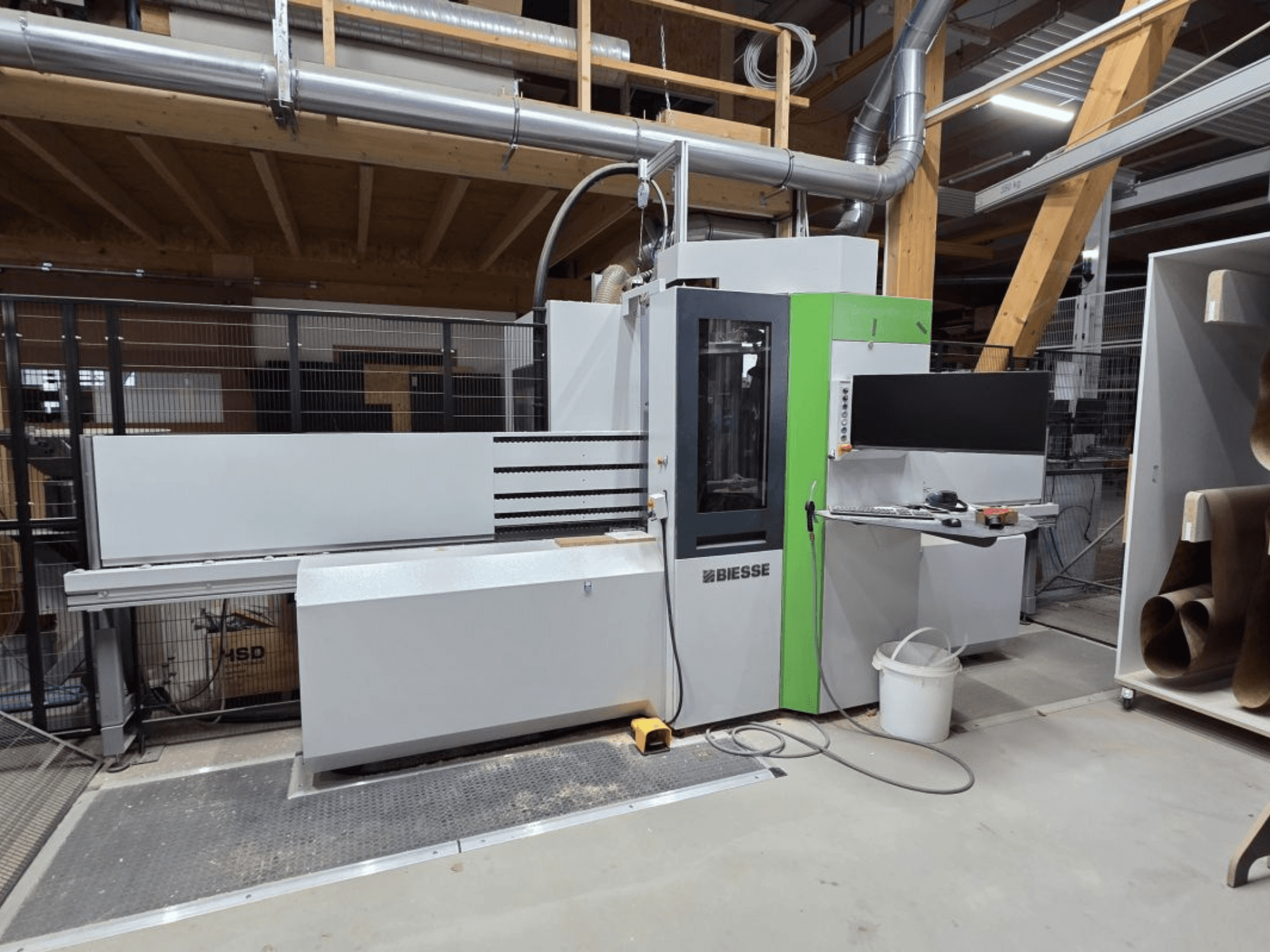

BIESSE - Brema EKO 2.2DE-CNC-BIE-2022-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used BIESSE Brema EKO 2.2 For Sale | gindumac.com
Bearbeitungsbereich X = 3200 mm Y = 1250 mm BH28 Bohrkopf mit einzeln abrufbaren Spindeln 11 KW Elektrospindel mit HSK-F Adapter mit Achse „C“ Torque Winkelsägeaggregat HSK F63 für Sägeblatt Bohr- und Fräsaggregat für Ober- und Unterkante / Stirnbohr- und Fräsaggregat 8-fach Werkzeugwechselmagazin - Tellerwechsler
Overview
- brand: BIESSE
- year: 2022
- MODEL: Brema EKO 2.2
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Processing Center
Technical Information - BIESSE Brema EKO 2.2
Movement
- Number of Axes: 4
Additional Information
used Vertical CNC Machining Center
Brand: Biesse
Type: Brema EKO 2.2
Year of manufacture: 2022
Technical data
Working Area
X = 3,200 mm
Y = 1,250 mm
Workpiece Dimensions
Length (X): 200-3,200 mm
Width (Y): 35-1,250 mm
Thickness (Z): 8-60 mm
Maximum workpiece weight: 50 kg
Workpiece Reference System
The workpiece is pre-positioned in the longitudinal direction (X-axis) in the loading area on the left-hand side of the machine by means of a fixed reference stop mounted on the machine table.
Workpiece Positioning Unit
Workpiece positioning in the X-axis is carried out by two clamping grippers, which securely hold the workpiece during the machining process. Movement is performed by two independently driven servo motors.
Workpiece Support Surface
The workpiece support surface, where the machining units are located, consists of a series of rubber-coated rollers that establish the workpiece reference in the Z-axis.
On the opposite side of the machining units, a pressure system ensures optimum workpiece holding throughout the machining process.
Transformer and electrical connection for supply voltages of 380-415 V (±10%), 50/60 Hz
Air conditioning unit for the electrical control cabinet
bSolid control system
HP Kit for High-Speed Movement of the Workpiece Clamping Grippers
The combined system, consisting of servo motors and precision planetary gearboxes, enables positioning speeds of up to 110 m/min with rapid acceleration ramps.
Foot Pedal for Opening / Closing the Clamping Grippers
BH28 Drilling Head with Individually Selectable Spindles
- 17 vertical spindles (7 in X-axis, 10 in Y-axis)
- 5 horizontal spindles (3 in X-axis, 2 in Y-axis)
- 1 grooving saw unit with fixed cutting direction in the X-axis
11 kW Electrospindle with HSK-F Tool Interface and C-Axis Torque
- 11 kW, 24,000 rpm (S1 continuous-duty operation)
- 6,000-24,000 rpm, programmable via NC
HSK-F63 Angular Saw Unit
- Maximum speed: 8,400 rpm
Drilling and Milling Unit for Top and Bottom Edges / End Drilling and Milling Unit
- Maximum speed: 9,000 rpm
- ER20 collet tool holder
8-Position Tool Changer - Disc-Type Tool Magazine
"Sensitive Surfaces" Kit for Workpiece Transport
Laser Device for Manual QR Code Reading
SOPHIA - IoT Connection
Dowel Insertion Unit for Ø8 × 40 mm Dowels with Glue Injection
Barcode2HOPS with Variables
MultiPost Upgrade
POST Element Splitter
NC-HOPS 7.0
Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
