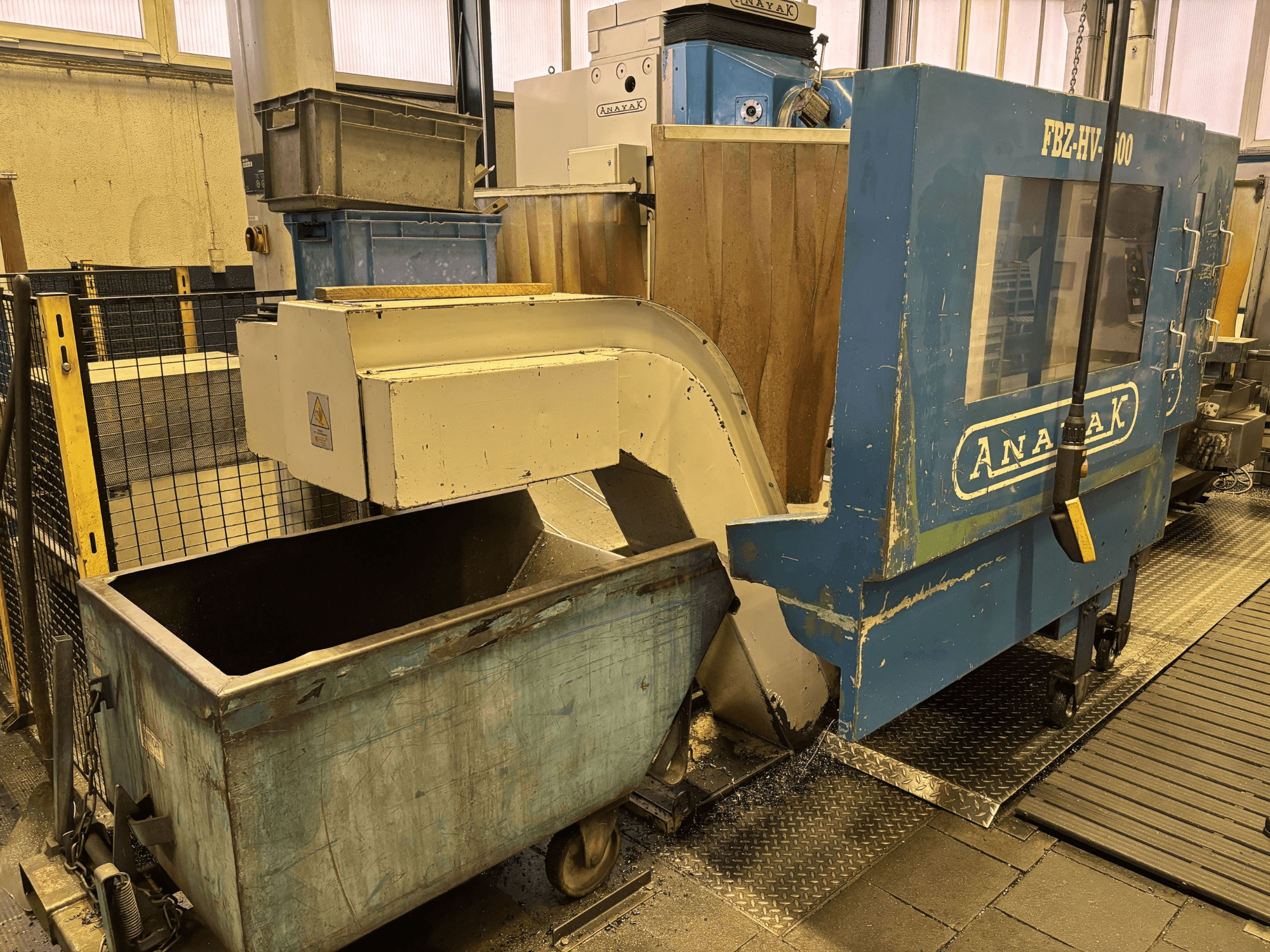

This 3-axis ANAYAK FBZ-HV-2500 was manufactured in 1998. It features a generous X-axis length of 2500 mm, Y-axis length of 900 mm, and Z-axis length of 975 mm. The machine is equipped with multiple heavy-duty Röhm vices and a hinged belt-type chip conveyor system for efficient chip management. If you are looking to get high-quality milling capabilities, consider the ANAYAK FBZ-HV-2500 bed type milling machine we have for sale. Contact us for further details.
Overview
- brand: ANAYAK
- year: 1998
- MODEL: FBZ-HV-2500
- application type: Milling
- Location: Germany
- machine type: Bed Type Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - ANAYAK FBZ-HV-2500
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 426
Dimensions
- Machine Weight: 24000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 2500 mm
- Y-axis Travel: 900 mm
- Z-axis Travel: 975 mm
Technical Specification
- Spindle Speed: 3000 RPM
Additional Information
- Dimensions Clamping Surface: 800 x 800 mm + 1615 x 800 mm
- Power Consumption: 60 A
- Technical Availability: 97.1%
- Planned Performance Hours/Year: 1801 Std.
- Performance Index 2012: 169%
- Net weight: 24t
- Workholding/Clamping Equipment: Equipped with multiple heavy-duty Röhm machine vices on the T-slot table
- Swivel / Indexing Mechanism: Features rotary/swivelling foundations beneath the vices
- Chip Management: Hinged belt-type chip conveyor system discharging into a mobile steel skip/bin
- Coolant System: External enclosure panels with viewing window and localized splash guarding
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
