AgieCharmilles Cut-20 P

Photo Gallery

AgieCharmilles - Cut-20 PDE-EDM-AGI-2016-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used AgieCharmilles Cut-20 P For Sale | gindumac.com

Show in original language

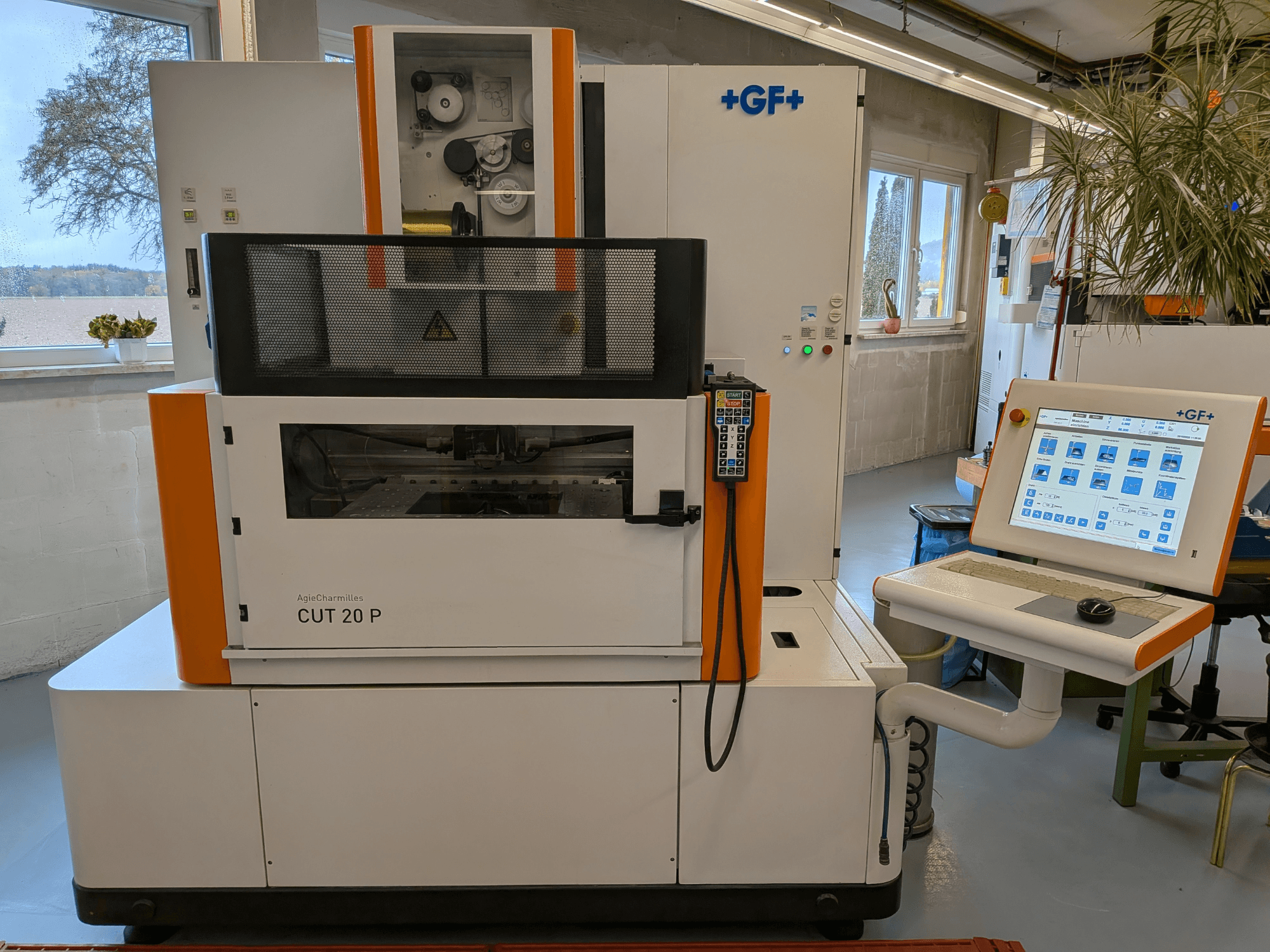

This 3-axis AgieCharmilles Cut-20 P wire EDM machine was manufactured in 2016. It features a power of 11 kVA and operates at a voltage of 380 V. The machine weighs 2,890 kg and comes with complete documentation, manuals, and optional accessories. If you are looking to get high-quality wire EDM capabilities, consider the AgieCharmilles Cut-20 P machine we have for sale. Contact us for further details.

Overview

brand: AgieCharmilles
year: 2016
MODEL: Cut-20 P
production hours: 4560
application type: EDM
Location: Germany
machine type: Wire EDM Machine

Technical Information - AgieCharmilles Cut-20 P

Dimensions

Machine Weight: 2890 kg
Table Length: 600 mm
Table Load: 400 kg
Table Width: 400 mm

Movement

Number of Axes: 3
X-axis Travel: 350 mm
Y-axis Travel: 250 mm
Z-axis Travel: 250 mm

Technical Specification

Max. Wire Diameter: 0.3 mm
Min. Wire Diameter: 0.1 mm

Additional Information

General

Type: Wire EDM Machine
Manufacturer: GF
Model: Cut 20
Year of Manufacture: 2016

Technical Data

Table Size: 600 × 400 mm
Max. Workpiece Size: 820 × 680 × 250 mm
Max. Workpiece Weight: 400 kg
Automatic Wire Threading
Water Bath Cutting

Electrical Data

Phase: 3
Voltage: 380 V
Power: 11 kVA
Current: 17 A
Short-Circuit Current: 10 kA
Frequency: 50 Hz

Additional Information

Machine Weight: 2,890 kg
Total Erosion Time: 4,560 h
Documentation: Complete documentation, manuals and accessories included
Cooling Unit: Not included (machine was operated with a central cooling system)
Condition: Fully functional
Repair History: Wire guide at the end of the machine (wire feed to the wire container) has been repaired due to damage.
Wire Container: Two minor chips
