AgieCharmilles - Agiecut Classic V3KR-EDM-AGI-2007-00001

Name: AgieCharmilles Agiecut Classic V3
Brand: AgieCharmilles
SKU: KR-EDM-AGI-2007-00001
Price: 25730 GBP
Availability: InStock

£ 25,730

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used AgieCharmilles Agiecut Classic V3 | Wire EDM

Show in original language

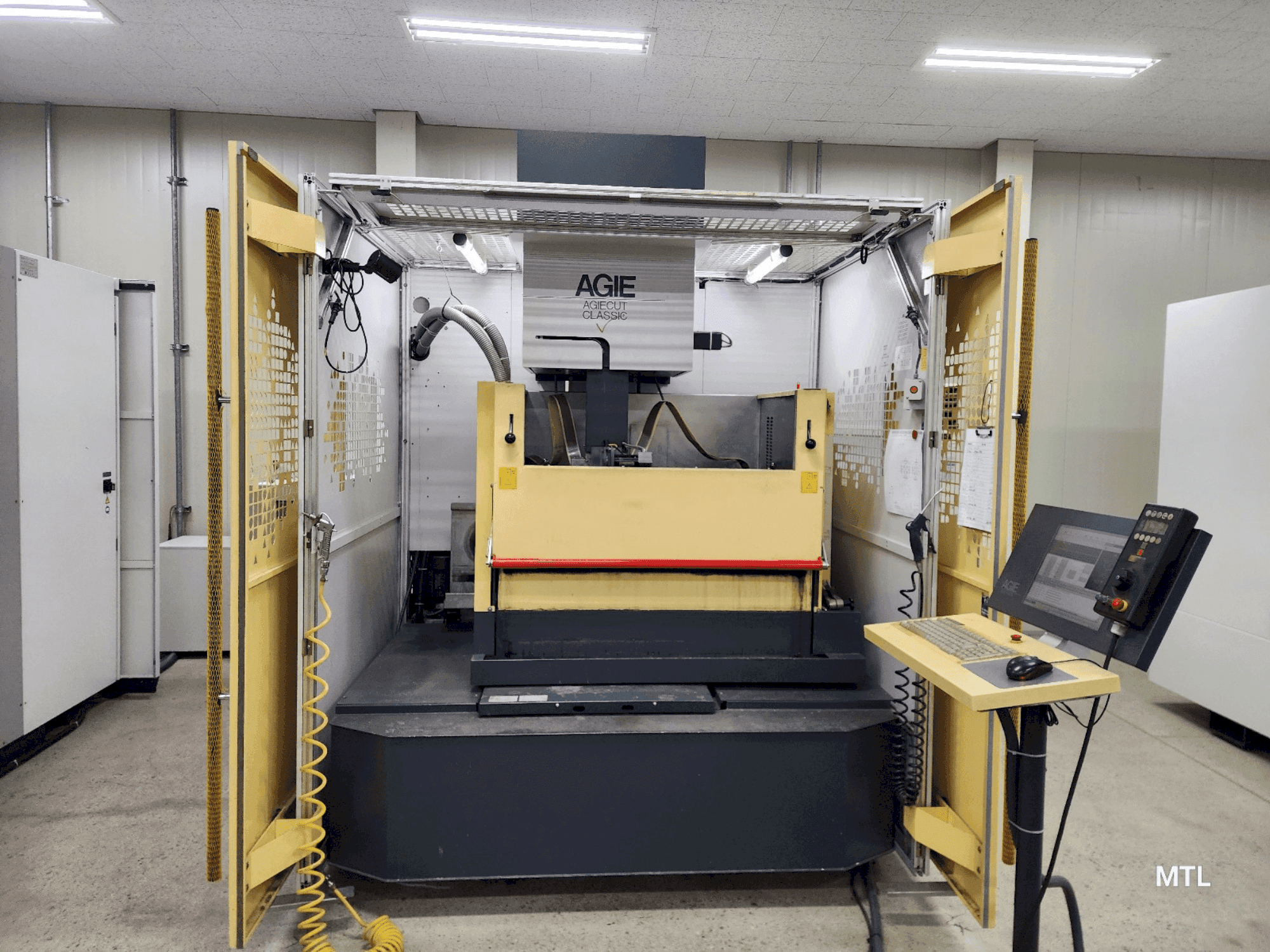

This AgieCharmilles Agiecut Classic V3 was manufactured in 2007. A wire EDM machine, it features dimensions of 1940 × 2300 × 2600 mm and a total weight of 3460 kg. It supports workpiece dimensions up to 1050 × 650 × 420 mm and a maximum weight of 800 kg. The machine offers a taper angle up to ±30° and a dielectric volume of 1000 liters. Contact us for more information about this machine.

Overview

brand: AgieCharmilles
year: 2007
MODEL: Agiecut Classic V3
application type: EDM
Location: South Korea
machine type: Wire EDM Machine

Technical Information - AgieCharmilles Agiecut Classic V3

Dimensions

Machine Depth: 1940 mm
Machine Height: 2600 mm
Machine Weight: 3460 kg

Movement

X-axis Travel: 500 mm
Y-axis Travel: 350 mm
Z-axis Travel: 426 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Taper angle/height: ±30°/100 mm
Workpiece dimensions (lxwxh): 1050 × 650 × 420 mm
Volume of dielectric: 1000 liters
Available wire diameters (standard): 0. 33 – 0. 15 mm
Available wire diameters (optional): 0. 10 – 0. 07 mm
Best surface finish (standard): 0. 2 μm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
